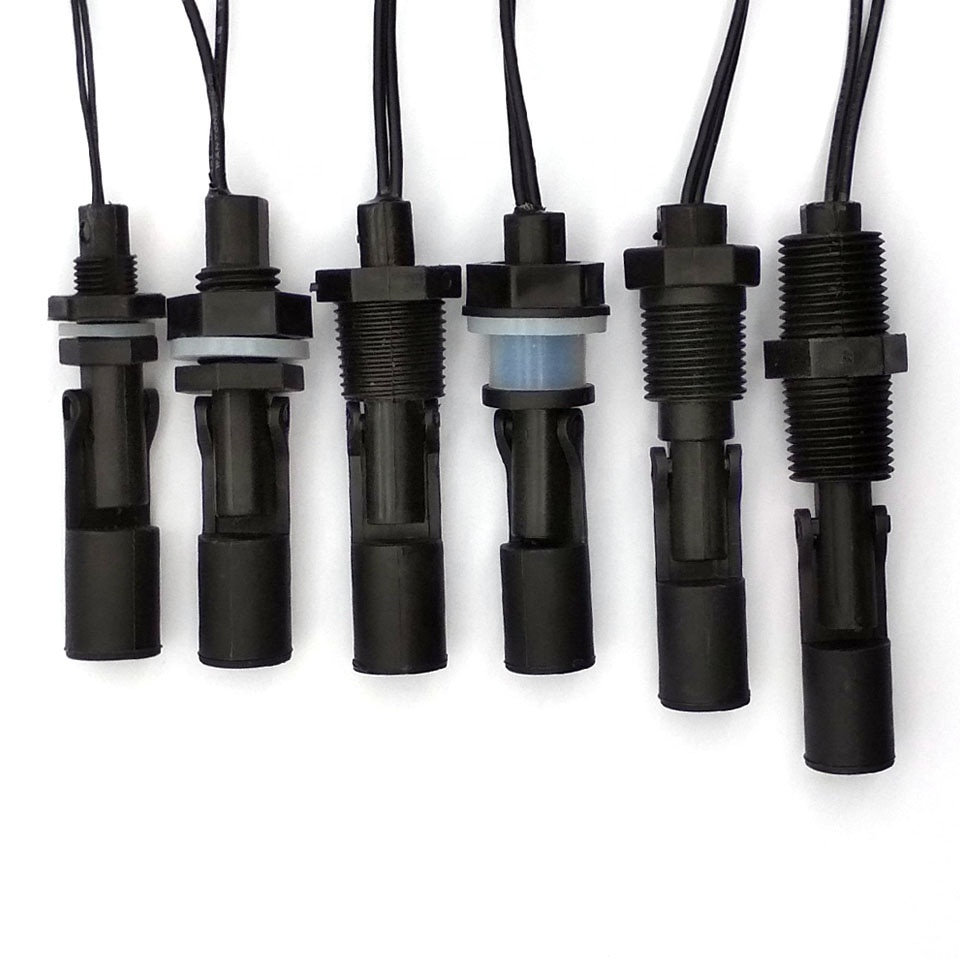

Plastic Vertical Float Switch Water Tank water tank switch

Plastic Vertical Float Switch Water Tank water tank switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $2.5

≥1000 Pieces

US $2

≥5000 Pieces

US $1.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: FuEn

Model Number:: FD-VIW06

Material:: NBR, PVDF, NYLON etc..

Protection grade:: IP65

Operating temperature:: -10~+85℃

Max voltage:: 220VDC

Max contact rating:: 50W

Max current:: 1.0A

Cable length:: 350mm standard length or customized

Application:: Liquid Level Indicator

Certificate:: CE Certificate, RoHs

Theory:: Reed/magnetic switch

Quick Details

Grade:: Industrial

Warranty:: 1YEAR

Place of Origin:: Guangdong, China

Brand Name:: FuEn

Model Number:: FD-VIW06

Material:: NBR, PVDF, NYLON etc..

Protection grade:: IP65

Operating temperature:: -10~+85℃

Max voltage:: 220VDC

Max contact rating:: 50W

Max current:: 1.0A

Cable length:: 350mm standard length or customized

Application:: Liquid Level Indicator

Certificate:: CE Certificate, RoHs

Theory:: Reed/magnetic switch

Product Description

Click Here for OEM Service!

Product Name	horizontal float switch
Material	PP/POM
size	Rod length : 87 MM , Cable length : as your requirements , Terminal /connector : as your requirements
Application	Float level switches are widely used in electronic, electrical, chemical, water treatment, drainage and other industry of level control and alarm.
Payment terms	T/T(with 30% deposit, the balance before shipment); Western Union; PayPal.Trade assurance
Package	packing with bubble , then in the carton .

Product performance description

1.Acid and alkali resistant materials: PP/POM

Other material : Stainless steel ,,PVDF, NYLON, NBR etc..
2.Stainless steel SUS304, SUS316, max working temp.350℃, max proof pressure 60kg/cm2
3.Stainless steel switch body length can reach 120mm~400mm or as your requirements , the length can be adjusted according to your water
tank, switch body is durability.
4.Multiple wires: electrical wire or cable wire, PVC, XLPE, PTFE materials.
5.Multiple installations, dimensions, from M8~M16, 1/8" ~ 1/2",PF/PT/BSP etc..

6.OEM accept : Rod length , working point , cable length, working power , etc .
