Quick Details
-
Place of Origin:
-
Guangdong, China
-
Cable:
-
2x30cm with RG58U
-
Gain:
-
7/10dBi
-
Frequency range:
-
698-960/1710-4000MHz
-
Connector:
-
2XN Female
-
Dimensions of Antenna:
-
300x183x70mm
Quick Details
-
Type:
-
antenna
-
Brand Name:
-
AC
-
Model Number:
-
AC-D7038W13x2-10
-
Place of Origin:
-
Guangdong, China
-
Cable:
-
2x30cm with RG58U
-
Gain:
-
7/10dBi
-
Frequency range:
-
698-960/1710-4000MHz
-
Connector:
-
2XN Female
-
Dimensions of Antenna:
-
300x183x70mm

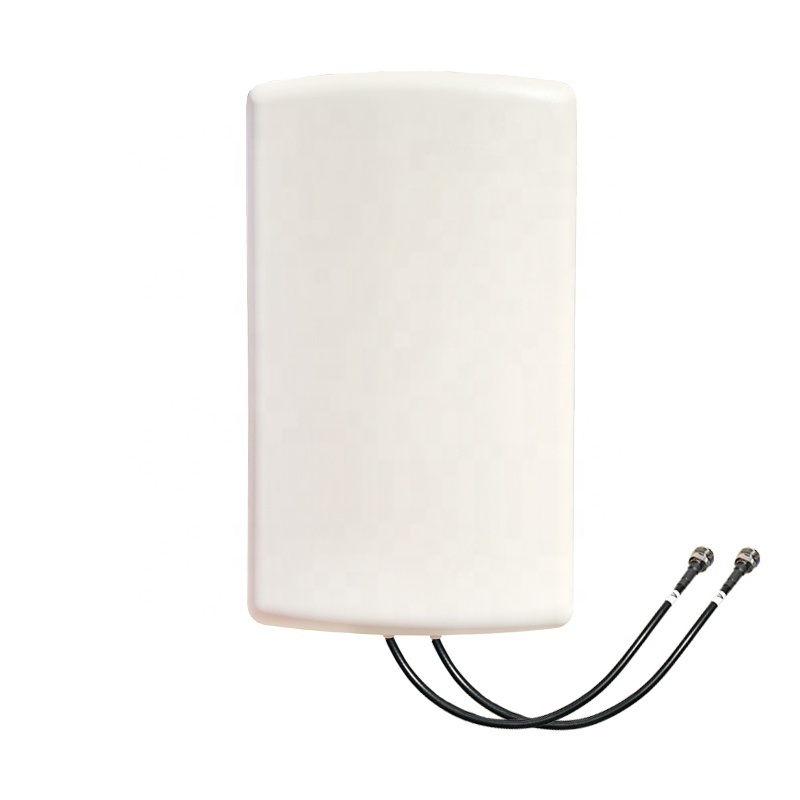

698-4000MHz LTE 4G MIMO Panel Outdoor Antenna With 2x N Connector
| Electrical | |
| Frequency Range | 698-960/1710-2170/2500-2700/3500-4000MHz |
| Gain | 7/10dBi |
| F/B Ratio | 15/20dB |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Horizontal Beam width | 70°/75° |
| Vertical Beam width | 75°/60° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50ohm |
| Connector | 2XN Female |
| Cable Type | RG58U |
| Cable Length | 30CM |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 300x183x70mm |
| Weight | 1KG |
| Operating Temperature | -40℃ to+60℃ |
| Waterproof | IP66 |
| RoHS Compliant | YES |
