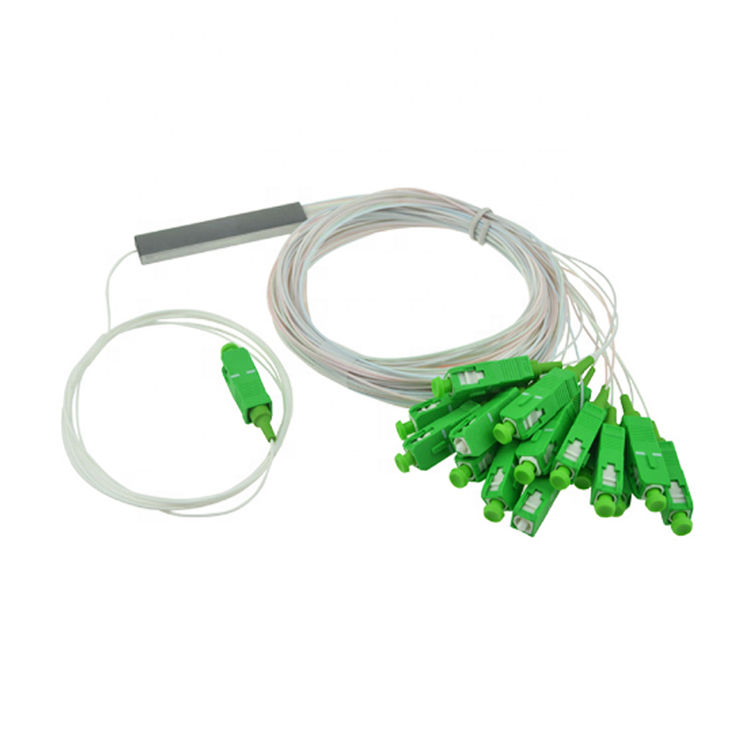

SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter
SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter

SC APC Connector 0.9mm Steel Tube 1*2 1*4 1*8 1*16 1*32 1*64 Fiber Optic Pigtail PLC Splitter

FOB Reference Price: Get Latest Price
≥2 Pieces
US $4
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Tanghu, Tanghu
Use:
FTTH
Warranty Time:
1 Year
Connector Type:
SC/APC
Cable:
0.9mm, 2.0mm, 3.0mm
Pigtail Length:
1m, 1.5m or customized
Wavelength:
1260-1650nm
Service:
OEM ODM
Operating Temperature:
-40~+85℃
Application:
FTTH FTTB FTTX PON CATV

Quick Details

Type:
FTTx Solutions
Model Number:
FOSW1-2, FOSW1-2
Place of Origin:
Shanghai, China
Brand Name:
Tanghu, Tanghu
Use:
FTTH
Warranty Time:
1 Year
Connector Type:
SC/APC
Cable:
0.9mm, 2.0mm, 3.0mm
Pigtail Length:
1m, 1.5m or customized
Wavelength:
1260-1650nm
Service:
OEM ODM
Operating Temperature:
-40~+85℃
Application:
FTTH FTTB FTTX PON CATV
Product Description
Number of Channels
1x2
1x4
1x8
1x16
1x32
1x64
Operating Wavelenth
1260 to 1650
P Level Insertion Loss
4
7.4
10.5
13.7
17
20.3
S Level Insertion Loss
4.2
7.6
10.7
14
17.3
17.3
Uniformity
0.4
0.6
0.8
1
1.2
1.6
PDL
0.2
0.3
0.3
0.3
0.3
0.3
Return Loss
More Than 55
Directivity
More Than 55
Type of fiber
ITUG657A
Operating temperature
-40 to 85
Pigtail length
1m or 1.5m or customized

Features
Low insertion loss
Low PDL
High return loss
Uniform power splitting
Compact design
Wide operating wavelength
Wide operating temperature
Excellent environmental &mechanical stability
Qualified under telcordia GR-1221 and GR-1209

Applications
FTTx (FTTB, FTTH, FTTC)
Passive optical networks (PON)
Local area networks (LAN)
CATV systems
Test equipments
