Quick Details
-
Model Number:
-
XT-13B
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 above
-
Electrical Life:
-
100,000times above
-
Type:
-
12V illuminated toggle switch
-
Rating Load:
-
15A 250VAC / 25A 250VAC
-
Color:
-
Red, Black
-
Contact Form:
-
SPDT,ON OFF ON
-
Certifications:
-
UL TUV CCC CE
-
Terminal:
-
screw terminals
-
Mounting Hole:
-
M12
-
Crust Material:
-
PC Plastic
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XT-13B
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 above
-
Electrical Life:
-
100,000times above
-
Type:
-
12V illuminated toggle switch
-
Rating Load:
-
15A 250VAC / 25A 250VAC
-
Color:
-
Red, Black
-
Contact Form:
-
SPDT,ON OFF ON
-
Certifications:
-
UL TUV CCC CE
-
Terminal:
-
screw terminals
-
Mounting Hole:
-
M12
-
Crust Material:
-
PC Plastic
on off on 12V illuminated toggle switch 1122 type
Features:
1. The current has 10A/15A/16A/25A .
2.Movement way has fixed type and auto-return type.
3.Protection cap for water-proof and oil-proof,is suitable for full series products.
4. Mounting hole: Φ12mm
Technical Specification:
| ITEM | DATA | |
| Rating Load | 15A 250VAC,25A 250VAC | |
| Operating frequency | 30times/min | |
| Insulation resistance | 100MΩ(Initial value) | |
| Contact resistance | 25mΩ(Initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55HZ Amplitude 1.5mm |
| Impact | Durable | 1000m/s |
| Misoperation | 300m/s | |
| Life | Electrical | 100,000times above |
| Mechanical | 500,000times above | |
| Protection degree | IP40 | |
| Operating temperature | -25-80°c | |
| Operating humidity | <85% | |
Terminal Forms:
Mounting Hole & Product Structure:
Dimension Drawing:
SPDT ON-OFF-ON Model:XT-13B :
SPDT ON-OFF-ON Model:XT-13A:
SPDT ON-OFF-ON type XT-13C:
Protection Cap for waterproof:

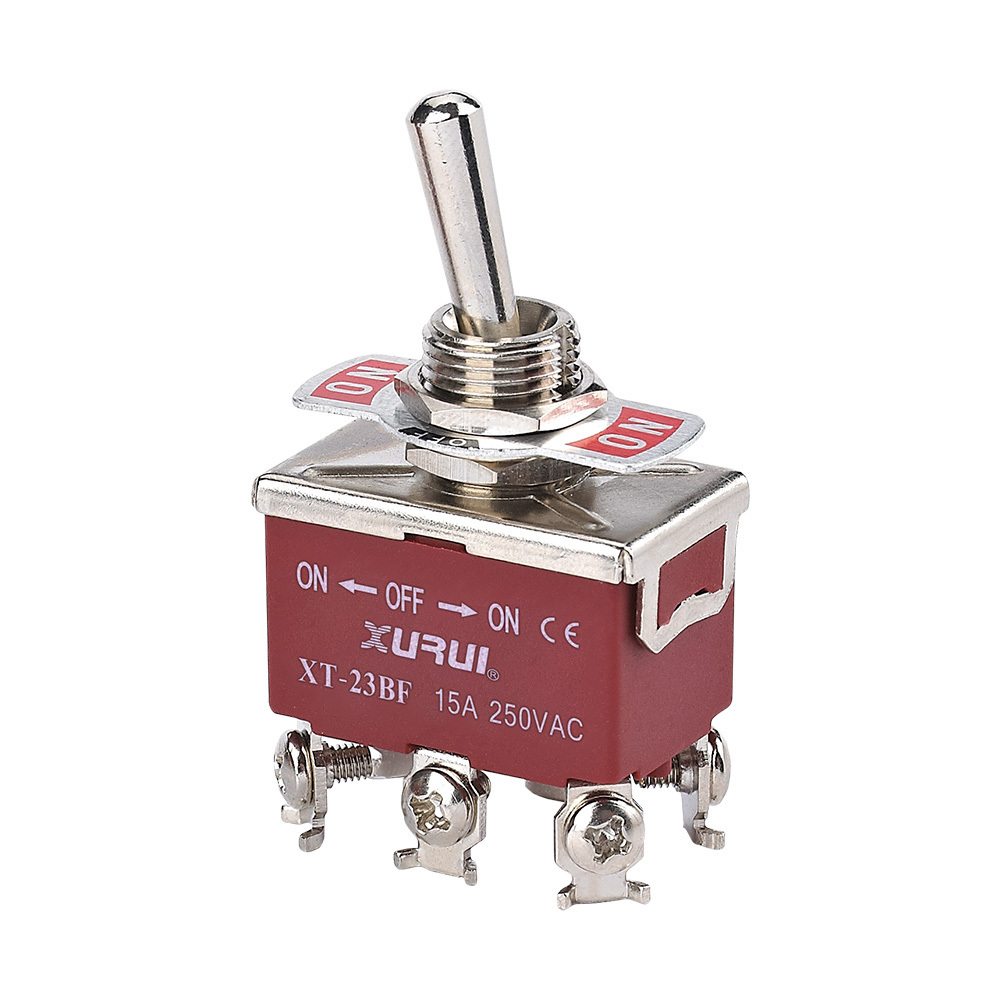

Other Toggle Switch Models:
Certifications: UL(E334724), TUV, CE, CCC,ISO9001:2008.
Established in 2002, Zhejiang Xurui Electronic Co., Ltd is a factory specialized in the research, development and manufacture micro switch, limit switch, toggle switch, foot switch, solid state relay, reed switch, proximity switch and mercury switch.
We have attained many quality certifications like U L, T U V, C E, C C C and others by our strict quality management and perfect after-sale service system. Therefore, our products enjoy very high reputation in the market of America, Mexico, Brazil, Germany, UK, Spain, Turkey, the middle east, Southeast Asia, and other markets.
Our company is taking the quality first as the objective, the perfection as the policy.
It is our invariable purse to provide much better products and perfect service to our customers.
Our Service:
1. Factory supply directly and have competitive price.
2. Short delivery time: stock 2 days, order around 15-20days.
3. New packing design and new product reseach development.
4. Accept to customize products up to specification.
5. Provide prompt service and after-sale service.
FAQ:
1. Are you a factory or trading company ?
We are a factory founded in 2002 and have over 14 years OEM and international trade experience.
2. How do you control the products quality ?
100% Auto inspection machine and manual testing together before packing.
3. Do you have any certification of your company or products ?
We have ISO9001:2008, Products have UL TUV CE CCC ROHS and test report.
4. What is your payment term ?
T/T , L/C at sight, Samples cost can be paid by Paypal, Western Union, Money Gram.
5. Would you accept to use our logo ?
If you have good quantity, we can make OEM and ODM, customized specification.
6. Can I get a sample for reference ?
We are glad to send free samples for your testing, but you may need to pay the express cost.
7. What is your delivery time ?
Normally it take 15 working days for production.
8. What is your warranty time of the products ?
12 months from the shipment date. We will offer replacement if you receive defective or wrong items.
