Quick Details
-
Power:
-
114KW
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
ORIEMAC
-
Maximum Digging Height:
-
7520 mm
-
Maximum Digging Depth:
-
7860 mm
-
Max Digging Radius:
-
5015mm
-
Rated Speed:
-
5.8km/h
-
Rated power:
-
114KW
-
Application:
-
Earth Digging
-
Product name:
-
Hydraulic Excavator
-
Engine:
-
Diesel Engine
-
Color:
-
Orange
-
Location:
-
China Shanghai
-
Feature:
-
Multifuction
-
Packing:
-
Standard Package
-
PAYMENT TERM:
-
30% DEPOSIT + 70% T/T
-
Certification:
-
ISO CE
Quick Details
-
Operating Weight:
-
26000KG
-
Bucket capacity:
-
2.2 / 2.6m3
-
Engine Brand:
-
IMPORTED
-
Power:
-
114KW
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
ORIEMAC
-
Maximum Digging Height:
-
7520 mm
-
Maximum Digging Depth:
-
7860 mm
-
Max Digging Radius:
-
5015mm
-
Rated Speed:
-
5.8km/h
-
Rated power:
-
114KW
-
Application:
-
Earth Digging
-
Product name:
-
Hydraulic Excavator
-
Engine:
-
Diesel Engine
-
Color:
-
Orange
-
Location:
-
China Shanghai
-
Feature:
-
Multifuction
-
Packing:
-
Standard Package
-
PAYMENT TERM:
-
30% DEPOSIT + 70% T/T
-
Certification:
-
ISO CE
Product Description

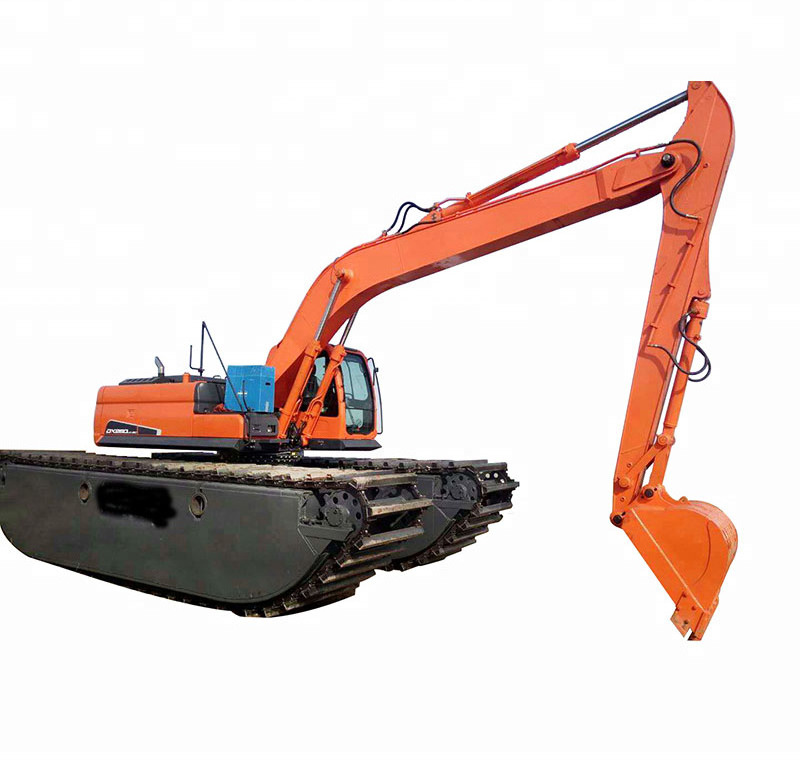

26TON Long Boom Amphibious Excavator Swamp Buggy for Sale
- The medium-sized dredging machine series has an ultra-low grounding specific pressure for efficient operation and surface navigation in wetlands. The lower part is fixed and telescopic, and the transportation is convenient. The whole machine adopts electronically controlled energy-saving technology, with strong power, efficient operation, energy saving and environmental protection. Optional auxiliary pontoon and struts can greatly improve the stability of wetlands and water dredging operations.
| Specification | |
| Operating weight | 26000kg |
| Standard bucket capacity | 0.9m³ |
| Boom length | 5680 |
| Arm length | 2912 |
| Chains | 2 |
| Engine: | |
| Model | lSUZU 6BG1 |
| Type | inter-cooled turbo |
| Power | 114kW/2100rpm |
| Max.torque | 629N m / 1600rpm |
| No.of cylindar | 6 |
| Displacement | 6.494L |
| Hydraulic system | |
| Main pump | |
| Type | Variable plunger pump |
| Max.displacement | 2X107cm3/r |
| Max.flow | 20L/min |
| Working pressure | 32Mpa |
| Hydraulic motor | |
| Slew motor | fixed plunger |
| Travel motor | variable plunger |
| Performance | |
| Slew speed | 11rpm |
| Min.slew radius | 3554mm |
| Max.travel speed high/low | 5.4/3.2km/h |
| Gradeability | 70% |
| Tracktive effort | 279.8kN |
| Max.digging force of bucket | 98.3kN |
| Max.digging force of arm | 63.5kN |
| Ground pressure | 0.14kg/cm2 |
| Oil tank capacity | |
| Fuel tank capacity | 376L |
| Hydraulic tank capacity | 219L |
| Item | |
| Length of pontoon | 8083 |
| Ground clearance of platform | 2002 |
| Overall height | 3826 |
| Boom transport height | 3390 |
| Overall length | 10502 |
| Rear swing radius | 2800 |
| Track gauge | 3643 |
| Overall width | 5133 |
| Width of pontoon | 1490 |
| Min.ground clearance | 1192 |
| Height of pontoon | 1718 |
| Width of upper structure | 2867 |
| Ground length | 4787 |
| Item | |
| Max.digging reach | 9925 |
| Max.digging reach on ground | 9540 |
| Max.digging depth | 5704 |
| Max.vertical digging depth | 5125 |
| Max.digging height | 10577 |
| Max.dumping height | 7810 |
| Min.front slewing radius | 3554 |
