mquina de de laminas de pvc machines for making metal gutters

mquina de de laminas de pvc machines for making metal gutters

FOB Reference Price: Get Latest Price

≥1 Sets

US $9500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V 3phases Or as request

Power:: 11KW

Weight:: 5500 kg

Control system:: PLC(imported Brand)

Shaft material:: 45# High Grade Steel

Roller material:: Cr12 #45 STEEL

Material:: GI PPGI GL PPGL

Cutting blade material:: Cr 12 High Grade Steel

Color:: Client's Request

Main Frame:: 350H Steel

Application:: Building Construction

Certification:: ISO CE

Machine Color:: Cusotmized

Quick Details

Production Capacity:: 8-20m/min

Place of Origin:: Hebei China

Brand Name:: KYT

Voltage:: 380V 3phases Or as request

Power:: 11KW

Weight:: 5500 kg

Control system:: PLC(imported Brand)

Shaft material:: 45# High Grade Steel

Roller material:: Cr12 #45 STEEL

Material:: GI PPGI GL PPGL

Cutting blade material:: Cr 12 High Grade Steel

Color:: Client's Request

Main Frame:: 350H Steel

Application:: Building Construction

Certification:: ISO CE

Machine Color:: Cusotmized

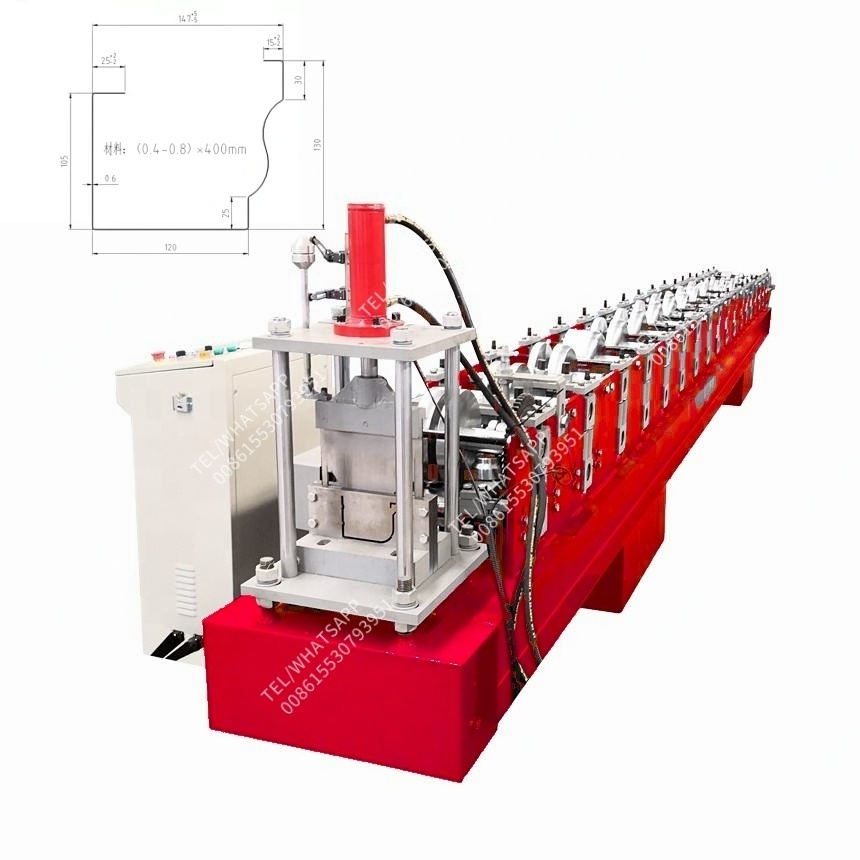

European standard Rain Gutter roll forming machine ISO CE certification

include:

1.Manual/hydraulic uncoiler
2.Roll former
3.Hydraulic cutting system
4.PLC control system
5.Product receive table

European standard Rain Gutter roll forming machine ISO CE certification
1.Formed Material	PPGI,GI,AI,GL		Thickness:0.4-0.8mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		18 rows with a series of vertical rollers
		Diameter of shaft		70mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		920010001200(customize)
		Weight		4.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5 KW
		Hydraulic system power		5.5 KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed is adjustable

Decoiler------Feeding table ------Rolling device------hydraulic cutting------receive table------Plc control box-------oil pump

The application of the gutter:

Kaiyite roll forming machine

Decoiler

We have manual decoiler, electric decoiler, hydraulic decoiler, hydraulic decoiler with loading car.

1.The Manual decoiler is free.

2.The electric decoiler can save manpower and improve efficiency.

3.The hydraulic uncoiler is more stable and more efficient

4.The hydraulic decoiler with loading car is mainly suitable for large roof panel machines

( Can be selected according to customer needs)

Kaiyite roll forming machine

Feeding table

The feeding width can be manually adjusted according to the width of the raw material. The upper and lower circular rollers are designed to make the feeding process more stable. The raw material (steel plate) is processed and manufactured by this machine to ensure that the product is neat, parallel and uniform.

Kaiyite roll forming machine

Rolling device

Number of forming steps: 18 stations

Shaft material: 45# steel with quenched treatment precision machined outer diameter: 70 mm

Roller material: Cr 12 with quenched treatment Transmission type: By chains

Drive motor power: 11 kw

Structure: Independent stand (cast steel)

main body:350H steel

Kaiyite roll forming machine

hydraulic cutting

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Cutting type: Fully automatic non-stop shearing

Power supply: 5.5 kw hydraulic power

Material of blades: Gcr12 mov quenched
Components: It contains one set of cutting tools with one hydraulic tank and one cutter machine.

Kaiyite roll forming machine

PlC control box

Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.

Language: Chinese or English ( based on customer's needs )

Automatic length and quantity measurement operating panel: touching screen and button together

Botou Kaiyite Cold Bending Machinery is a manufacturer dedicated to the design and manufacture of different types of cold roll forming machines. We have been engaged in the machine export industry for 10 years and have reached cooperation with customers from more than 70 countries around the world. . We are committed to establishing long-term and stable cooperative relationships with our customers.

FAQ

Q1 . How do I choose the right machine for me?

1. A machine doesn't just provide a few photos to prove what they can produce 2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.

Q2 . You don't show the product I need, can you manufacture it?

Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.

Q3 . How long can the machine be built?

Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.

Q4 . Why are your prices higher than others?

Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.

Q5 . Do you have after-sales support?

Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee

Q6 . How to get a quotation?

1. Give me the dimension drawing and thickness, it is very important. 2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
