Quick Details
-
Dimension(L*W*H):
-
2300*600*750mm
-
Weight:
-
450 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Diameter:
-
90-130 mm
-
Mobility:
-
Move by hand
-
Drilling hardness:
-
f=6-20
-
Rotary speed:
-
0-60rpm
-
Max. push torque:
-
12000N
-
Motor power:
-
11kw 7.5kw
-
Working pressure:
-
0.7-1.4 Mpa
-
Rod-Dia.Legth:
-
76*1000mm
-
Air consumption:
-
≥12 m3/min
-
Recommended air compressor:
-
LGY-13/8
-
Product name:
-
DTH Drilling Rig
-
Application:
-
Rock Core Drilling Rig
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Voltage:
-
220V/380V/Customization
-
Dimension(L*W*H):
-
2300*600*750mm
-
Weight:
-
450 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Diameter:
-
90-130 mm
-
Mobility:
-
Move by hand
-
Drilling hardness:
-
f=6-20
-
Rotary speed:
-
0-60rpm
-
Max. push torque:
-
12000N
-
Motor power:
-
11kw 7.5kw
-
Working pressure:
-
0.7-1.4 Mpa
-
Rod-Dia.Legth:
-
76*1000mm
-
Air consumption:
-
≥12 m3/min
-
Recommended air compressor:
-
LGY-13/8
-
Product name:
-
DTH Drilling Rig
-
Application:
-
Rock Core Drilling Rig
Products Description

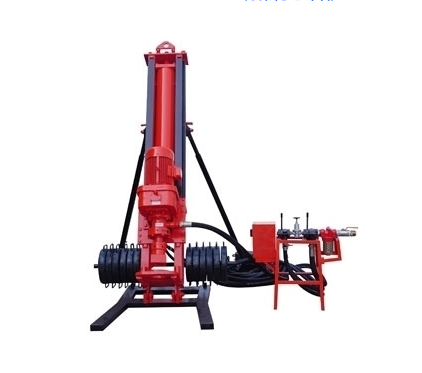

KQD145B
KQD DTH drilling rig is a new type of energy-saving and high-efficiency rock drilling equipment designed by our company, which is widely used for rock drilling in medium and small mines and medium-deep shell holes in road building, national defense, water conservancy and stone works, and is also an indispensable rock drilling equipment for open pit mining, especially for uneven and rugged terrain where other drilling trucks cannot operate normally; the machine has compact structure, convenient operation, fast chiseling speed and high efficiency, and the whole machine is detachable and easy to carry.
Technical parameters
|
Model of drill rig
|
KQD145B
|
KQD150B
|
KQD155B
|
KQD165B
|
|
Drilling diameter
|
∅90-130mm
|
∅90-130mm
|
∅90-130mm
|
∅90-150mm
|
|
Depth of economical
|
≥50m
|
≥50m
|
≥50m
|
≥50m
|
|
Rotary speed
|
0-60rpm
|
0-60rpm
|
0-60rpm
|
0-60rpm
|
|
Push puwer（Max)
|
12000N
|
12000N
|
12000N
|
12000N
|
|
Motor power
|
7.5KW
|
7.5KW
|
7.5KW
|
11KW
|
|
Working pressure
|
0.7-1.4Mpa
|
0.7-1.4Mpa
|
0.7-1.4Mpa
|
0.7-1.4Mpa
|
|
Rod-Dia length
|
76*1000mm
|
76*1500mm
|
76*1500mm
|
76*1500mm
|
|
Recommended air consumption
|
CVFY-13/7
LGY-13/8 |
CVFY-13/7
LGY-13/8 |
CVFY-13/7
LGY-13/8 |
LGY-16/13
LGY-18/17
|
Details Images
Pressure gauge
Filter
drilling frame
