Quick Details
-
Model Number:
-
KVG-24036-DHS
-
Output Frequency:
-
47-63Hz
-
Product Name:
-

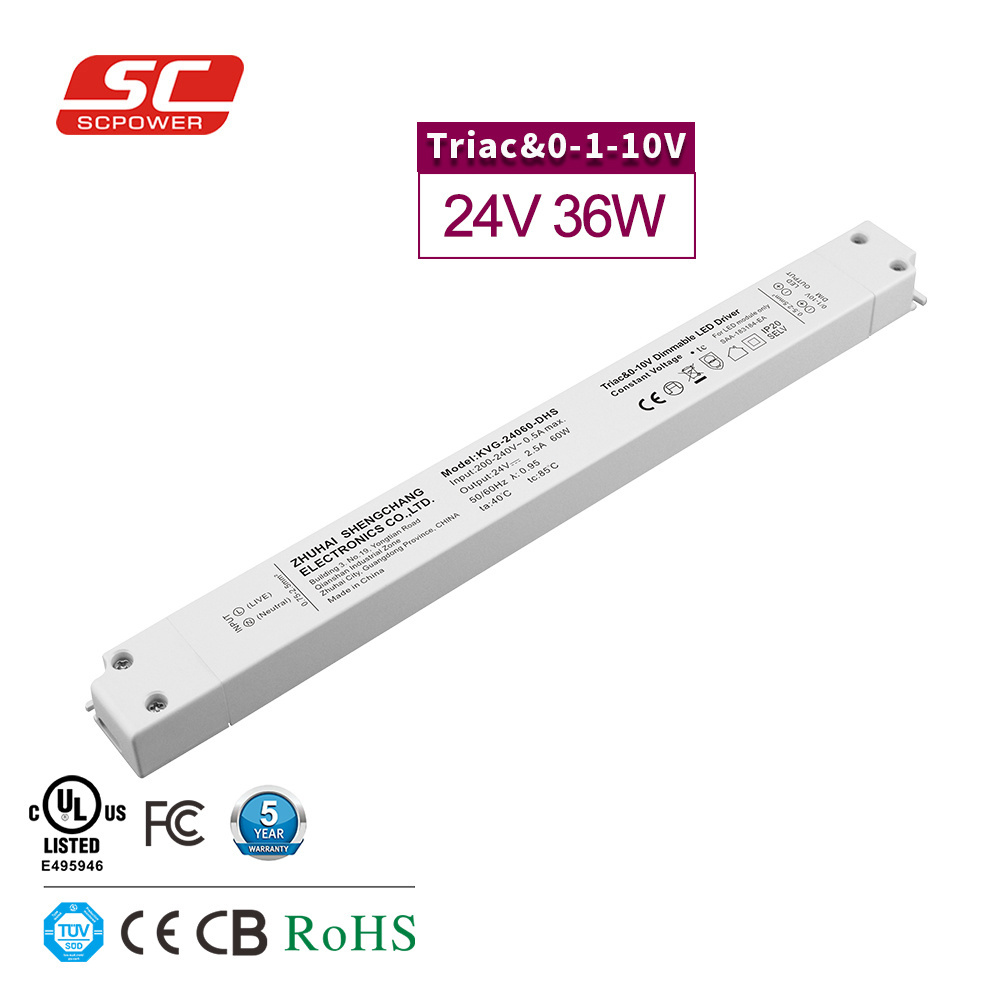

12V 24V 36W Power Supply Triac Dimmable led lighting power supply
-
Type:
-
Constant Voltage Led Driver
-
Certification:
-
TUV-CE, CB, SAA Pending, RoHS
-
Efficiency:
-
80%
-
PFC:
-
>0.99
-
Color:
-
white
-
Size:
-
260*30*18.5(L*W*H)
-
Outer housing:
-
plastic case shell
-
Weight:
-
0.2kg
-
Application:
-
Led Strips
Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SURETRON
-
Model Number:
-
KVG-24036-DHS
-
Output Frequency:
-
47-63Hz
-
Product Name:
-
12V 24V 36W Power Supply Triac Dimmable led lighting power supply
-
Type:
-
Constant Voltage Led Driver
-
Certification:
-
TUV-CE, CB, SAA Pending, RoHS
-
Efficiency:
-
80%
-
PFC:
-
>0.99
-
Color:
-
white
-
Size:
-
260*30*18.5(L*W*H)
-
Outer housing:
-
plastic case shell
-
Weight:
-
0.2kg
-
Application:
-
Led Strips
Title
|
Model |
KVG-12030-DHS |
KVG-24030-DHS |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
± 0.5 % |
||
|
Rated current |
2.5 A |
1.25A |
|
|
Rated power |
30 W |
||
|
Load Regulation |
± 2 % |
||
|
Input |
Voltage Range |
200-240 VAC |
|
|
Frequency Range |
47 - 63H z |
||
|
Power Factor ( Typ. )@ full load |
PF ≥ 0.9 6 /230VAC |
||
|
THD( Typ . ) @ full load |
< 20 % |
||
|
Efficiency ( Typ. )@ full load |
79 % |
78 % |
|
|
AC Current ( Max. ) |
0.25 A |
0.25 A |
|
|
Inrush Current ( Typ. ) |
40.8A,50%,102us |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode,recovers automatically after fault condition is removed |
|
|
Over Load |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over temperature |
100℃±10℃ |
||
|
Protection Class |
I I |
||
|
Others |
Net Weight |
0.2 Kg |
|
|
Dimension |
260*30*18.5 mm ( L*W*H ) |
||
|
packing |
330*275*130 mm/ 50 pcs /CTN G.W.: KG/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
