Quick Details
-
Model Number:
-
HKKC-0001
-
Product Name:
-
12V EU Power Adapter
-
Input:
-
100-240V 50/60HZ
-
Output:
-
12V 0.5A 1A 2A 3A
-
Cable:
-
2464 24awg/22awg/20awg
-
DC connector:
-
5.5*2.1 5.5*2.5.etc (optional)
-
Material:
-
ABS+PC Fireproof Material
-
DC Cable:
-
1m/1.2m/1.5m/1.8m/3m
-
Protection:
-
OCP OVP OTP SCP
-
Packing:
-
1pcs/White box
-
Warranty:
-
1 Years
Quick Details
-
Output Type:
-
DC
-
Place of Origin:
-
Hong Kong S.A.R.
-
Brand Name:
-
HKKUNCAN
-
Model Number:
-
HKKC-0001
-
Product Name:
-
12V EU Power Adapter
-
Input:
-
100-240V 50/60HZ
-
Output:
-
12V 0.5A 1A 2A 3A
-
Cable:
-
2464 24awg/22awg/20awg
-
DC connector:
-
5.5*2.1 5.5*2.5.etc (optional)
-
Material:
-
ABS+PC Fireproof Material
-
DC Cable:
-
1m/1.2m/1.5m/1.8m/3m
-
Protection:
-
OCP OVP OTP SCP
-
Packing:
-
1pcs/White box
-
Warranty:
-
1 Years
12V 2A Power Supply AC Adapter, AC 100-240V to DC 12 Volt Transformers, 2.1mm X 5.5mm Wall Plug
|
INPUT/OUTPUT SPECIFICATIONS: |
|
|
Input Voltage: |
AC 100V-240V,50/60Hz |
|
Range Voltage: |
AC 90V-264V,47/63Hz |
|
Output Power: |
12W |
|
Output Voltage: |
3V-24V |
|
Output Current: |
0.5A-3A |
|
Over Current Protection: |
120% Min |
|
Over Voltage Protection: |
150% Min |
|
Short Protection: |
Auto Recovery |
|
Load Regulation: |
±5% |
|
GENERAL SPECIFICATIONS: |
|
|
Operating Temperature: |
0 ~ 40°C |
|
Operating Relative Humidity: |
5 ~ 95%RH |
|
Storage Temperature: |
-20 ~ 85 °C |
|
Withstanding Voltage: |
AC 3000V/Min |
|
|
(between Input & Output),10mA(Max.) |
|
Insulation Resistance: |
DC500V 100MΩ(Min.) |
|
|
(between Input & Output) |
|
Efficiency: |
70% Min |
|

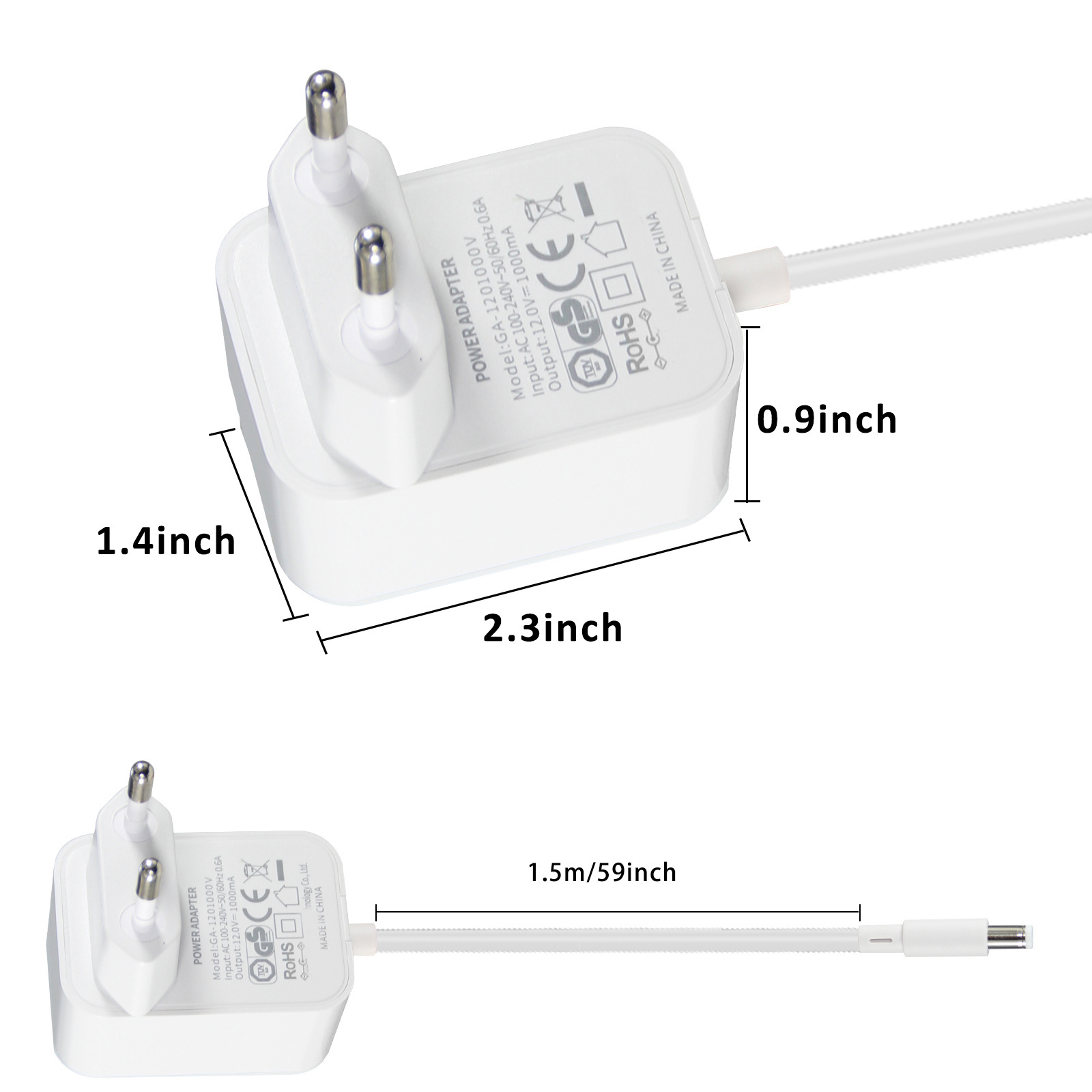

size: |
52*41*25mm(L*W*H) |
