Quick Details
-
Brand Name:
-
Wanbao
-
Use:
-
outdoor/indoor
-
Warranty Time:
-
1 year
-
No. of Fiber:
-
1-2 way
-
Output power:
-
70dBμV(±10 dBμV)
-
Input power:
-
-8dBm~+2dBm
-
MGC Attenuation adjustable::
-
20dB
-
Application:
-
GPON/EPON network
-
Wavelength:
-
1310-1550nm
Quick Details
-
Type:
-
WDM
-
Model Number:
-
FTTH-OR19 Optical receiver
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Wanbao
-
Use:
-
outdoor/indoor
-
Warranty Time:
-
1 year
-
No. of Fiber:
-
1-2 way
-
Output power:
-
70dBμV(±10 dBμV)
-
Input power:
-
-8dBm~+2dBm
-
MGC Attenuation adjustable::
-
20dB
-
Application:
-
GPON/EPON network
-
Wavelength:
-
1310-1550nm

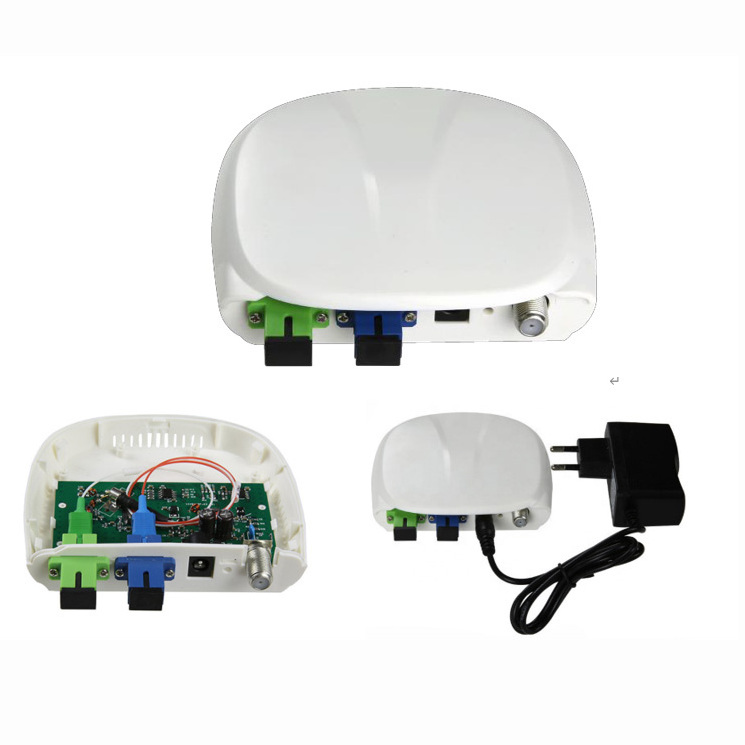

DESCRITION
The machine uses low-power photodetectors, GaAs and optical AGC technology to meet the needs of fiber-to-the-home CATV reception.
Among them WS-FTTH-OR19 with WDM as the main push product, is a home-made equipment that is tailored to realize triple play
Among them WS-FTTH-OR19 with WDM as the main push product, is a home-made equipment that is tailored to realize triple play
FEATURE
* RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal
satisfies-10dBm reception
* With light input AGC function (AGC range can be customized)
* Anti-frequency surge protection device, GaAs amplification chip
* Low-power design, high-efficiency switching power supply ensures high reliabilityand high stability of the power supply. The overall power consumption is less than 2W, with optical detection circuit
* Can be built-in WDM to realize single-fiber home (1490/1310/1550nm) tri-network convergence application
* FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface(customizable according to customer requirements)
* Multi-stage lightning protection devices (TVS transient suppression diodes) and lightning protection systems ensure the safe operation of the equipment
* Output power supply can be achieved
|
Technical parameters
|
|
|
|
Received wavelength
|
1200~1600nm&1550nm
|
|
|
Input optical power
|
0dBm~-10dBm(Analog)&0dBm~-18dBm(Digital)
|
|
|
Light reflection loss
|
＞45 dB
|
|
|
Optical connector form
|
FC/APC&SC/APC&FC/PC&SC/PC
|
|
|
Frequency Range
|
47~1006 MHz
|
|
|
In-band flatness
|
±1dB@47~ 1006 MHz
|
|
|
RF output reflection
|
≥16dB@ 47~550MHz;≥14dB@550~1006 MHz
|
|
|
Output level
|
≥80dBuV(AGC:@-9~+0dBm，Pin=0dBm)
|
|
|
RF output impedance
|
75Ω
|
|
|
AGC range
|
（0~-9）dBm
|
|
|
Carrier to Noise Ratio (Note 1)
|
≥51dB
|
|
|
CTB (Note 1)
|
≥65dB
|
|
|
CSO (Note 1)
|
≥62dB
|
|
|
Host voltage
|
DC5V
|
|
|
Adapter voltage
|
AC90V~145V or AC145V~265V
|
|
|
Infeed voltage
|
DC5V
|
|
|
Operating temperature
|
-20℃ ~+45℃
|
|
|
Power consumption
|
＜2W
|
|
|
Package Size
|
315*242*110mm(10 set)
|
|
|
FCL product weight
|
1.78kgs（10 set）
|
|
PACKAGE
