Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T900
-
Warranty:
-
1 Years
-
product:
-
tire changer machine
-
Color:
-
blue or customized
Quick Details
-
Motor Power:
-
0.75/1.1KW/0.55KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V-415V,50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T900
-
Warranty:
-
1 Years
-
product:
-
tire changer machine
-
Color:
-
blue or customized

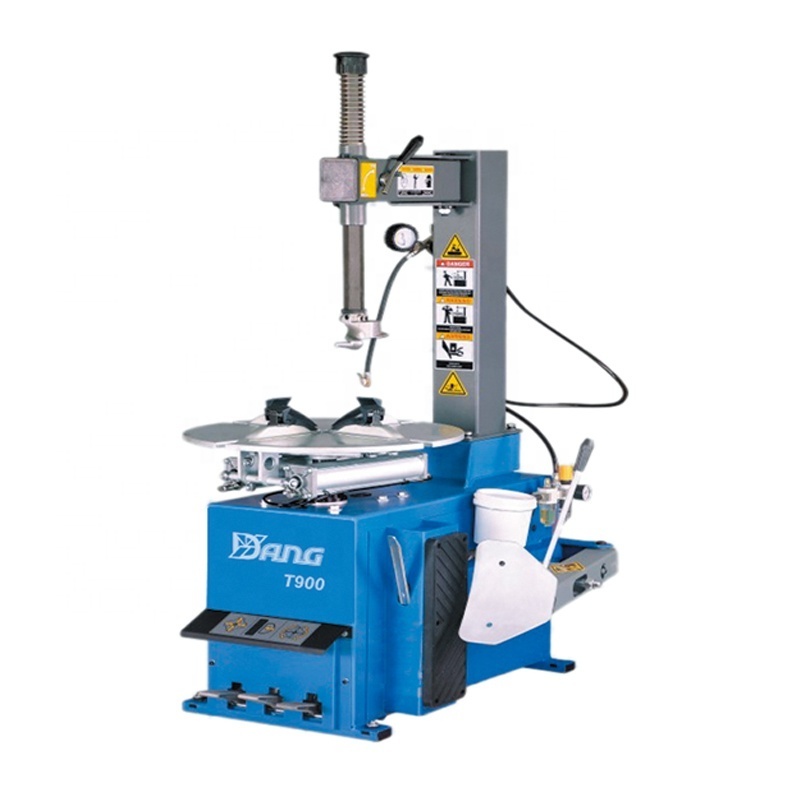

1. Pictures of tire changer
2. Main features of tire changer
1. Semi-automatic tyre changer, be suitable to small car repair workshop.
2. Clamp jaw made by USA8640 alloy steel, high strength, wear resistant and anti-rust.
3. Integrated demounting and mounting.
4. Adopt 40A switch, pure silver of contactor, long service life.
5. High alloy mounting head, good wearing capacity.
3. Specifications
Motor power--------------- 0.75/1.1KW
Rim Clamping outside-----------10"-18"
Rim Clamping inside-------------12"-21"
Max. tire diameter-------------38” (960mm)
Max. tire width-----------------12”(305mm)
Rotating speed ---------------6r/min
Working pressure------------8-10bar
Bead breaker force----------2500kg
Power supply-----------------100V-415V,50/60HZ
N.W-----------------------------200kg
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
