300x150mm Fiber reinforced plastic FRP GRP Fiberglass cable tray Channel Cable Tray

Cable tray system is made up of cable tray, cable tray bend, bracket, corbel, accessories etc. FRP Cable Tray is the use of fiberglass cloth, epoxy resin, curing agent, flame retardant additives such as anti-corrosion material drawn through the heated mold forming, and then Complete with all the necessary fittings such as 3 way tee sections, 4 way cross sections, rising internal and external 90 & 45 degree bends, left & right hand horizontal bends, reducers, couplers, support and anchoring systems.
FRP Fiberglass cable tray is a brand new innovational product,With anti-corrosion, insulation, cost competitive and other notable feature of high-strength, FRP cable tray has become the best replacement for iron cable tray in explosive, acid, alkali environment to run your electrical cable and instrumentation pipe work.

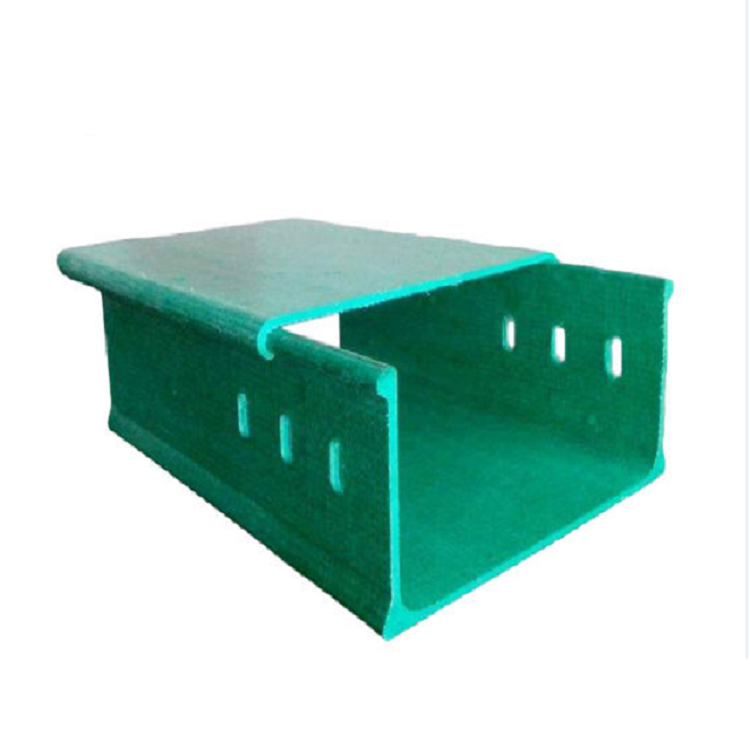

FRP Channel Type Cable Tray

FRP Ladder Type Cable Tray

A complete FRP cable tray is composed of straight, horizontal bend, horizontal tee, horizontal cross, straight reducer, left reducer, right reducer, vertical outside bend, vertical inside bend connected with splice plates, clamps, brackets, etc.
OUR FRP Cable Trays are suitable for indoor & outdoor use in all climatic conditions. They may be horizontally laid as in a cable channel along with roof beams. Alternatively FRP Cable Tray may be vertically laid along walls or on structure. The cable Trays should be supported on M S wall bracket or hanger. Separate support should be provided for accessories like elbows, tees cross joints etc. Maximum span between supports should be 2.0 Meters to limit deflection.

Our plant founded in 1992 with annual capacity of 60000 tons, is located in biggest FRP production base of China - Hengshui City .With high quality and reliable and professional service, our frp products have been exported to all over the world including USA, Japan, Brazil, Germany, Egypt, India, Malaysia and won good fame and trust from new and old clients. Meantime we have made good cooperation with many firms of top 500 of the world, such as BAYER, BASF, Rohm and Haas, DOW Chemical, Fluor, etc.

A: We are a company with trading company and factory together. Our trading company is named Hengshui Aoliande Trading Co., Ltd and factory named Hengshui Jiubo Composites Co., Ltd.

A: For FRP products, all dimesion can be customized. We can make it per client's requirement.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls send inquiry to us directly.
