Date:
August 24, 2019
Location:
Tianhuajing National Forest Park
Live audience:
over 6000
Audio Equioment:
FOH:
20pcs dual 12-inch line array speakers #LAL
12pcs dual 10-inch line array speakers
#
LAM
Subwoofer:
12pcs dual 18-inch inverted subwoofer speakers
#
S28
8pcs 18-inch cardioid subwoofer speakers
#
LAM-S2
Monitor:
8pcs 15-inch coaxial stage monitor
#
CM1
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LAM
-
Product name:
-
1000W line array speakers professional 3-way line array sound system
-

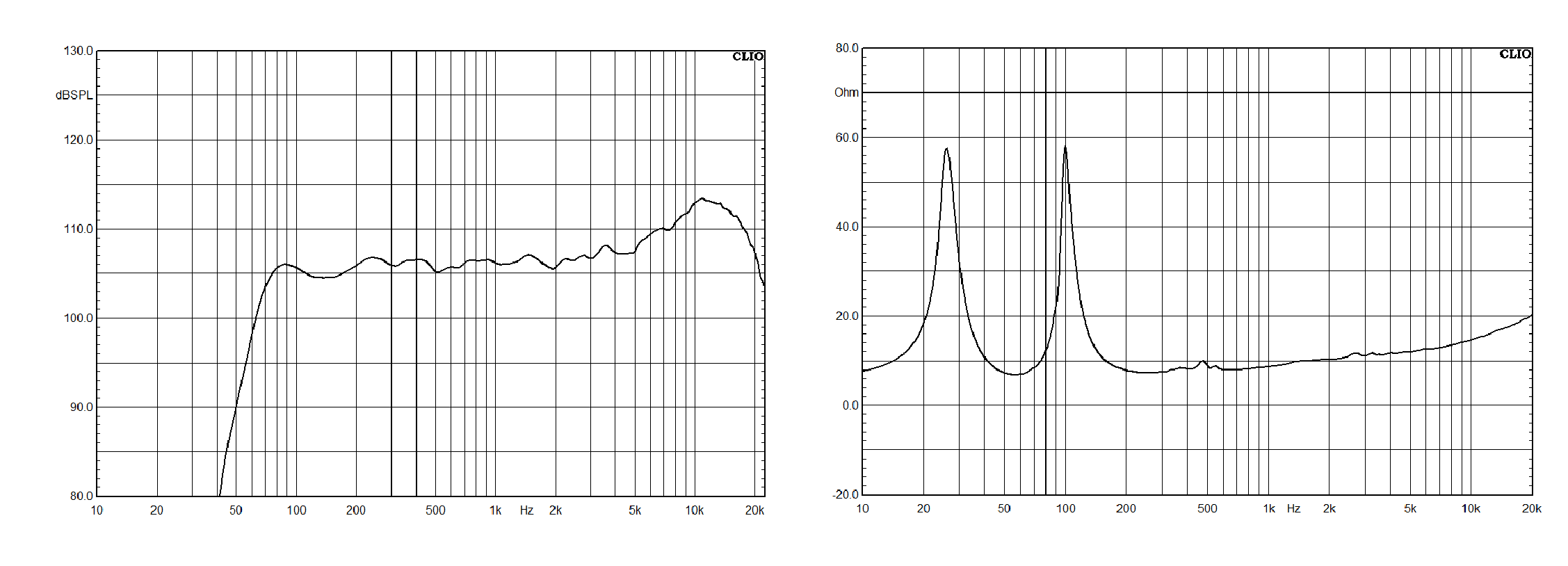

Frequency Response:
-
63Hz-18kHz 58Hz-20kHz(-10dB)
-
Power(AES/PERK):
-
970W/3880W
-
Average Sensitivity:
-
106dB
-
Directivity:
-
90°(w)x10°(h)
-
Nominal Impedance:
-
12Ω
-
SPL(AES/PERK):
-
134dB/140dB
-
Speaker driver:
-
LF 2x10" neodymium+ MF 1x8" neodymium+ HF2x2"(compression)
-
Application:
-
Touring performance, Outdoor square, Stadium, Theater
-
GW:
-
45.5kg
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VA
-
Model Number:
-
LAM
-
Product name:
-
1000W line array speakers professional 3-way line array sound system
-
Frequency Response:
-
63Hz-18kHz 58Hz-20kHz(-10dB)
-
Power(AES/PERK):
-
970W/3880W
-
Average Sensitivity:
-
106dB
-
Directivity:
-
90°(w)x10°(h)
-
Nominal Impedance:
-
12Ω
-
SPL(AES/PERK):
-
134dB/140dB
-
Speaker driver:
-
LF 2x10" neodymium+ MF 1x8" neodymium+ HF2x2"(compression)
-
Application:
-
Touring performance, Outdoor square, Stadium, Theater
-
GW:
-
45.5kg
Product Description

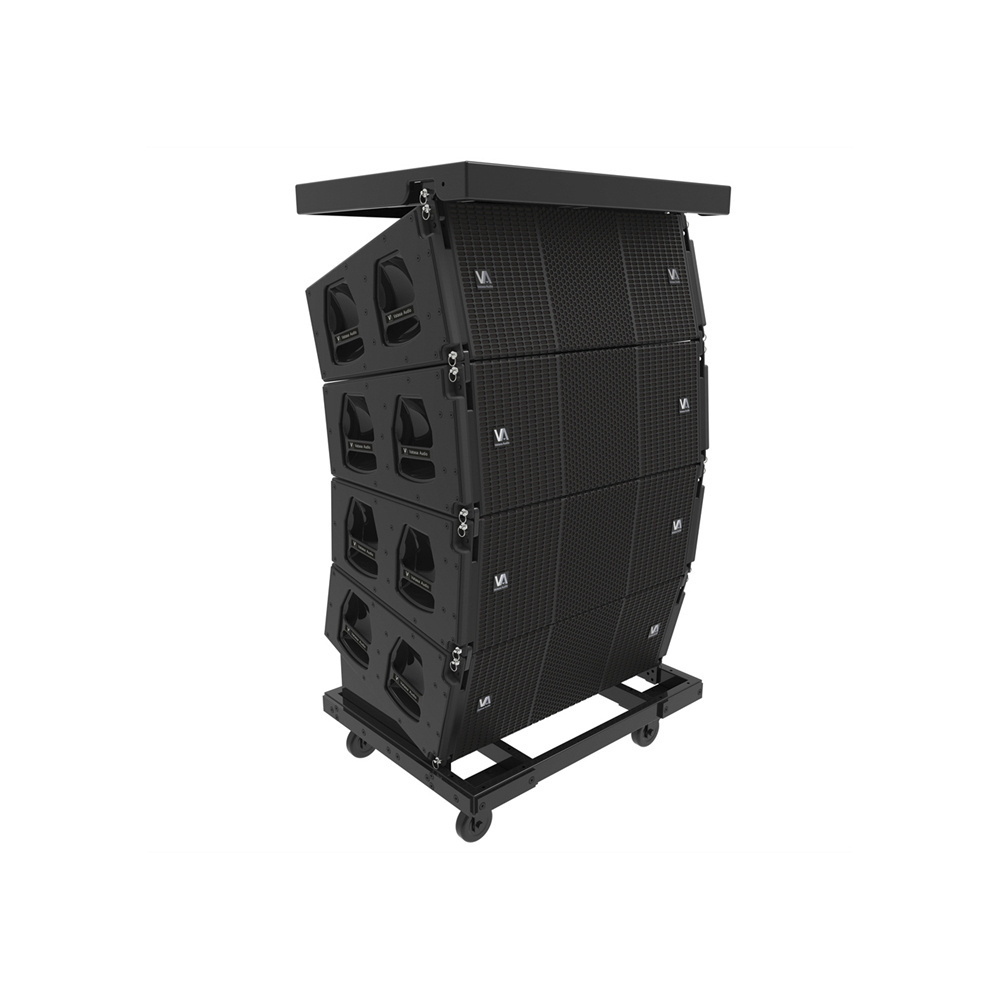

VA High Quality 1000W line array speakers professional 3-way line array sound system
Bass symmetrical, middle and high coaxial structure, thri-amp line array system
Eliable and durable magnetic bolt
All neodymium speaker units to reduce speaker weight
Neodymium high sensitivity drivers provide high sound pressure level (SPL) and dynamic margin

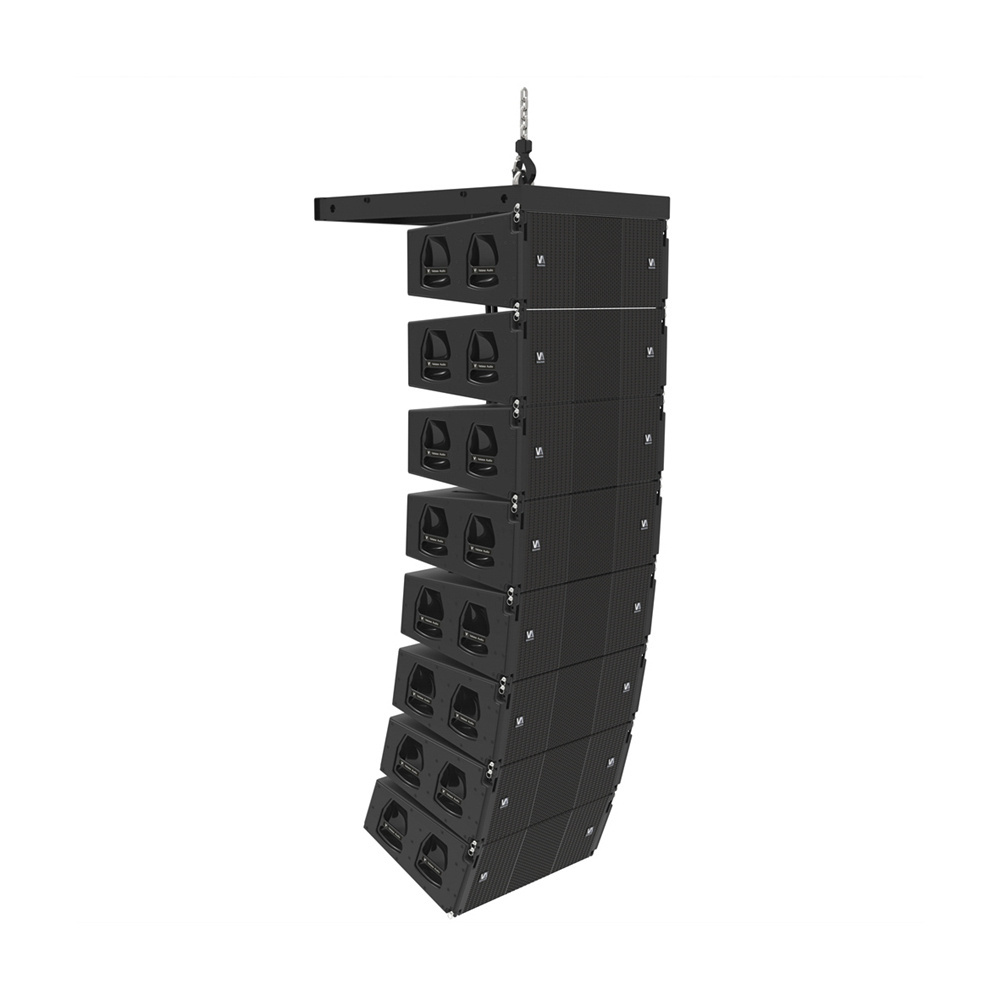

Presettable angles, three point hanging system
Presettable several processor data program to satisfy different performances
Finished by crashproof and elastic polyurea paint
Specification
|
Connector
|
2 x Speakon WP4
|
|
Cabinet material
|
18mm plywood
|
|
Finish
|
Black polyurea paint
|
|
Grill
|
Steel
|
|
N.W
|
44KG
|
|
G.W
|
45.5KG
|
|
Cabinet size(w*h*d)
|
800*303*500mm
|
|
Package size(w*h*d)
|
905*611*385mm
|
Forest Tourism Festival
China Dragon Boat Open Games
Date:
May 28, 2019
Location: Jingzhou City, Hubei Province
Live audience: Over 10000
Audio Equioment:
FOH:
24pcs dual 12-inch line array speakers #LAL
16pcs dual 10-inch line array speakers # LAM
8pcs 10-inch coaxial line array speakers # LAC
Subwoofer:
16pcs dual 18-inch inverted subwoofer speakers # S28
8pcs 18-inch cardioid subwoofer speakers # LAM-S2
Monitor: 8pcs 15-inch stage monitor # CM1
Location: Jingzhou City, Hubei Province
Live audience: Over 10000
Audio Equioment:
FOH:
24pcs dual 12-inch line array speakers #LAL
16pcs dual 10-inch line array speakers # LAM
8pcs 10-inch coaxial line array speakers # LAC
Subwoofer:
16pcs dual 18-inch inverted subwoofer speakers # S28
8pcs 18-inch cardioid subwoofer speakers # LAM-S2
Monitor: 8pcs 15-inch stage monitor # CM1
Free Combat Contest
Date:
August 10, 2019
Location: Wuxi Sports Center Gymnasium
Live audience: over 2000
Audio Equioment:
FOH: 12pcs dual 10-inch line array speakers #LAM
Subwoofer: 6pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 4pcs 15-inch coaxial stage monitor #M15
Location: Wuxi Sports Center Gymnasium
Live audience: over 2000
Audio Equioment:
FOH: 12pcs dual 10-inch line array speakers #LAM
Subwoofer: 6pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 4pcs 15-inch coaxial stage monitor #M15
The 3rd Hip Hop Culture Exhibition
Date:
August 13, 2019
Location: Xingyang sports center
Live audience: over 6000
Audio Equioment:
FOH: 24pcs dual 10-inch line array speakers #LAM
Subwoofer: 12pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 8pcs 15-inch stage monitor #CM1
Location: Xingyang sports center
Live audience: over 6000
Audio Equioment:
FOH: 24pcs dual 10-inch line array speakers #LAM
Subwoofer: 12pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 8pcs 15-inch stage monitor #CM1
Yangzhou Charity Stars Concert
Date:
October 19, 2019
Location: Yangzhou City, Jiangsu Province
Live audience: Over 15000
Audio Equioment:
FOH:
24pcs dual 12-inch line array speakers #LAL
16pcs dual 10-inch line array speakers #LAM
Subwoofer:
16pcs dual 18-inch inverted subwoofer speakers #S28
8pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 8pcs 15-inch stage monitor #CM1
Location: Yangzhou City, Jiangsu Province
Live audience: Over 15000
Audio Equioment:
FOH:
24pcs dual 12-inch line array speakers #LAL
16pcs dual 10-inch line array speakers #LAM
Subwoofer:
16pcs dual 18-inch inverted subwoofer speakers #S28
8pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 8pcs 15-inch stage monitor #CM1
Zhenzhou MIGU MUSIC FESTIVAL
Date:
December 27, 2019
Location: Zhenzhou City
Live audience: Over 6000
Audio Equioment:
FOH:
32pcs dual 10-inch line array speakers #LAM
Subwoofer:
4pcs dual 18-inch inverted subwoofer speakers #S28
16pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 12pcs 15-inch stage monitor #CM1
Location: Zhenzhou City
Live audience: Over 6000
Audio Equioment:
FOH:
32pcs dual 10-inch line array speakers #LAM
Subwoofer:
4pcs dual 18-inch inverted subwoofer speakers #S28
16pcs 18-inch cardioid subwoofer speakers #LAM-S2
Monitor: 12pcs 15-inch stage monitor #CM1
