Quick Details
-
Model Number:
-
FTS-310
-
Certificate:
-
CE
-
Warranty:
-
3 Years
-
Product name:
-

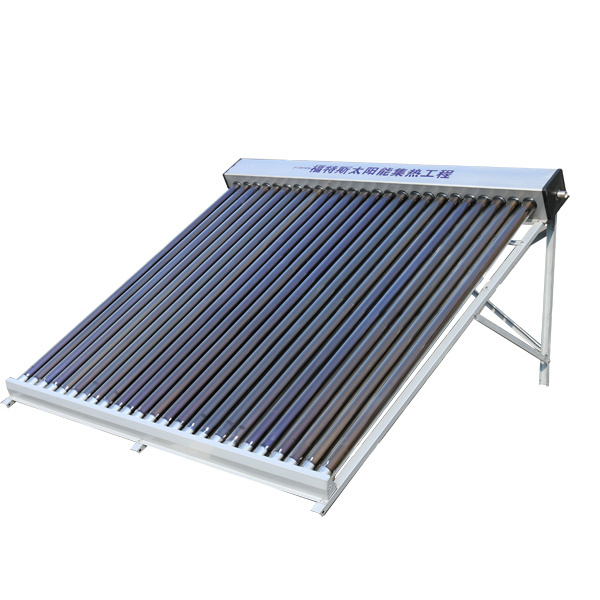

Solar Swimming Pool Heater
-
Material:
-
SUS304
-
Usage:
-
Industrial Project
Quick Details
-
Pipe Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
Fortes
-
Model Number:
-
FTS-310
-
Certificate:
-
CE
-
Warranty:
-
3 Years
-
Product name:
-
Solar Swimming Pool Heater
-
Material:
-
SUS304
-
Usage:
-
Industrial Project
Product Description
|
Types
|
SP (Integrated Low Voltage System)
|
|
Outer box material
|
White steel or food-grade SUS304 2B stainless steel plate
|
|
Outer tank diameter
|
460mm
|
|
Liner material
|
Food grade SUS304 2B stainless steel plate or 316L stainless steel
|
|
Liner diameter
|
360mm
|
|
Pipe
|
High-quality borosilicate glass
|
|
Vacuum tube size (mm)
|
58/1800 (diameter / length)
|
|
Tube number
|
9/10/12/15/18/20/24/30/32/36/40
|
|
Frame (Tripod)
|
Galvanized sheet, stainless steel or aluminum alloy
|
|
Insulation
|
High-quality polyurethane foam made by advanced high-pressure foaming machine
|
|
Insulation thickness
|
50mm, (outer box 460mm), 55mm (outer box 470mm), 60mm (outer box 500mm)
|
|
Hail resistance
|
25 mm
|
|
Working pressure
|
0.05 MPa
|
|
Qualified
|
CE, CCC, solar signs EN12976, SABS
|
Specification
|
Number of tubes
|
Height(H)
|
Header capacity
|
Collecting tube capacity
|
Header weight
|
Stand weight
|
Collector weight
|
Header size
|
Header length spout to spout
|
|
25
|
100
|
16.8
|
1*25
|
7.9
|
14.7
|
1.9
|
16*18*198
|
205
|
|
50
|
95
|
16.8
|
1*50
|
7.9
|
18.7
|
1.9
|
16*18*198
|
205
|
|
|
|
|
|
|
|
|
|
|
