Quick Details
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 230*220*115 mm, other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
shangshi
-
Voltage:
-
16Mpa, Customizable
-
Dimension(L*W*H):
-
1600*1200*2100mm
-
Warranty of core components:
-
1 years
-
Weight (KG):
-
1300 kg
-
Product Name:
-
Compressed earth blocks machines
-
Raw material:
-
Clay Earth Soil Mud
-
Block Type:
-
Solid Block,Interlocking Block
-
Rated Pressure:
-
16Mpa Hydraulic Pressure
-
Worker:
-
3-4 Person
-
Cycle time:
-
10-15s
-
Color:
-
Customizable
-
Brand:
-
Shangshi
-
Model:
-
HY2-10
Quick Details
-
Type:
-
Interlock Block Making Machine, Clay brick making machine
-
Brick Raw Material:
-
Clay,
-
Production Capacity (Pieces/8 hours):
-
5760 pcs/8hours
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 230*220*115 mm, other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
shangshi
-
Voltage:
-
16Mpa, Customizable
-
Dimension(L*W*H):
-
1600*1200*2100mm
-
Warranty of core components:
-
1 years
-
Weight (KG):
-
1300 kg
-
Product Name:
-
Compressed earth blocks machines
-
Raw material:
-
Clay Earth Soil Mud
-
Block Type:
-
Solid Block,Interlocking Block
-
Rated Pressure:
-
16Mpa Hydraulic Pressure
-
Worker:
-
3-4 Person
-
Cycle time:
-
10-15s
-
Color:
-
Customizable
-
Brand:
-
Shangshi
-
Model:
-
HY2-10

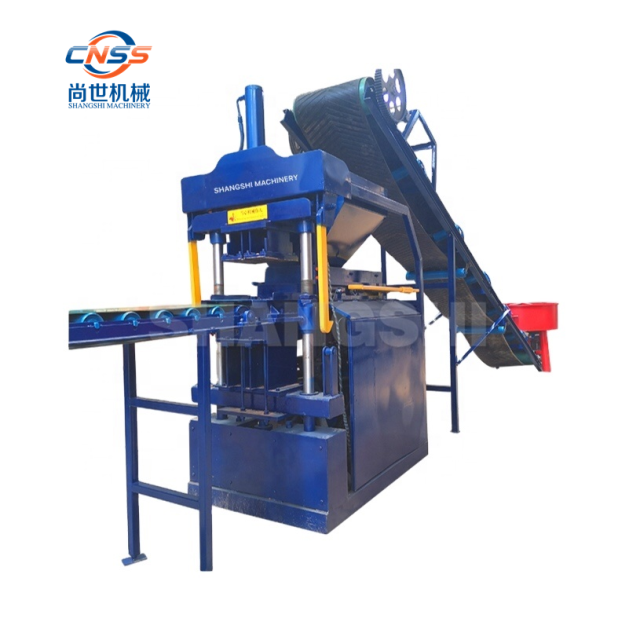

Automatic hydraulic press ecological bricks compressed earth blocks machines
Automatic hydraulic press ecological bricks compressed earth blocks machine
1,PLC controlled,which can be easily operated by only one person
2,Two brick would be made in less than 10 sedonds.
3,By adjusting the screws,brick height can be changed.
4,Mould can be changed according to cusmer’s requirements.
5,High productivity.15000 bricks a day.
6 ,Double oil cylinder makes the brick much more strong.
Machine parameter of HY2-10 automatic clay brick machine hydraulic press machine interlock brick making machine
| HY2-10 automatic hydraulic interlocking clay brick making machine | ||
|
Dimension of host machine | 1600×1200×2100mm |
| Machine power | 7.5kw | |
| Cycle | 7-15s | |
| Working mode | Hydraulic pressure | |
| Host machine weight | 1300kg | |
| Capacity | 385pcs/shift | |
| Needed workers | 2-3 workers | |
| JW350 Concrete Mixer Machine | ||
|
Dimension | 1150*1150*1100mm |
| Discharging cpacity | 350L | |
| Mixer power | 7.5KW | |
| Charging cpacity | 500L | |
| Weight | 450KG | |
| Soil Crusher Machine | ||
| Overall size | 1300*600*1400mm | |
| Motor | 11KW | |
| Capacity | 1-5tons/hour | |
| Electricity | 220-415V(adjustalbe) | |
| Total weight | 400KG | |
| Conveyor belt | ||
| Dimension | Length 6m | |
| Mixer power | 3kw | |
| Weight | 450kg | |
Airscape and close-up view
Brick reference:
Customer feedback:
Delivery details:
1.Standard export packing or according to customer's requirements.
2.Use crane/forklist to load the machines into the container.
3.Use the wire to fasten the machines in order to keep them stable.
4.Use the cork wood forbid collision.
Shipping details:
1.Lead time for mass production:within 3 days after received 30% down payment.
2.Delivery date:within 5 days after received 70% down payment.
Related clay brick making machine:
| HY2-20 Hydraulic clay brick making machine | ||
| Weight(kg) | 480 | |
| Dimension(mm) | 1500*750*1400 | |
| Power(kw) | 3 | |
| Daily capacity | 3000-4000 pieces/8hs | |
| JZ250 clay extruding brick making machine | ||
| Weight(kg) | 900 | |
| Dimension(mm) | 3000*1100*1300 | |
| Power(kw) |
11kw/15hp |
|
| Daily capacity |
10000 pieces/8hs |
|
