Quick Details
-
Design Style:
-
Traditional
-
Surface Treatment:
-
Anodized, Brushed, Mirror, PE Coated, PVDF Coated
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLORES
-
Model Number:
-
FL-flat
-
name:
-
aluminium honeycomb panel
-
Material:
-
aluminum skin+ aluminum core
-
Panel Thickness:
-
6mm-200mm
-
Color:
-
RAL colors
-
Coating treatment:
-
PVDF, PE, Mirror, Brush
-
Standard Size:
-
220x2440mm, 1250x2440mm, 1500x2440mm
-
Special requirement for size:
-
width until 2500mm; length until 10000mm
-
Core material:
-
3003 aluminum alloy
-
Packing:
-
wooden case
-
Certificate:
-
EN13501-1; BS476 part4, 6&7
Quick Details
-
Warranty:
-
More than 5 years
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Traditional
-
Surface Treatment:
-
Anodized, Brushed, Mirror, PE Coated, PVDF Coated
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLORES
-
Model Number:
-
FL-flat
-
name:
-
aluminium honeycomb panel
-
Material:
-
aluminum skin+ aluminum core
-
Panel Thickness:
-
6mm-200mm
-
Color:
-
RAL colors
-
Coating treatment:
-
PVDF, PE, Mirror, Brush
-
Standard Size:
-
220x2440mm, 1250x2440mm, 1500x2440mm
-
Special requirement for size:
-
width until 2500mm; length until 10000mm
-
Core material:
-
3003 aluminum alloy
-
Packing:
-
wooden case
-
Certificate:
-
EN13501-1; BS476 part4, 6&7
Building construction material 10mm aluminum honeycomb core panel

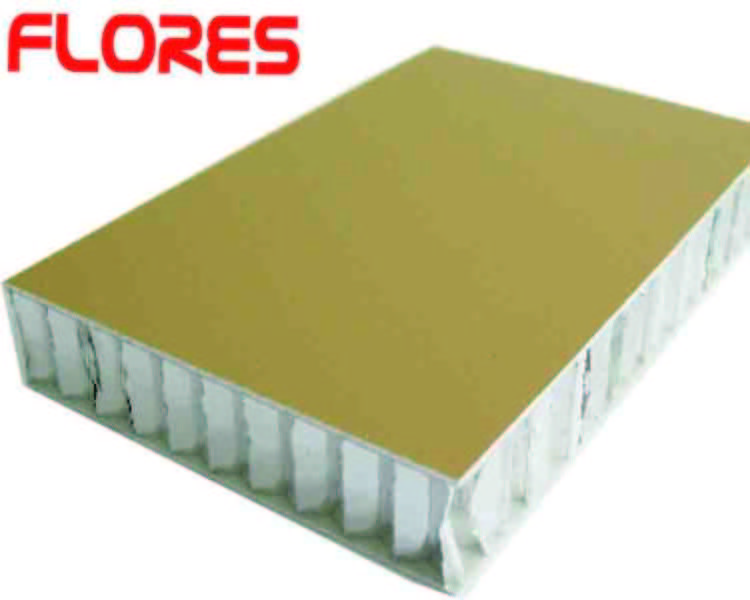

FLORES aluminium honeycomb panel is a sandwich panel bonded with aluminium face material and with a core in aluminium honeycomb. It offers high mechanical properties and good fire performance;
FLORES Aluminium honeycomb panel Structure
TOP ALUMINIUM SKINS Thickness in mm
0,5 - 0,7 - 1 (standard)
Special thickness according to customers’ requirements;
ALUMINUM CORE
Hexagonal cells, Alloy series 3003
Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”;
Foil thickness: from 50 to 70 microns;
BOTTOM ALUMINIUM SKINS Thickness in mm
0,5 - 0,7- 1 (standard)
Special thickness according to customers’ requirements;
On request: Special alloys, treatments and coating with RAL color;
FLORES Aluminium honeycomb panel Specifications:
Total Thickness: 6mm-200mm
Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm;
Standard size: 1220x2440;
Other size on request;
Max. Width: 2000mm;
Max. Length: 10000mm;
Colors: RAL color
Min. order quantity: 10m2;
Quality Warranty: 20 years;
Company prodution capacity: 1000000m2 / year;
Company Management Certificate: ISO9001:2008, ISO14001:2004;
Fire-rated certificate:
EN13501-1 (EU standard)
BS476 part4, 6&7 (British standard)
Chinese B1 (Chinese Stand)
