Quick Details
-
Model Number:
-
THC-30
-
Max. Current:
-
30A
-
Product name:
-
time switch
-
Color:
-
white
-
Power failure memory:
-
60days
-
Operate Temperature:
-
-10 to +40 C
-
Battery:
-
1.2V/40mA
-
Contact Capacity:
-
30A
-
Full Time Range:
-
1Min-168Hours
-
Certificate:
-
ISO9001,CE,ROHS
-
Certification:
-
CE,ROHS
Quick Details
-
Max. Voltage:
-
220V AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ROEY
-
Model Number:
-
THC-30
-
Max. Current:
-
30A
-
Product name:
-
time switch
-
Color:
-
white
-
Power failure memory:
-
60days
-
Operate Temperature:
-
-10 to +40 C
-
Battery:
-
1.2V/40mA
-
Contact Capacity:
-
30A
-
Full Time Range:
-
1Min-168Hours
-
Certificate:
-
ISO9001,CE,ROHS
-
Certification:
-
CE,ROHS

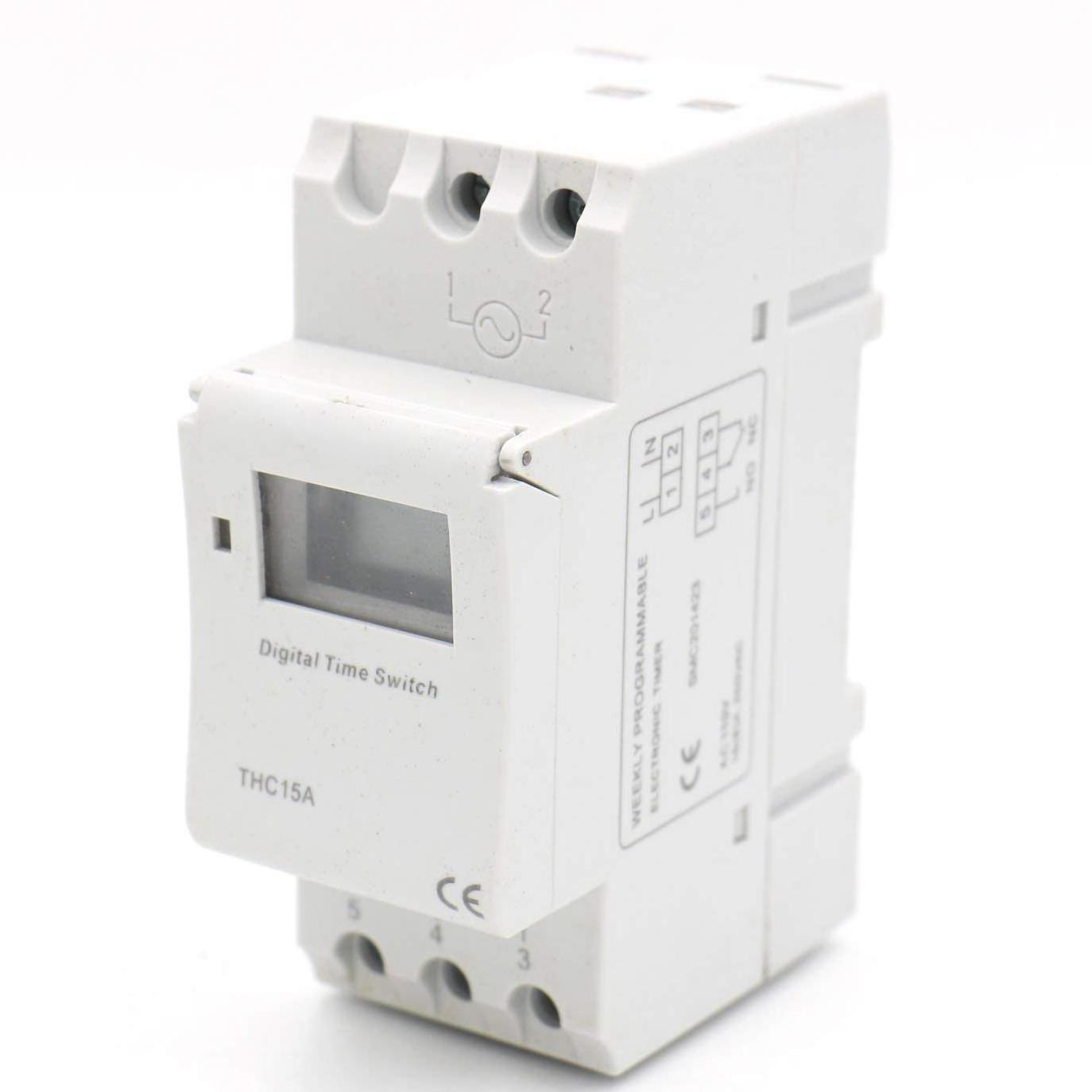

THC-30 30A 110V Relay Digital LCD Power Programmable Timer Time Switch
Roey Programmable Digital Timer makes it easy to set all your indoor or outdoor electric devices, including lights and hydroponic equipment. Save time and energy by programming your equipment to turn on only when you need it.
Features:
- Rated Voltage: 110V AC; Contact Capacity: 16A
- Full Time Range: 1Min-168Hours; Programmable: 17times/week or day
- Internal battery: 1.2V/40mA (rechargeable batteries)
- Power failure memory: 60days; Operate Temperature: -20 to +55℃
- Net weight: 120g
Technical data:
| Operation voltage | AC230V,DC12V 24V | |||
| Frequency | 50/60Hz | |||
| Model | THC-1516 | THC-1520 | THC-1530 | |
| AC switching capacity | resistive load | 16A | 20A | 30A |
| inductive load | 8A | 10A | 15A | |
| Accuracy | ±1s/day at 20 ℃ | |||
| Power Reserve | 60 days | |||
| Power Consumption | ≤7.5VA | |||
| Switching Contact | 1 Changeover switch | |||
| Min Interval time | 1 Min | |||
| No.of program | 17 groups | |||
| Installation Type | Din Rail Mounting | |||
| Ambient Temperature | -20 ~ +55℃ | |||
Dimension:
Wiring Diagram:
