Quick Details
-
Brand Name:
-
AOPACK
-
Weight:
-
3300 KG
-
Dimension(L*W*H):
-
3540(W) * 2050(L)* 2090mm(H)
-
Corrugated board type:
-
Sheets Or Fanfold (Single , Double wall)
-
Cardboard thickness:
-
2-10mm
-
Cardboard density range:
-
Up to 1200g/m²
-
Max.board size:
-
2500mm width x unlimited length
-
Min.board size:
-
200mm width x 650mm length
-
Production Capacity:
-
Appr.7-10 pcs/minute or Depends on size and box style.
-
Box Making Machine Slotting Knife:
-
2 pcs *500mm Length
-
Vertical Cutting knife:
-
4
-
Scoring/Creasing wheel:
-
4
-
Product name:
-
Corrugated Carton Box Making Machine Prices Fully Automatic
Quick Details
-
Voltage:
-
380V±10%
-
Power:
-
7kW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOPACK
-
Weight:
-
3300 KG
-
Dimension(L*W*H):
-
3540(W) * 2050(L)* 2090mm(H)
-
Corrugated board type:
-
Sheets Or Fanfold (Single , Double wall)
-
Cardboard thickness:
-
2-10mm
-
Cardboard density range:
-
Up to 1200g/m²
-
Max.board size:
-
2500mm width x unlimited length
-
Min.board size:
-
200mm width x 650mm length
-
Production Capacity:
-
Appr.7-10 pcs/minute or Depends on size and box style.
-
Box Making Machine Slotting Knife:
-
2 pcs *500mm Length
-
Vertical Cutting knife:
-
4
-
Scoring/Creasing wheel:
-
4
-
Product name:
-
Corrugated Carton Box Making Machine Prices Fully Automatic
Products Description

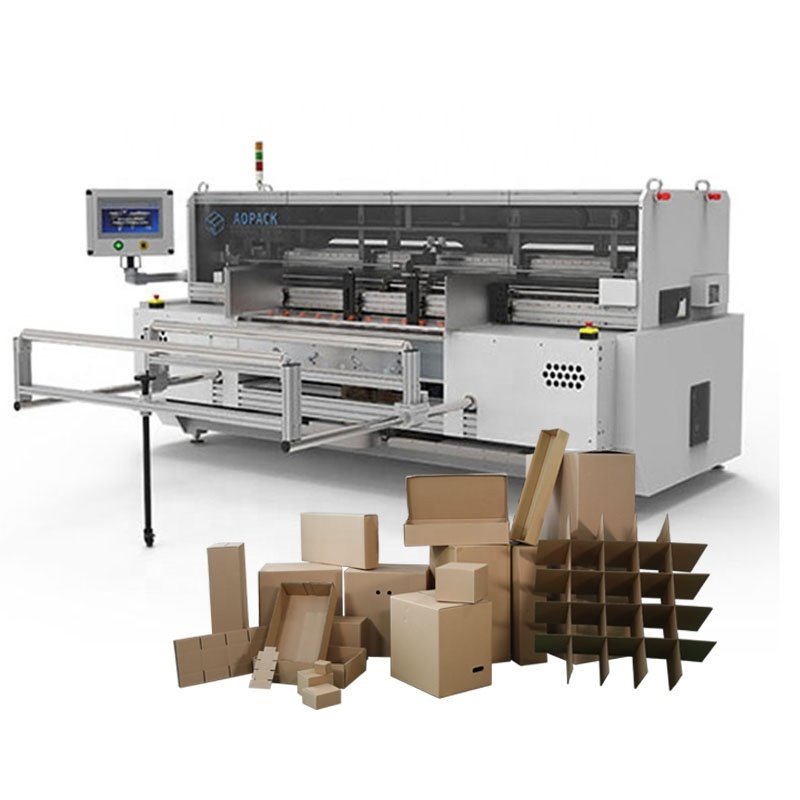

Aopack Cardboard Automatic Box Maker Corrugated Carton Box Making Machine Fully Automatic
Technical Specification
|
|
BM2508 Plus
|
BM2508 SE
|
BM3000
|
|||
|
Corrugated Board Type
|
Sheets or fanfold (Single , Double wall)
|
Sheets (Single , Double wall)
|
Sheets Or Fanfold (Single , Double wall)
|
|||
|
Cardboard Thickness
|
2-10mm
|
2-10mm
|
2-10mm
|
|||
|
Cardboard Density Range
|
Up to 1200g/m²
|
Up to 1200g/m²
|
Up to 1200g/m²
|
|||
|
Max. Board Size
|
2500mm width x unlimited length
|
2500mm width x unlimited length
|
3000mm width x unlimited length
|
|||
|
Production Capacity
|
Appr.7-10 pcs/minute
Depends on size and box style.
|
Appr.7-10 pcs/minute Depends on size and box style.
|
Appr.8-12 pcs/minute Depends on size and box style.
|
|||
|
Slotting Knife
|
2 pcs *500mm Length
|
2 pcs *500mm Length
|
2 pcs *500mm Length
|
|||
|
Vertical Cutting knife
|
4
|
4
|
4
|
|||
|
Scoring / Creasing Wheel
|
4
|
2 (Option 4)
|
4
|
|||
|
Horizontal Cutting knife
|
1
|
1
|
1
|
|||
|
Power Supply
|
BM2508-Plus 380V±10%，Max. 7kW, 50/60 Hz
|
BM2508-SE 380V±10%，Max. 6.2kW, 50/60 Hz
|
BM3000 380V±10%，Max. 7.7kW, 50/60 Hz
|
|||
|
Air Pressure
|
0.6-0.7MPa
|
0.6-0.7MPa
|
0.6-0.7MPa
|
|||
|
Dimension
|
3540(W) * 2050（L）* 2090mm(H)
|
3370(W) * 1800（L）* 2000mm(H)
|
3650(W) * 1950（L）* 2090mm(H)
|
|||
|
Gross Weight
|
Appr.3300Kg
|
Appr.2800Kg
|
Appr.3500Kg
|
|||
|
Automatic Paper Feeding
|
Lead edge feeder 1400mm
|
Lead edge feeder 900mm
|
Lead edge feeder 1400mm
|
|||
|
Handhole on Box Sides
|
Hand hole module size (120*120mm)
|
No
|
Hand hole module size (120*120mm)
|
|||
|
Air Consumption
|
75L/Min
|
40L/Min
|
75L/Min
|
|||
|
Box Styles
|
More than 60 Fefco codes
|
About 27 （36）Fefco codes
|
More than 60 Fefco codes
|
|||
|
All the above specifications are for reference only.
|
|
|
|
|||
|
The final interpretation right belongs to Qingdao Aopack On Demand Packaging co., Ltd.
|
|
|
|
|||
