Quick Details
-
Dimension(L*W*H):
-
2200*1310*2520mm
-
Weight:
-
1300 KG
-
Marketing Type:
-
New Product 2024
-
Model:
-
RM500 Plus
-
Max . Splitting Force:
-
30Ton
-
Max. Log Dia.:
-
500mm
-
Max. Log Length:
-
500mm
-
Max. Splitting Lift Height:
-
230mm(hydraulic)
-
Engine Power:
-
27HP LIFAN Engine, Electric start
-
Control type:
-
Manual
-
Cycle time:
-
6S
-
Saw bar:
-
24" Harvester
-
Saw chain size:
-
0.404"
Quick Details
-
Use:
-
Cut, Split and Load Firewood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RIMA
-
Dimension(L*W*H):
-
2200*1310*2520mm
-
Weight:
-
1300 KG
-
Marketing Type:
-
New Product 2024
-
Model:
-
RM500 Plus
-
Max . Splitting Force:
-
30Ton
-
Max. Log Dia.:
-
500mm
-
Max. Log Length:
-
500mm
-
Max. Splitting Lift Height:
-
230mm(hydraulic)
-
Engine Power:
-
27HP LIFAN Engine, Electric start
-
Control type:
-
Manual
-
Cycle time:
-
6S
-
Saw bar:
-
24" Harvester
-
Saw chain size:
-
0.404"
Product Overview

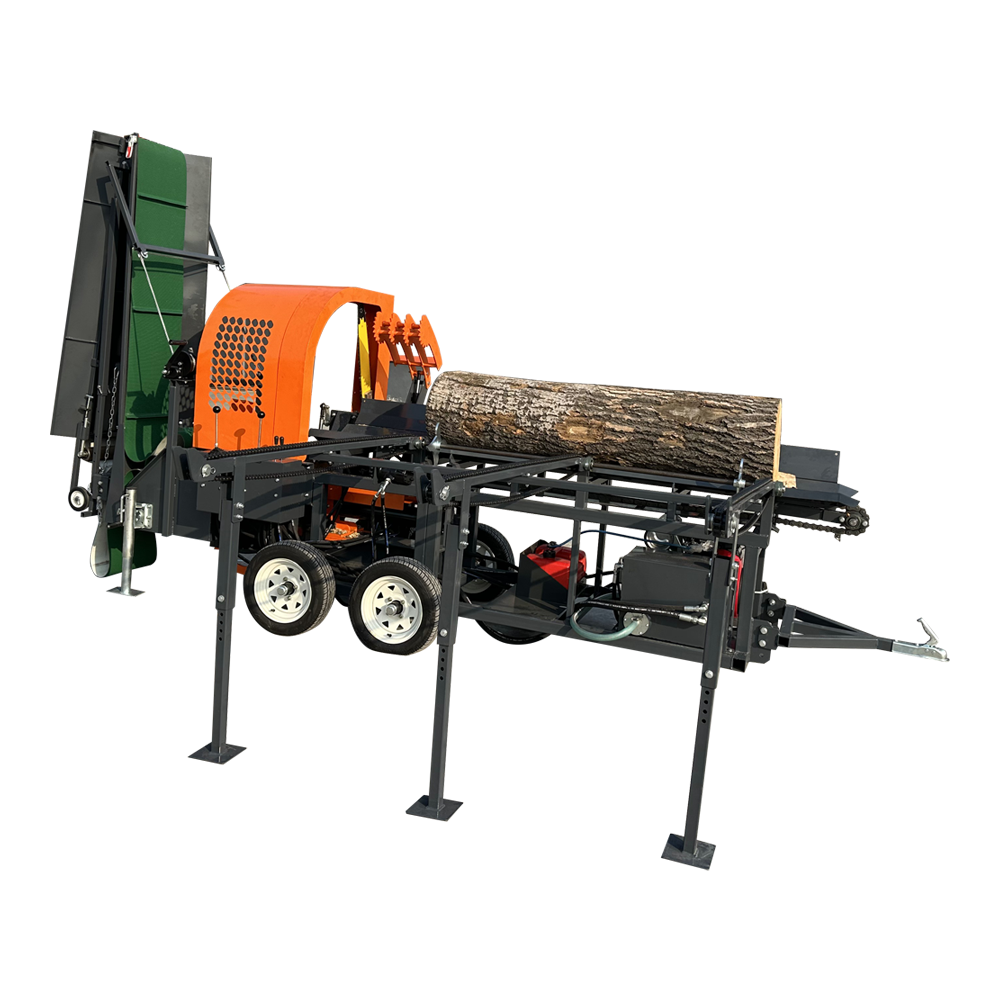

RM500 JOY firewood processor-PTO driven
This economical firewood processor is the perfect machine for getting your firewood business off the ground.
The RM500PLUS can easily be towed behind a pick-up truck and includes standard features for rapid deployment. This processor is designed for the highly mobile firewood producer or growing firewood business owner. It is also a superb rental unit that is capable of nearly anything a homeowner can throw at it.
The RM500PLUS can easily be towed behind a pick-up truck and includes standard features for rapid deployment. This processor is designed for the highly mobile firewood producer or growing firewood business owner. It is also a superb rental unit that is capable of nearly anything a homeowner can throw at it.
PRODUCT SPECIFICATIONS
|
Model
|
RM500 PLUS
|
|
Max. splitting force
|
30Ton
|
|
Max. log dia.
|
500mm
|
|
Max. log length
|
500mm
|
|
Max. splitting lift height
|
230mm(hydraulic)
|
|
Standard engine Power
|
27HP Gasoline engine(LIFAN) E-starting
Optional: Honda GX690/LIFAN 35HP |
|
Work Efficiency
|
8m3/h
|
|
Saw lubrication system
|
Auto
|
|
Hydraulic chain feeding
|
2730x400mm (L*W)
|
|
Log table
|
1830x1700x1165mm(L*W*H)
Table Chain No.:3pcs |
|
Firewood length fixed position
|
Hydraulic
|
|
Firewood conveyor
|
Standard Length: 4m, Belt width:400mm
|
|
Control type
|
MANUAL
|
|
Cycle time
|
6s
|
|
Cylinder size
|
4.5 inch
|
|
Saw chain size
|
0.404”
|
|
Saw bar
|
24” Harvester
|
|
Saw motor type
|
Plunger motor
|
|
Saw speed
|
10000rpm
|
|
Hydraulic pump flow
|
48L/min, 2-stage
|
|
Hydraulic tank capacity
|
50L
|
|
Knife
|
6-way (optional 8-way)
|
|
Traction
|
50mm ball
|
|
Wheel
|
4x14’’
|
|
Weight
|
1300kg
|
|
40” Container
|
8pcs
|
Features
Hydraulic clamper Hydraulic chain saw feeding
6ways knife Oil tank
Pump on log table Manual control
Log table Tire
