Quick Details
-
application:
-
RF Encoder Modulator
-
Application:
-
Digital Television Front End System
-
input:
-
24*HDMI,1*IP,2*ASI Input
-
output:
-
IP,ASI,RF:DVB-T/DVB-C/ATSC/ISDBT/DTMB
-
video encoder:
-
H264/MPEG-4
-
Support:
-
TS Re-multiplexing
-
Streaming Protocol:
-
UDP/RTP protocol (multicast)
-
Management:
-
web-NMS
-
Power:
-
100-240VAC
-
Size:
-
482mm*410mm*44mm
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
tuoying
-
Model Number:
-
EX2416A
-
application:
-
RF Encoder Modulator
-
Application:
-
Digital Television Front End System
-
input:
-
24*HDMI,1*IP,2*ASI Input
-
output:
-
IP,ASI,RF:DVB-T/DVB-C/ATSC/ISDBT/DTMB
-
video encoder:
-
H264/MPEG-4
-
Support:
-
TS Re-multiplexing
-
Streaming Protocol:
-
UDP/RTP protocol (multicast)
-
Management:
-
web-NMS
-
Power:
-
100-240VAC
-
Size:
-
482mm*410mm*44mm
Product Description
The EX2416A is the latest cost-effective HD encoder modulator.
It supports 24 HDMI inputs, 1 Gigabit IP I/O. 16 outputs (ATSC, ISDBT, DTMBT, DVB-C/-T, 8 MPTS or SPTS);
16 (ATSC, ISDBT, DTMBT, DVB-C/-T) outputs, 24 SPTS outputs. The device integrates the complete front-end system functions, featuring high integration, good performance, low cost, etc. It is very popular in hotels, clubs, hospitals and other similar digital TV transmission systems.
Specification
Key Features
24 channels HDMI input（Support HDCP)
1 Gigabit IP input/output, MPTS output, UDP/RTP/RTSP protocol (multicast)
All standard modultion (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
Support 2* ASI input
Support 2* ASI output separatly
LCD disply and Bottons operation
Web network management
Support online softwel upgrading
Specifications
1 Gigabit IP input/output, MPTS output, UDP/RTP/RTSP protocol (multicast)
All standard modultion (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
Support 2* ASI input
Support 2* ASI output separatly
LCD disply and Bottons operation
Web network management
Support online softwel upgrading
Specifications
|
Input
|
HDMI(24 HDMI)
|
|
|
|
|
2*ASI input
|
|
|
|
Output
|
RF output 16 frequencies DVB-T/ATSC/ISDBT/DMBT or 32 frequencies DVB-C
|
|
|
|
|
2*ASI output
|
|
|
|
|
IP output, SPTS/ MPTS
|
|
|
|
Video Encoding
|
Encode Format
|
MPEG-4 AVC/H.264
|
|
|
|
Input port
|
HDMI
|
|
|
|
Input Resolution
|
1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i @50/59.94Hz |
|
|
|
Output Resolution
|
1920×1080_30P,1920×1080_30P,1280×720_30P,
720x576_25P,720x480_25P |
|
|
|
Code Rate
|
1Mbps~13Mbps（each channel)
|
|
|
|
Rate Mode
|
CBR、VBR
|
|
|
Video Encoding
|
Encode Format
|
MPEG1 Layer2
|
|
|
|
Sample Rate
|
48KHz
|
|
|
|
Bit Rate
|
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps, 384kbps
|
|
|

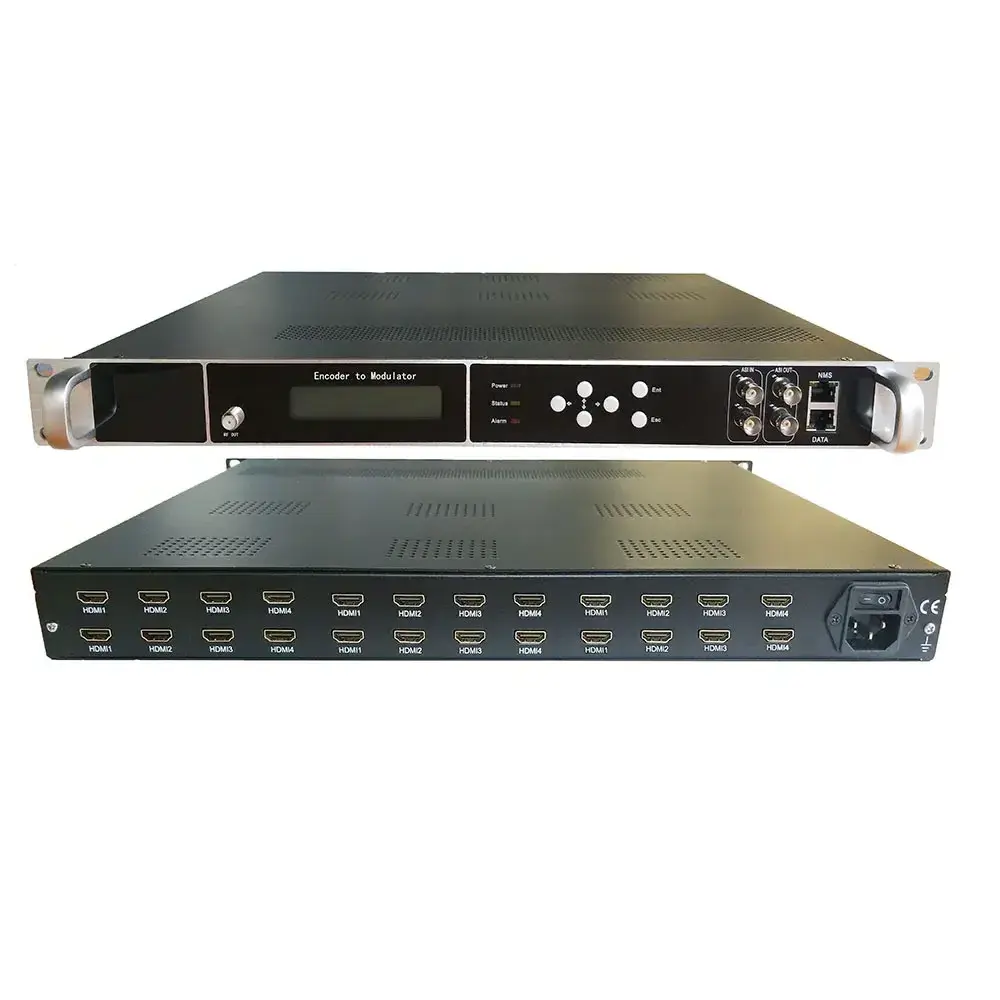

1.
|
RF Out
|
|
2.
|
LCD Display
|
|
3.
|
Indicator lights
|
|
4.
|
Bottons
|
|
5.
|
ASI In
|
|
6.
|
ASI OUT
|
|
7.
|
NMS、DATA Input/ output
|
|
1.
|
HDMI input
|
|
2.
|
Power switch
|
|
3.
|
Power socket
|
|
4.
|
Grounding
|
Other similar products
Packing&Delivery
|
Packaging Details
|
cartons
|
