Quick Details
-
Product name:
-
Lightning Protector
-
Connector type:
-
CA-35RS
-
Material:
-
Brass and PTFE
-
Impedance:
-
50ohm
-
Frequency Range:
-
DC-3GHz
-
VSWR:
-
≤1.1@DC-3GHZ
-
Loss:
-
≤0.2db
-
Certificate:
-
Full RoHS compliance
-
Application:
-
Telecom
-
MOQ:
-
1 Pc
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JW
-
Model Number:
-
Antenna Lightning Protector
-
Product name:
-
Lightning Protector
-
Connector type:
-
CA-35RS
-
Material:
-
Brass and PTFE
-
Impedance:
-
50ohm
-
Frequency Range:
-
DC-3GHz
-
VSWR:
-
≤1.1@DC-3GHZ
-
Loss:
-
≤0.2db
-
Certificate:
-
Full RoHS compliance
-
Application:
-
Telecom
-
MOQ:
-
1 Pc

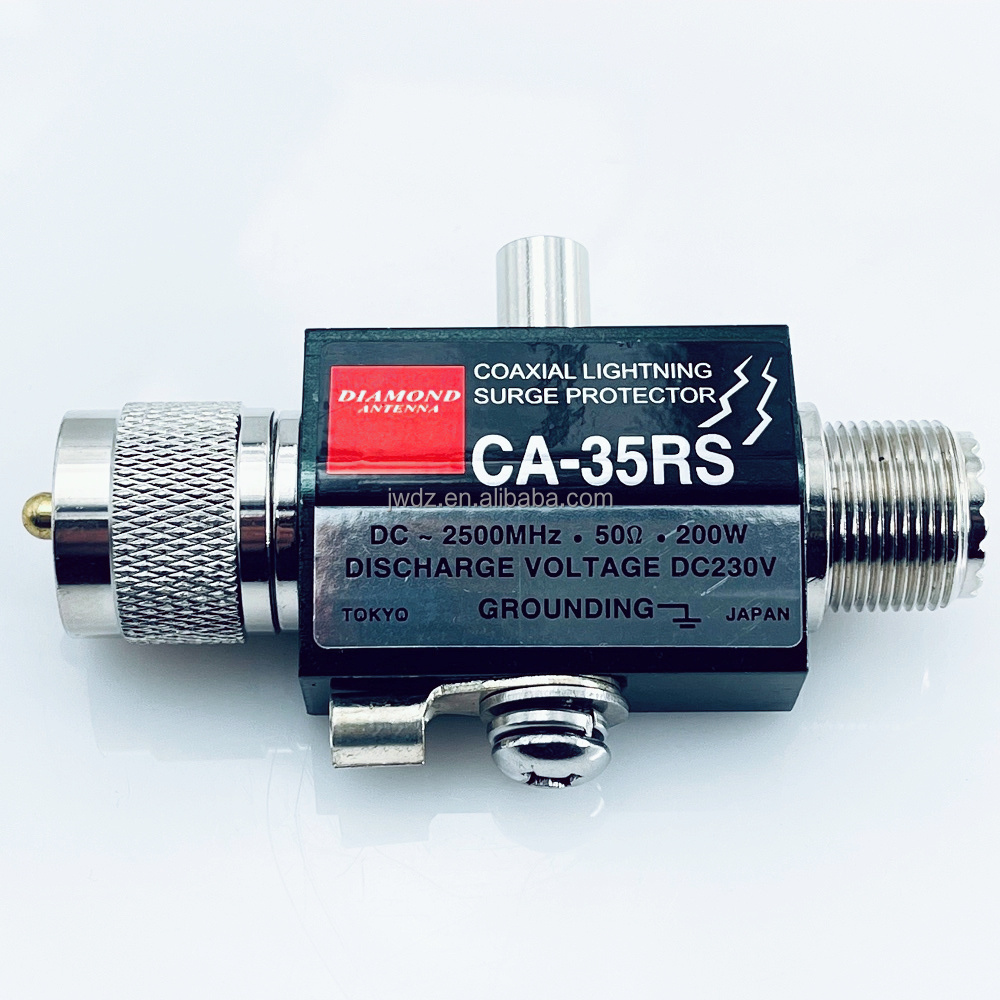

Antenna CA-35RS Coaxial Lightning Surge Protector
CA-35RS
|
Interface |
|
||
|
According to |
CA-35RS |
||
|
|
|||
|
Electrical |
|
||
|
Characteristic Impedance |
50 ohm |
||
|
Frequency Range |
DC-3GHz |
||
|
VSWR |
VSWR≤1.10(3.0G) / |
||
| Insertion loss | ≤0.2dB(3.0G) | ||
|
Rated Power |
250W |
||
|
Initial discharge voltage |
90/150/230V ±20% |
||
|
Peak discharge current |
20KA(8/20μs) |
||
|
|
|||
|
Mechanical |
|
||
|
Durability |
Mating cycles ≥500 cycles |
||
|
|
|||
|
Material and plating |
|
|
|
|
|
Material |
plating |
|
|
Body |
Brass |
Ni |
|
|
Insulator |
PTFE |
- |
|
|
Center conductor |
Tin Phosphor bronze |
Au |
|
|
Gasket |
SIlicone rubber |
- |
|
|
Other |
Brass |
Ni |
|
|
|
|||
|
Environmental |
|
||
|
Temperature Range |
-40℃ ~ +85℃ |
||
|
Rosh-compliance |
Full ROHS compliance |
||
Antenna Lightning Protector
