J67 series brick press machine,fire proof brick making machine

J67 series brick press machine,fire proof brick making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brick size:: 200*100*60 mm

Place of Origin:: Liaoning, China

Brand Name:: Lpmie

Voltage:: 380v/220v

Dimension(L*W*H):: as follow details

Warranty:: 1 year

Weight (KG):: 20000 kg

After-sales Service Provided:: Engineers available to service machinery overseas

widely used:: mobile parts forging press

application in:: refactory brick molding

After Warranty Service:: Video technical support

Quick Details

Type:: Paving Block Making Machine

Brick Raw Material:: refractory materila

Production Capacity (Pieces/8 hours):: Day

Brick size:: 200*100*60 mm

Place of Origin:: Liaoning, China

Brand Name:: Lpmie

Voltage:: 380v/220v

Dimension(L*W*H):: as follow details

Warranty:: 1 year

Weight (KG):: 20000 kg

After-sales Service Provided:: Engineers available to service machinery overseas

widely used:: mobile parts forging press

application in:: refactory brick molding

After Warranty Service:: Video technical support

Product Description

1.Application:

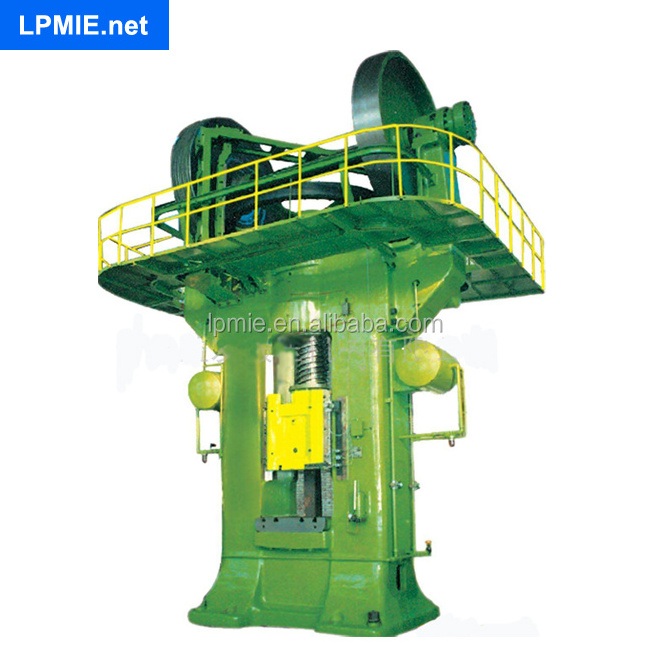

J67 series Friction Brick Press is desinged according to requirement of refractory material press technology. Special equipment for molding fireproof material

2.Features:

Adopt many advanced technologies such as arbitrary point to brake, overload insurance for friction. Features simple structure, huge beat force, more stroke times, safe and reliable for working, simple maintenance and so forth.

3.Parameters:

Item		Unit	Main Technical Parameters of J67 Series
			J67-300	J67-400	J67-630	J67-1000	J67-1600
			J67-300	(Fission Rack)	(Fission Rack)	(Fission Rack)	(Fission Rack)
Nominal Pressure		KN	3000	4000	6300	10000	16000
Allowable Working Force		KN	5000	6300	10000	16000	25000
Max. Working Force		KN	6000	8000	12500	20000	32000
Slider Stroke		MM	500	630	550	700	700
Stroke Times		Min/Times	16	11	13	11	9
Min. Closing Height		MM	850	1040	1130	1280	1420
Thickness of Workbench Plate		MM	100	120	180	200	220
Top Brick Approach			Rigidity	Rigidity	Rigidity	Rigidity	Rigidity
Top Brick Stroke		MM	400	500	450	300-600	300-600
Slider Bottom Surface	Front Rear	MM	600	700	1200	1200	1800
Slider Bottom Surface	Left Right	MM	500	650	920	920	1200
Workbench Surface	Front Rear	MM	800	950	1250	1250	2000
Workbench Surface	Left Right	MM	720	850	1250	1250	2000
Overall Size	Front Rear	MM	3000	3400	4160	3880	7373
	Left Right	MM	2806	2634	4770	5800	4867
	Height	MM	5800	7600	7880	9500	10340
Main Motor Power		KW	30	45	75	90	132
Quality		KG	24000	30000	77000	90000	180000

Our Services

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.

You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.

Packaging & Shipping

Packing:

Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.

Shipping:

Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
