Quick Details
-
Voltage:
-
220/380V
-
Weight:
-
150 KG
-
Name:
-
Juicer Machine
-
Product name:
-
pulping machine
-
Function:
-
pulping machine
-
Application:
-
Sweet Potato mango
-
Usage:
-
Commercial Usage
-
Material:
-
Stainless Steel
-
Capacity:
-
0.5ton~3ton
-
Feature:
-
High Efficiency Easy Operate
-
Final product:
-
Jam
-
Processing Types:
-
Fruits Process Equpiment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jiahuang
-
Type:
-
mango puree making machine
-
Voltage:
-
220/380V
-
Weight:
-
150 KG
-
Name:
-
Juicer Machine
-
Product name:
-
pulping machine
-
Function:
-
pulping machine
-
Application:
-
Sweet Potato mango
-
Usage:
-
Commercial Usage
-
Material:
-
Stainless Steel
-
Capacity:
-
0.5ton~3ton
-
Feature:
-
High Efficiency Easy Operate
-
Final product:
-
Jam
-
Processing Types:
-
Fruits Process Equpiment
Recommend Products
Products Description

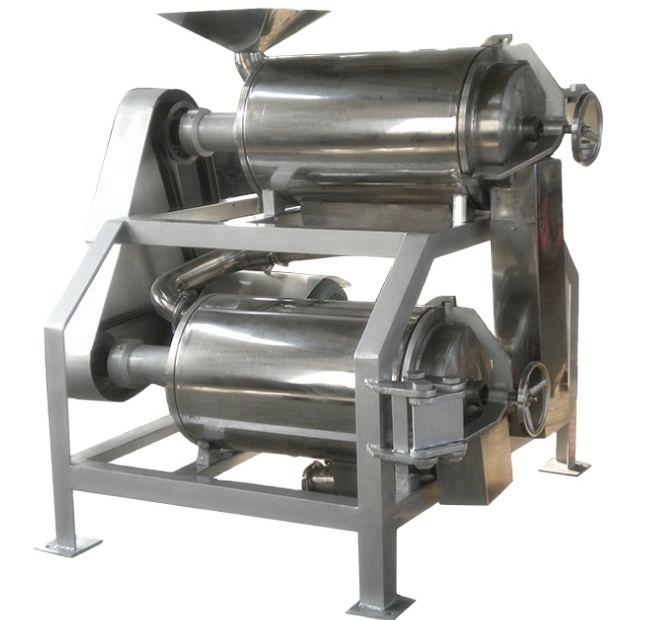

The pulping machine is suitable for separating residues and pulps frompome fruits and various beries after they are crushed and pre-bolled.
The first channel is tor rough pulping. and the secod tofine pulpng. The sleve dameters in the two hannels canbeselected according to the requrements of materials
The machine composed by inlet hopper,outlet hopper,beating padle,sieve,frame,custom motor, cabinet etc part. broken fruit enter into machine from feed hopper and by pulping paddle to process fresh into juice,then discharge from siev(size hole by your request) to outlet hopper for collection.
The machine will separate fruit juice and mango skin and seed. The pulp and residues will separates automatically .This equipment is mainly applied to after preboiled or eight mature drupe to nuclear beating automatic separation.
The first channel is tor rough pulping. and the secod tofine pulpng. The sleve dameters in the two hannels canbeselected according to the requrements of materials
The machine composed by inlet hopper,outlet hopper,beating padle,sieve,frame,custom motor, cabinet etc part. broken fruit enter into machine from feed hopper and by pulping paddle to process fresh into juice,then discharge from siev(size hole by your request) to outlet hopper for collection.
The machine will separate fruit juice and mango skin and seed. The pulp and residues will separates automatically .This equipment is mainly applied to after preboiled or eight mature drupe to nuclear beating automatic separation.
Feauters of pulping machine:
1) Machine material is SUS304.
2) The pulp and peel, kernel will separates automatically
3) You can use it independently or combine it in the production line.
4) This machine can change the different beating speeds and obtain satisfactory results by changing the screen size of different specifications and adjusting the lead angle of the scraper.
5) The machine composed by inlet hopper,outlet,beating channel, juicing channel,sieve,motor,cabinet etc. Fruit feed into hopper, then peeling and pit kernel with pulp, and process plup into juice. The residue will be discharge from sieve(size hole by your request) to outlet hopper for collection.
2) The pulp and peel, kernel will separates automatically
3) You can use it independently or combine it in the production line.
4) This machine can change the different beating speeds and obtain satisfactory results by changing the screen size of different specifications and adjusting the lead angle of the scraper.
5) The machine composed by inlet hopper,outlet,beating channel, juicing channel,sieve,motor,cabinet etc. Fruit feed into hopper, then peeling and pit kernel with pulp, and process plup into juice. The residue will be discharge from sieve(size hole by your request) to outlet hopper for collection.
Product Parameters
|
Name
|
Model
|
Power(kw)
|
capacity(kg/h)
|
dimension(mm)
|
Rotary speed(r/min)
|
N.W(kg)
|
|
One way pulp machine
|
DJ1-0.12
|
1.5
|
50-120
|
915*570*1100
|
860
|
104
|
|
|
DJ1-0.5
|
2.2
|
200-500
|
1200*700*1100
|
860
|
120
|
|
|
DJ1-2.5
|
4
|
1000-2500
|
1450*715*1480
|
860
|
265
|
|
Double way pulp machine
|
DJ2-0.12
|
2.2
|
200-250
|
1000*720*1020
|
860
|
175
|
|
|
DJ2-0.5
|
3
|
800-1000
|
1140*870*1305
|
860
|
190
|
|
|
DJ2-4
|
7.5
|
3000-4000
|
1535*1420*1533
|
860
|
470
|
|
|
DJ2-7
|
15
|
6000-7000
|
1935*1420*1600
|
860
|
650
|
|
Kernel removing one way pulp machine
|
MDJ1-0.12
|
1.5
|
50-120
|
915*570*1100
|
410
|
104
|
|
|
MDJ1-0.5
|
202
|
200-500
|
1200*700*1100
|
410
|
120
|
|
|
MDJ1-2.5
|
3
|
1000-2500
|
1470*752*1460
|
410
|
265
|
|
Kernel removing double way pulp machine
|
MDJ2-0.12
|
2.2
|
50-120
|
1000*720*1020
|
410*860
|
175
|
|
|
MDJ2-0.5
|
3
|
200-500
|
1140*870*1305
|
410*860
|
190
|
|
|
MDJ2-2.5
|
7.5
|
800-1500
|
1535*1420*1533
|
410*860
|
430
|
|
|
MDJ2-4
|
7.5
|
1000-2000
|
1620*1430*1650
|
410*860
|
470
|
|
|
MDJ2-7
|
18.5
|
3000-4000
|
1935*1420*1600
|
410*860
|
650
|
