Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm
-
Cutting Thickness:
-
1mm-20mm
-
Control Software:
-
lasercut5.3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DRAGON DIAMOND
-
Weight (KG):
-
560 KG
-
Operating humidity:
-
5-95
-
Software:
-
RD Work
-
Laser Power:
-
80W/100W/150W---Suitable for cutting
-
Position System:
-
Red Light Pointer
-
Compatible Software:
-
CorelDraw, Photoshop, AutoCAD
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0 -50000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm
-
Cutting Thickness:
-
1mm-20mm
-
Control Software:
-
lasercut5.3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DRAGON DIAMOND
-
Weight (KG):
-
560 KG
-
Operating humidity:
-
5-95
-
Software:
-
RD Work
-
Laser Power:
-
80W/100W/150W---Suitable for cutting
-
Position System:
-
Red Light Pointer
-
Compatible Software:
-
CorelDraw, Photoshop, AutoCAD
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product

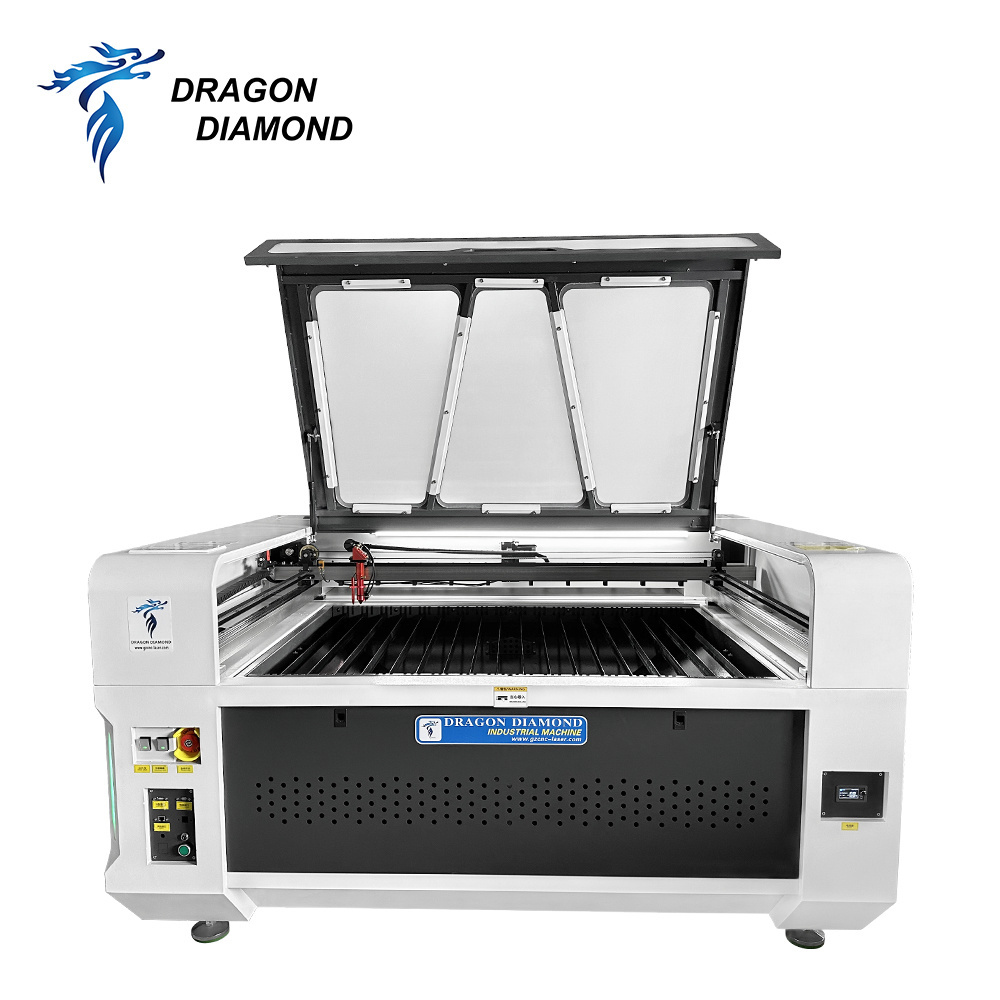

Manufacturer Outlet 100w Leather Laser Cutting Machine 1390 With Low Price
Product Parameters
|
NO. |
Working Area |
1300*900mm |
|
1 |
Table Type |
Blade Sheet table |
|
2 |
Laser tube type |
C02 sealed laser tube |
|
3 |
Laser power |
80W-150W |
|
4 |
Focus Lens |
Improted Lens |
|
5 |
Motor |
Stepper 573S15 |
|
6 |
Driver |
Leadshine driver 3DM580 |
|
7 |
Controller |
Ruida 6445G |
|
8 |
Cooling Function |
Water Chiller CW3000/CW5000/CW5200 |
|
9 |
Machine power |
<3000W |
|
10 |
Software |
RD works |
|
11 |
Power supply |
AC 220V 50/60Hz,single phase |
|
12 |
Graphic format supported |
BMP/JPG/DXF/WMF/EMF/PLT |
|
13 |
Package size |
2000*1650*1300mm |
|
14 |
G.W. |
500KG |
|
15 |
Package |
Wooden Box |
|
16 |
Warranty |
1 year(Laser tube 6 months) |
|
17 |
Optional Parts |
CCD camera,Rotation axis |
