Quick Details
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
5400*5300*1800mm
-
Application:
-
furniture factory, woodworking
-
Weight (KG):
-
4500 KG
-
Power (kW):
-
23
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
100mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Marketing Type:
-
Hot Product 2021
-
Function:
-
wood panels cutting
-
Model:
-
NP280B
-
Max cutting length:
-
2700MM
-
Max cutting thickness:
-
100MM
-
Max. feeding speed:
-
100mm/min
-
Diameter of main saw blade:
-
350mm
-
Diameter of main saw spindle:
-
80mm
-
Rotation speed of main saw blade:
-
4800r/min
-
Rotation speed of scoring saw blade:
-
6900r/min
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOWING
-
Usage:
-
wood panel cutting
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
5400*5300*1800mm
-
Application:
-
furniture factory, woodworking
-
Weight (KG):
-
4500 KG
-
Power (kW):
-
23
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
100mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Marketing Type:
-
Hot Product 2021
-
Function:
-
wood panels cutting
-
Model:
-
NP280B
-
Max cutting length:
-
2700MM
-
Max cutting thickness:
-
100MM
-
Max. feeding speed:
-
100mm/min
-
Diameter of main saw blade:
-
350mm
-
Diameter of main saw spindle:
-
80mm
-
Rotation speed of main saw blade:
-
4800r/min
-
Rotation speed of scoring saw blade:
-
6900r/min
Product Description

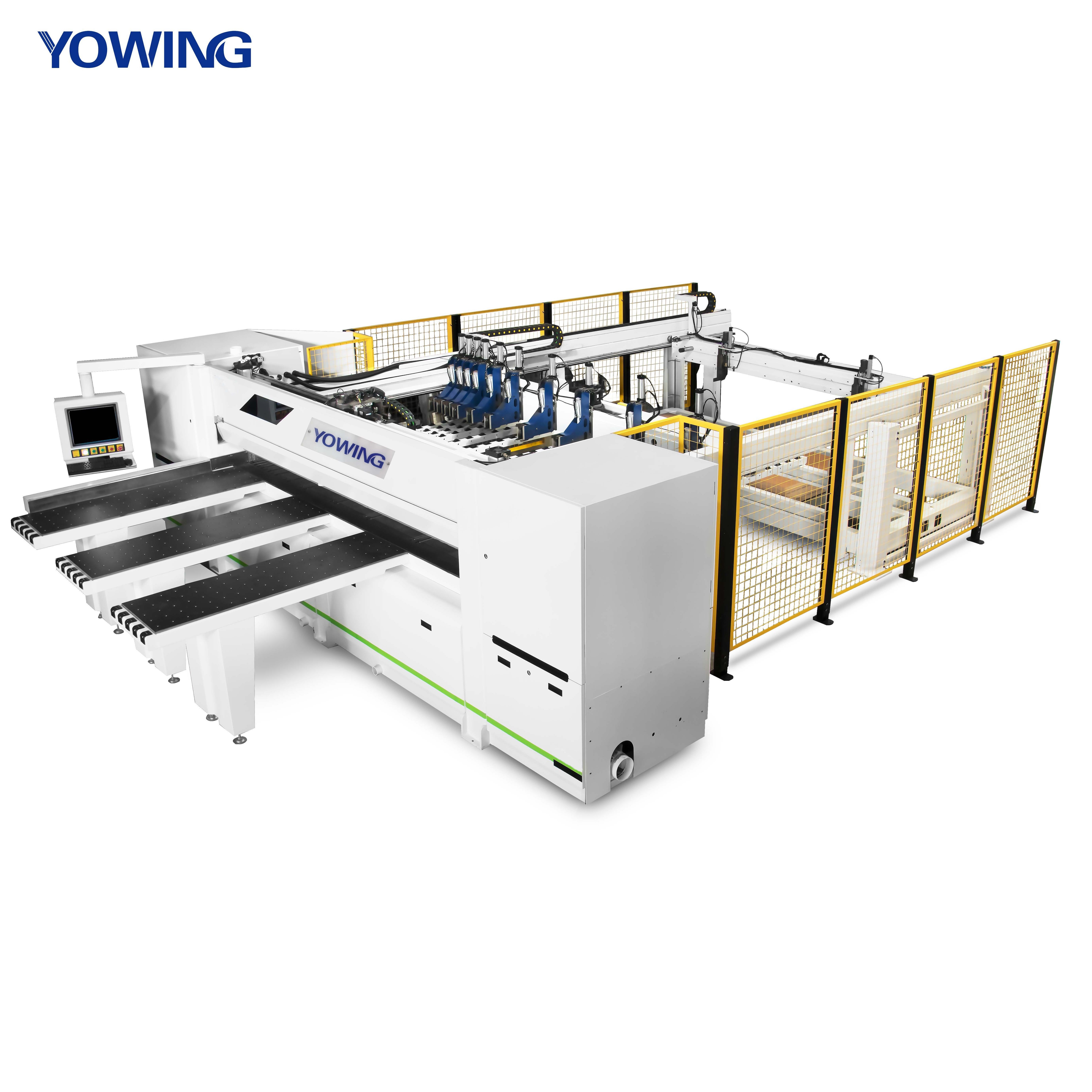

Woodworking CNC Beam Panel Saw Wood Cutting Sawing Machine
Features:
Features:
1. According to the input plate width, cut the required plate and quickly return to the original working state.
2. Cutting speed is controlled by frequency converter, which can overcome plates of different thickness and different materials.
3. The feeding adopts pneumatic floating bead table, and the heavy plate material is easy to change. The robot automatically
feeds, has low labor intensity and high production efficiency.
4. Use imported Delta servo motor to eliminate artificial error and improve dimensional accuracy
2. Cutting speed is controlled by frequency converter, which can overcome plates of different thickness and different materials.
3. The feeding adopts pneumatic floating bead table, and the heavy plate material is easy to change. The robot automatically
feeds, has low labor intensity and high production efficiency.
4. Use imported Delta servo motor to eliminate artificial error and improve dimensional accuracy
Machine Details
air floating work table
Equipped with 3 pcs air floating work table, by the help of air blower, we can load the heavy panels on worktable easily, and not damage the panel surface
.
Pneumatic feeding gripper
11pcs hydraulic feeding gripper, can hold the panels tightly, ensure stable feeding while machine running.
.
High accuracy speed reducer
Equipped with high accuracy speed reducer, to ensure the cutting tolerace within ±0.02mm
Strong hardware
Germany guide rail and helical gear rack, to ensure smooth moving while machine running
Electric component
Equipped with Taiwan Fatek PLC, Germany Schneider electric components, to ensure stability of the electric parts, cause less
electricity trouble
electricity trouble
Easy operate control system
Processing Wood Samples
Application:
The cnc panel saw can be used to cut other materials besides wood , such as acrylic, plastic.
The electronic cutting saw has a wide range of uses.
Because of its high rotation speed, the electronic cutting saw can be widely used in: precision casting of furniture factories, electrical appliances factories, garment factories, toy factories, hardware factories, etc.
Processing Materials:
Plexiglass, light guide plate, circuit board, large core board, MDF board, wood-based board, artificial stone, aluminum-plastic board, MDF board, MDF, flower board, ABS board, PVC board, PS board, PET board, Grating plate, artificial leather, synthetic stone, solid wood and other materials are used. It can also be used to cut hardboards such as gypsum board and laminate flooring.
Specification
|
Model
|
NP280HS
|
NP330HS
|
NP380HS
|
|
Max cutting length
|
2800mm
|
3300mm
|
3800mm
|
|
Max cutting width
|
2700mm
|
2700mm
|
2700mm
|
|
Max cutting thickness
|
100mm
|
100mm
|
100mm
|
|
Max cutting thickness
|
100m/min
|
100m/min
|
100m/min
|
|
Diameter of main saw blade
|
350mm
|
350mm
|
350mm
|
|
Diameter of main saw spindle
|
80mm
|
80mm
|
80mm
|
|
Rotation speed of main saw blade
|
4800r/min
|
4800r/min
|
4800r/min
|
|
Diameter of scoring saw blade
|
180mm
|
4800r/min
|
4800r/min
|
|
Diameter of scoring saw blade
|
45mm
|
45mm
|
45mm
|
|
Rotation speed of scoring saw blade
|
6900r/min
|
6900r/min
|
6900r/min
|
|
Forward speed of saw carriage
|
100m/min
|
100m/min
|
100m/min
|
|
Backward speed of saw carriage
|
150m/min
|
150m/min
|
150m/min
|
|
Main saw motor
|
15kw
|
15kw
|
16kw
|
|
Scoring saw motor
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Automatic feeding motor
|
1.5kw
|
1.5kw
|
1.5kw
|
|
Drive motor of saw carriage
|
2.2kw
|
2.2kw
|
2.2kw
|
|
High pressure air blower
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Total power consumption
|
22kw
|
22kw
|
23kw
|
|
Table height from floor
|
950mm
|
950mm
|
950mm
|
|
Machine dimension
|
6400x6300x1800mm
|
7000x6800x1800mm
|
7400x7000x1800mm
|
Company Profie
"YOWING MACHINERY,Located in China woodworking machinery important town: Lunjiao, Focusing on the development of full range of furniture and wooden door machinery equipment,providing furniture and wood door companies with solutions for whole factory planning and automatical production lines,presenting our customers with excellent quality,efficient and stable products and high-quality service.
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
