Quick Details
-
Brand Name:
-
The Nile CO., LTD
-
Dimension(L*W*H):
-
1000*870*`990mm
-
Weight:
-
0.7t, 0.7t
-
Max feeding size:
-
125mm
-
Discharge size:
-
10-40mm
-
Capacity:
-
1-3t/h
-
Motor power:
-
5.5kw
-
Rotation speed:
-
260r/min
-
Color:
-
As your required
-
MOQ:
-
1
-
OEM:
-
Yes
-
Factory visit:
-
welcome
-
Local Service Location:
-
Kenya
-
After-sales Service Provided:
-
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO, CE
Quick Details
-
Application:
-
Rock Stone Crusher
-
Capacity(t/h):
-
1-3
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
The Nile CO., LTD
-
Dimension(L*W*H):
-
1000*870*`990mm
-
Weight:
-
0.7t, 0.7t
-
Max feeding size:
-
125mm
-
Discharge size:
-
10-40mm
-
Capacity:
-
1-3t/h
-
Motor power:
-
5.5kw
-
Rotation speed:
-
260r/min
-
Color:
-
As your required
-
MOQ:
-
1
-
OEM:
-
Yes
-
Factory visit:
-
welcome
-
Local Service Location:
-
Kenya
-
After-sales Service Provided:
-
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO, CE
Product Description

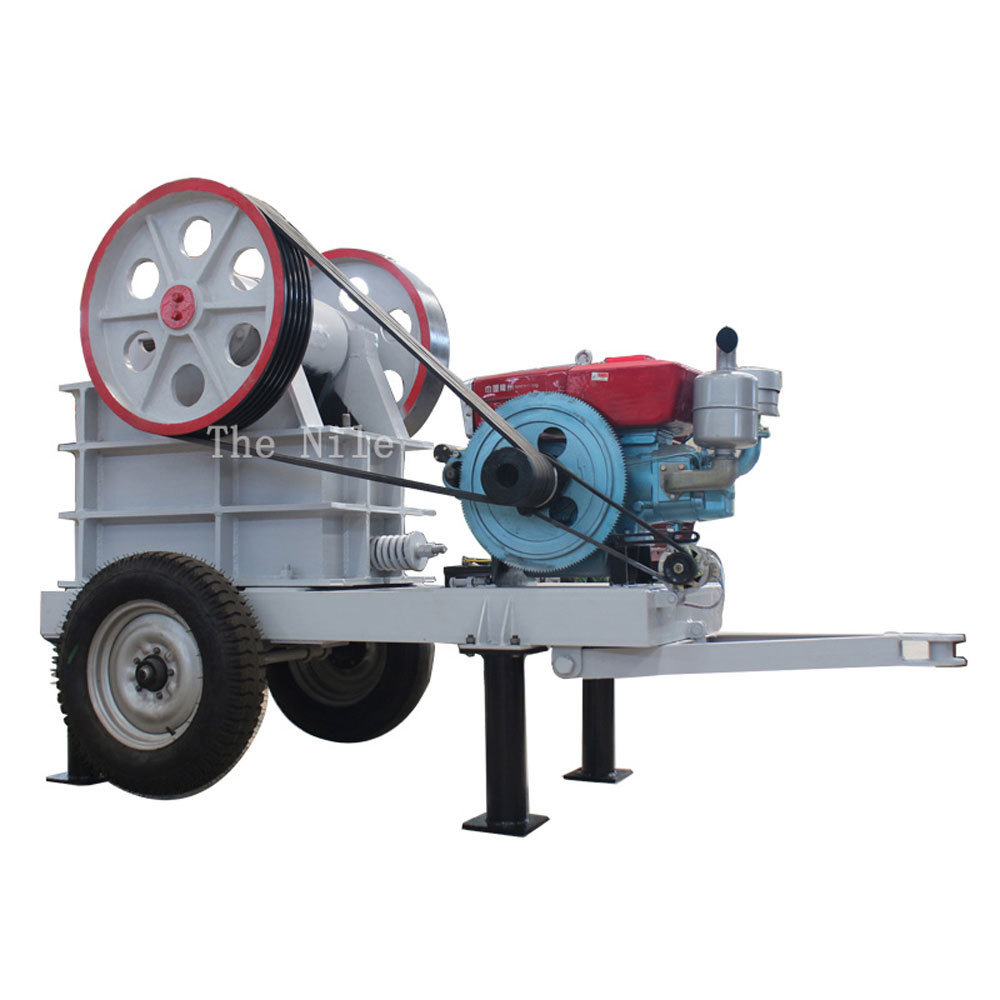

Diesel Mobile Jaw Crusher
Diesel mobile jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently.
Features
1. Be movable and drive by diesel engine if the working site is limited
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust
Application
Processing Material:
Granite, Basalt, Quartz, Gold Ore, Copper Ore, Iron Ore, River Pebbles, Marble.etc
Granite, Basalt, Quartz, Gold Ore, Copper Ore, Iron Ore, River Pebbles, Marble.etc
How to Work
The working principle of the jaw crushers is very simple. Powered by a diesel or gas motor, the jaw crusher brakes materials in a crushing chamber. The materials are pushed inside the chamber from the top opening and when crushed they are released through the bottom opening.
Technical Data
|
Model
|
Max.Feeding Size
(mm)
|
Discharging Size
(mm)
|
Capacity
(t/h)
|
Motor Power
(kw)
|
Weight
(t)
|
|
PE150*250
|
125
|
10-40
|
1-3
|
5.5
|
0.7
|
|
PE250*400
|
210
|
20-60
|
5-20
|
15
|
2.8
|
|
PE400*600
|
340
|
40-100
|
16-60
|
30
|
7
|
|
PE400*900
|
340
|
40-100
|
40-110
|
55
|
7.5
|
|
PE500*750
|
425
|
50-100
|
40-110
|
55
|
12
|
|
PE600*900
|
500
|
65-160
|
50-180
|
75
|
17
|
|
PE750*1060
|
630
|
80-140
|
110-320
|
90
|
31
|
|
PE900*1200
|
750
|
95-165
|
220-450
|
160
|
52
|
|
PE1000*1200
|
850
|
195-265
|
315-500
|
160
|
55
|
|
PE1200*1500
|
1020
|
150-350
|
400-800
|
220
|
93
|
|
PE1500*1800
|
1200
|
220-350
|
500-1000
|
280
|
122
|
|
PEX150*750
|
120
|
18-48
|
8-25
|
15
|
3.8
|
|
PEX250*750
|
210
|
15-60
|
13-35
|
30
|
6.5
|
|
PEX250*1000
|
210
|
15-60
|
16-52
|
37
|
7
|
|
PEX250*1200
|
210
|
15-60
|
20-61
|
45
|
9.7
|
|
PEX300*1300
|
250
|
20-90
|
16-105
|
55
|
15.6
|
