Quick Details
-
Material:
-
All aluminum alloy without fan
-
Operating System:
-
Win7/10/linux/Ubuntu
-
Product name:
-
industrial control computer Mini host
-
Warranty:
-
1 Year
-
Display:
-
1*VGA,...
-
Product Application:
-
Rackmount Network Appliance
-
Graphics:
-
Intel HD Graphics
-
LAN:
-
2*Intel WGI211AT Gigabit network card
-
Condition:
-
Tested 100% Perfect
Quick Details
-
Type:
-
Industrial Computer Accessories
-
Place of Origin:
-
Sichuan, China
-
Installation method:
-
Desktop/embedded
-
Material:
-
All aluminum alloy without fan
-
Operating System:
-
Win7/10/linux/Ubuntu
-
Product name:
-
industrial control computer Mini host
-
Warranty:
-
1 Year
-
Display:
-
1*VGA,...
-
Product Application:
-
Rackmount Network Appliance
-
Graphics:
-
Intel HD Graphics
-
LAN:
-
2*Intel WGI211AT Gigabit network card
-
Condition:
-
Tested 100% Perfect
Usingwin
Mini host Win7 8 9 10 system
2 Gigabit Lan Intel Atom N2600
fanless industrial mini pc desktop computer
Product details
|
Model
|
B28Z
|
|
|
Software support
|
Microsoft
|
Win7/XP, 64bit (without key)
|
|
|
Linux
|
Ubuntu
|
|
Case
|
Material/structure
|
All aluminum alloy fanless
|
|
|
Dimensions
|
182*107*63.5mm
|
|
|
Installation
|
Desktop/embedded
|
|
Processor system
|
CPU
|
Integrated Intel® Atom N2600 dual-core four-thread processor
|
|
|
Main frequency
|
1.86 GHz
|
|
|
System chip
|
Intel® NM10 Express Chipset
|
|
|
BIOS
|
16Mb Flash ROM
|
|
RAM
|
Technology
|
DDR3L 1333/1066MHz
|
|
|
Maximum capacity
|
4GB
|
|
|
Slot
|
1*SODIMM
|
|
Display
|
Chipset
|
Integrated Intel® 3600 Graphics
|
|
|
Graphics engine
|
N/A
|
|
Ethernet
|
LAN1/2
|
1*Realtek RTL8111F Gigabit network card, support Wake on LAN, PXE function
|
|
Audio
|
Interface
|
1*AUDIO, integrated ALC662 6-channel high-fidelity audio controller
|
|

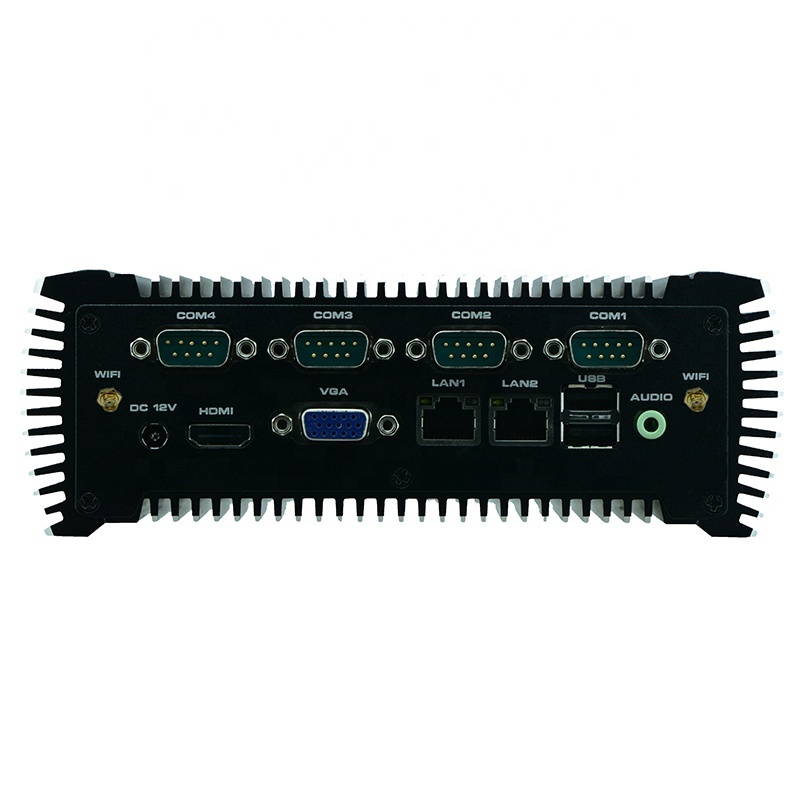

I/O interface
|
Serial interface
|
Support 6* COM(RS232), COM2 supports RS485/RS422 function
|
|
|
USB
|
6* USB2.0,1*VGA
|
|
|
SIM
|
1* SIM card slot
|
|
|
Phoenix Terminal
|
N/A
|
|
Expand
Storage
|
Mini PCIE
|
1* Mini PCIE slot, support WIFI/4G module
|
|
|
SATA
|
1*2.5 hard disk expansion
|
|
|
Solid state disk
|
1* MSATA SSD expansion, SSD transmission speed up to 6Gbps
|
|
Power requirement
|
Power type
|
External power adapter
|
|
|
Power output
|
AC TO DC, 36W/60W (optional)
|
|
|
Voltage input
|
DC12V
|
|
Environment
|
Operating Temp.
|
-10℃～60℃
|
|
|
Storage Temp.
|
-20℃～70℃
|
|
|
Relative humidity
|
5%-95% relative humidity, non-condensing
|
|
|
Job vibration
|
0.5g rms/5-500HZ/random/operating
|
