Quick Details
-
Warranty:
-
3months-1year
-
Brand Name:
-
KEEPTEEN
-
Model Number:
-
BL25A
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
8*25*35cm
-
Working Volt:
-
Max 5V
-
Material:
-
Monocrystalline silicon
-
surface:
-
Tempering Glass
-
Capacity:
-
25000mAh
-
Working Power:
-
10W
-
Output Voltage:
-
12V/2A, 9V/2.6A, 6V/4A
-
Cable length:
-
1M
-
Remove Control:
-
Yes or No(optional)
-
battery:
-
10pcs 18650 battery
-
Plug:
-
DC5.5*2.1mm, DC4.0*1.7mm, DC3.5*1.35mm,
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
Standard
-
Panel Efficiency:
-
22%
-
Warranty:
-
3months-1year
-
Brand Name:
-
KEEPTEEN
-
Model Number:
-
BL25A
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
8*25*35cm
-
Working Volt:
-
Max 5V
-
Material:
-
Monocrystalline silicon
-
surface:
-
Tempering Glass
-
Capacity:
-
25000mAh
-
Working Power:
-
10W
-
Output Voltage:
-
12V/2A, 9V/2.6A, 6V/4A
-
Cable length:
-
1M
-
Remove Control:
-
Yes or No(optional)
-
battery:
-
10pcs 18650 battery
-
Plug:
-
DC5.5*2.1mm, DC4.0*1.7mm, DC3.5*1.35mm,

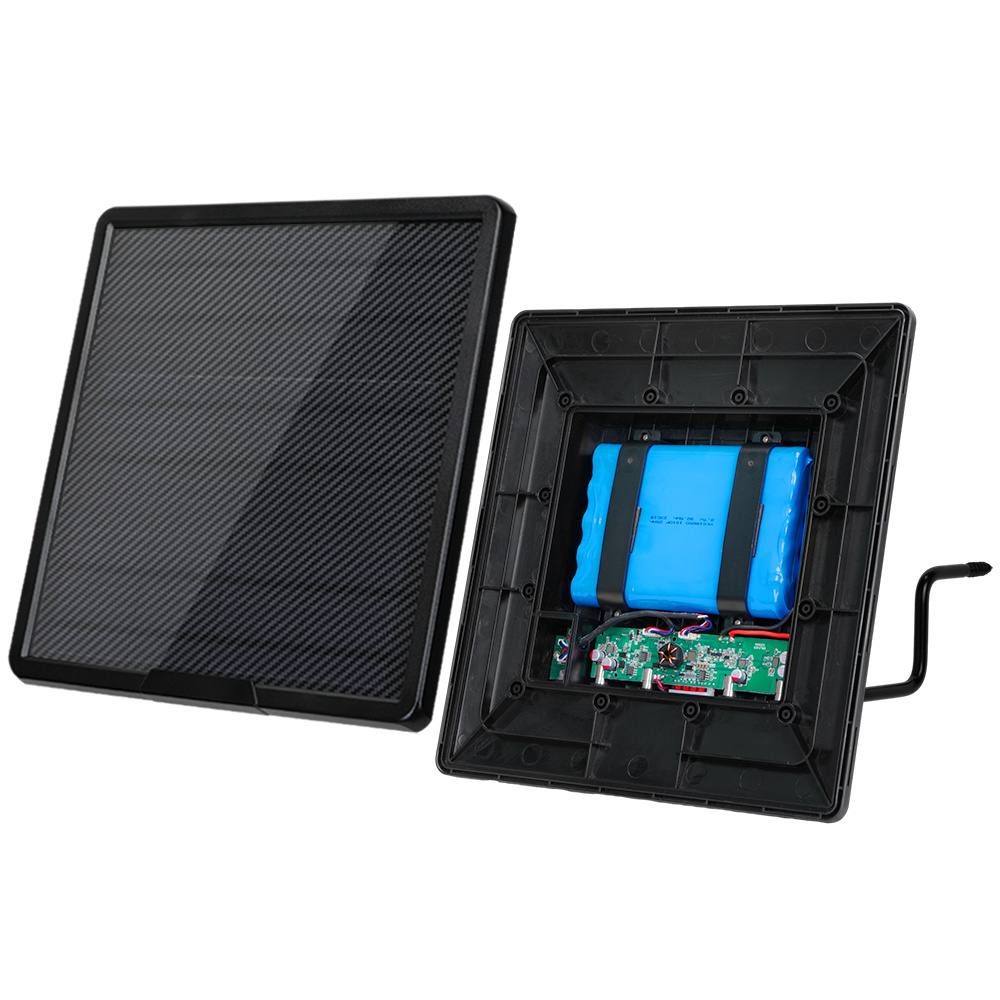

25000mAh Large Capacity Solar Power Pack IP66 Type-C Fast Charging Solar Panel Kit Complete for 4G Trail Hunting Secruity Camera
Features:
1. Adopt carbon fiber panel, more compact and lighter.
2. High-end Smart IC
Adjust the charging current by detecting the current, reducing the risk of burnout.
3. MMPT IC(Maximum Power Point Tracking)
Maximize the use and conversion of solar energy.
4. Using high-end solid capacitors
Avoiding the phenomenon of overheating and burning the shell.
5. Bulit-in 10pcs 2600mAh 18650 Li Battery
6. 5V-28V Input Voltage
The Max. input voltage can reach 28V, and the charging current can reach 4A. Suitable for most of outdoor products, such as deer feeder, Trail Camera, outdoor lights, cellphone and so on.
6.Outdoor Solar Quick Charge
Supporting TPYE-C and USB 20W fast charge, so that you needn't worry about the mobile phone or laptop power even in outdoors.
7.IP66 Waterproof
Usage:
Charge Hunting Trail Camera
Charge Feeder
Charge power bank
Charge cell phone
Charge all kinds of outdoor Electronics product
10w Solar Panel built in battery 25000maH
|
||
| Solar Panel |
PCE
(conversion efficiency) |
23% |
| Working Power | 10W | |
| Working Volt | 6V | |
| Material | Monocrystalline silicon | |
| Surface | PET | |
| Size | 270 X 260 mm | |
| Battery | Battery Power | 92.5WH |
| Battery Voltage | 3.7V | |
| Capacity | 25000mAH | |
| Circuit Combination | 10 2600mAh 18650 batteries in parallel | |
| Input | Charging Time | 24 hours if Charging by DC 5V/2A |
| 15 hours if charging by sunshine (Full sunshine) | ||
| Output | Output Voltage | 12V/2A 9V/2.67A 6V/4A |
| Circuit Protection | Yes | Short circuit reverse connection protection |
| Overcharging protection | ||
| Interface | Plug |
DC 5.5x2.1mm
DC 4.0x1.7mm DC 3.5X1.35mm USB Type-C |
| Installation | 2 kinds | Tree Belt / Tripod Mount |
| LED indicator | Indactes Power Level and Charging Status | |
| Working Temperature | -20℃~60℃(-4℉~140℉) | |
| Waterproof | IP66 | |
| Size | Product Size | 270 X 260 X 55 mm |
| Weight | Product Weight | 2.08kg |
| Accessories |
1X BL25A Solar Panel
1X 5.5/2A charger 1X 5.5x2.1mm output cable 1X 4.0X1.7mm output cable 1X 3.5X1.35mm output cable 1X USB charging cable 1X USB-Type C cable 1X Tree Mount 1X Belt 1X Manual |
|
| Certification | CE/FCC/Rohs | |
