Quick Details
-
Gross Vehicle Weight:
-
11000
-
Place of Origin:
-
China
-
Product name:
-
for Canada 1.5 tons 1.55m3 stainless steel water tank truck 5000 L 4x4
-
Tank material:
-
Stainless Steel
-
Color:
-
Customer's Require
-
Driving type:
-
8X4/6X4/4X2 Water Transport Tanker Truck
-
Chassis brand:
-
Dongfeng
-
Certification:
-
ISO9001 CCC
-
Tire:
-
9.00-20
-
Engine:
-
Dongfeng
-
Emission standard:
-
Euro2/3/4/5
-
Type:
-
Watering
Quick Details
-
Condition:
-
New
-
Drive Wheel:
-
4X2
-
Brand Name:
-
beiben
-
Gross Vehicle Weight:
-
11000
-
Place of Origin:
-
China
-
Product name:
-
for Canada 1.5 tons 1.55m3 stainless steel water tank truck 5000 L 4x4
-
Tank material:
-
Stainless Steel
-
Color:
-
Customer's Require
-
Driving type:
-
8X4/6X4/4X2 Water Transport Tanker Truck
-
Chassis brand:
-
Dongfeng
-
Certification:
-
ISO9001 CCC
-
Tire:
-
9.00-20
-
Engine:
-
Dongfeng
-
Emission standard:
-
Euro2/3/4/5
-
Type:
-
Watering

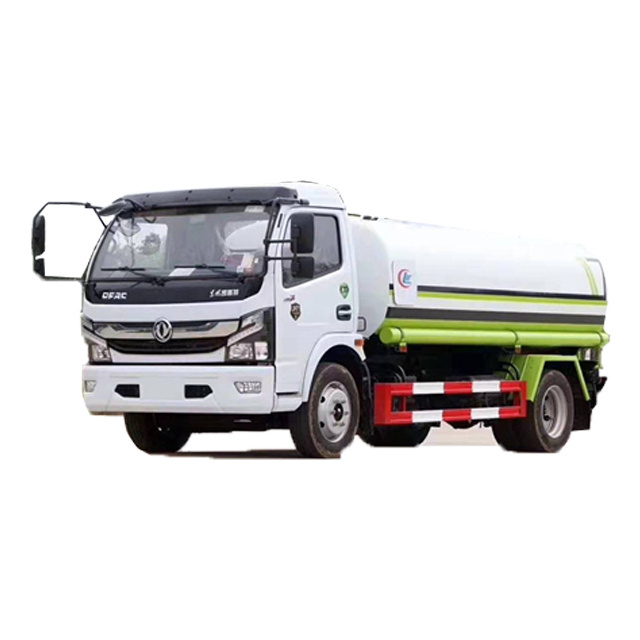

for Canada 1.5 tons 1.55m3 stainless steel water tank truck 5000 L 4x4
Multi-functional green sprinkler
- Used in urban roads, large factories, troops, gardens and other units to clean the road, sanitation, dust, watering, spraying pesticides, to achieve the role of beautifying the environment.
- Used for temporary emergency fire sprinkler, each sprinkler is equipped with special fire interface.
Selling points
- Engine drives the gearbox, the force extractor drives the sprinkling pump, which generates the main power, and the liquid inside the tank is sprayed through the pipe network.
- Self-suction height :≤7m, sprinkler width :≥20m, maximum range :≥28m;Can be adjusted into a columnar, range ≥28m;Can also be adjusted into fog, range ≥5m.
- Spray before and spray after, before installing duck nozzle or round head nozzle, after installing cylinder to open sprinkler nozzle or showerhead nozzle
- The rear working platform is equipped with water cannon.8 nozzles (optional)
- The sprinkler is used to wash the street fog gun sprinkler, the anti-fog long distance air spray machine, can atomize the tap water and spray water mist 600 meters away, on the haze, dust is bigger construction site dust and cooling effect
- Vehicle-mounted large fog gun can spray 120 meters far, 70 meters high water mist, compared to the ordinary sprinkler, fog gun car ejected water mist particles are very small
- The new 10-ton water cannon can spray for one hour, covering an area of more than 30,000 square meters, greatly improving the utilization rate of water resources.
|
outside dimension (L×W×H)mm |
6975×2490×2690 |
|
Loading mass |
5,000 Kg |
|
Kerb mass |
5,600 Kg |
|
Chassis Model /Manufacturer |
EQ1108KJ |
|
driving type |
4×2 |
|
Cabin |
Flat head, tippable, double doors, with A/C |
|
Wheelbase |
3950 mm |
|
Engine |
|
|
model |
B190-33 / 190HP |
|
Type |
Diesel, turbo-charging and Mechanical fuel injection pump inner EGR Euro 3 |
|
Max. power/rotated speed |
140(KW) /2500(rpm) |
|
Displacement(ML) |
5900 |
|
Company of engine |
Dongfeng |
|
Compression ratio |
(17.5±0.5):1 |
|
Gear box: 6 FORWARDS; |
|
|
clutch |
Φ350mm diaphragm clutch |
|
Front axle |
Elliot I-beam type Dongfeng 3.6T |
|
Rear axle |
full-floating axle shaft, single reduction hypoid gear, Dongfeng 9T |
|
Tyre |
9.00-20(6+1spart tyre) |
|
Max Speed |
90 Km/h |
|
air condition |
With |
|
Volume of tank |
5m3 |
|
Thickness of tank |
4mm |
|
Equipped with pump(suction lift:7.5m) |
|
|
Equipped with front(rear,side)sprinkler(sprinkling width≥24m ) |
|
|
Equipped with pump(suction lift:7.5m) |
|
|
Rating speed rotation: 1450r/min |
|
|
Flux: 60m3/h |
|
