Quick Details
-
Mounting Type:
-
metal bracket
-
Description:
-
sensing magnetic
-
Model Number:
-
SR18-10DN
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aotoro
-
Theory:
-
position sensor
-
Output:
-
NPN
-
Approved:
-
CCC CE
-
output voltage:
-
10-30VDC
-
testing distance:
-
10mm
-
DIA:
-
M18/cylinder
-
material:
-
metal
-
protection:
-
IP67
-
packaging:
-
standard
-
output method:
-
NPN ON
-
Model:
-
SR18-10DN
-
detect object:
-
magnetic
Quick Details
-
Use:
-
industrial automation
-
Series:
-
SENSOR
-
Features:
-
Hall effect
-
Mounting Type:
-
metal bracket
-
Description:
-
sensing magnetic
-
Model Number:
-
SR18-10DN
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aotoro
-
Theory:
-
position sensor
-
Output:
-
NPN
-
Approved:
-
CCC CE
-
output voltage:
-
10-30VDC
-
testing distance:
-
10mm
-
DIA:
-
M18/cylinder
-
material:
-
metal
-
protection:
-
IP67
-
packaging:
-
standard
-
output method:
-
NPN ON
-
Model:
-
SR18-10DN
-
detect object:
-
magnetic
Product Description
Hall sensor is a kind of magnetic field sensor based on Hall effect, which is widely used in industrial automation technology, detection technology and information processing.
Hall effect: is the nature of the material of the solid carrier movement in plus a magnetic field, due to the effect of lorentz force and make the trajectory deviation occurs, and electrical charges on both sides of material accumulation, the formation of perpendicular to the direction of current electric field, eventually make the carrier by the lorentz force and electric repulsion balance, so as to establish a stable electric potential difference on two sides the hall voltage.
|

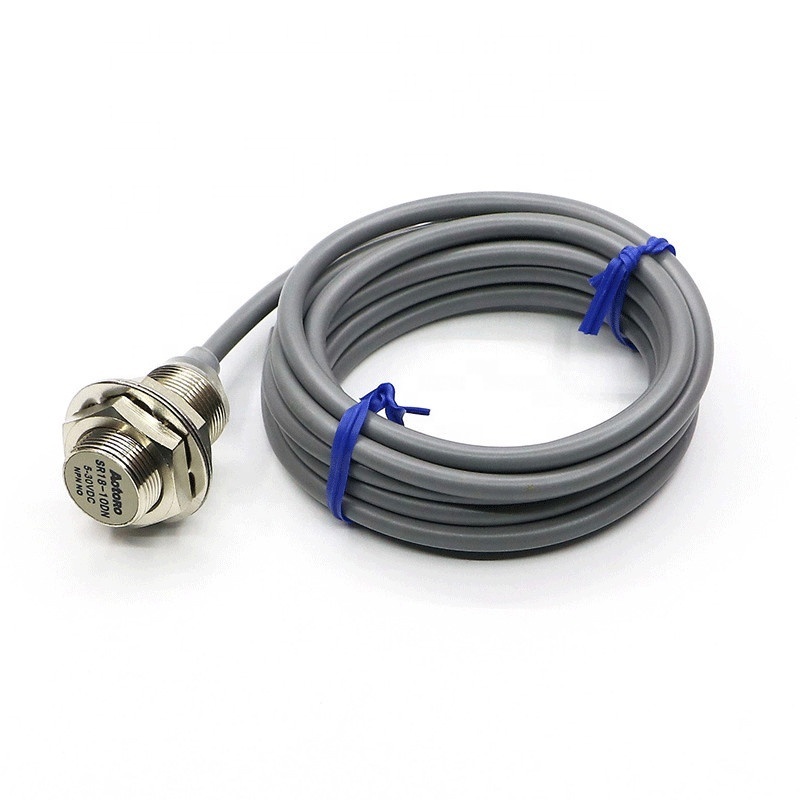

Model number
|
SR18-10DN
|
Feature
|
Hall effect sensor
|
|
Output method
|
NPN NO 3wires
|
Diameter
|
18mm
|
|
Detect distance
|
10mm
|
Output voltage
|
12-24vdc
|
|
Material
|
Nickel plated brass
|
Cable length
|
2meters
|
Applying Hall principle for detecting existing of magnet
Only for detecting permanent magnet
Cylinder type .simply mounting and reliably working
High response frequency .Could achieve 5khz
