Machine For Printing, 4 Color Flexo Printing Paper Machine, Flexographic Printing Machines For Sale

Machine For Printing, 4 Color Flexo Printing Paper Machine, Flexographic Printing Machines For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V

Gross Power:: 9.8kw

Dimensions(L*W*H):: 4500x1600x2400mm

Weight:: 3500kg

Certification:: ISO, CE

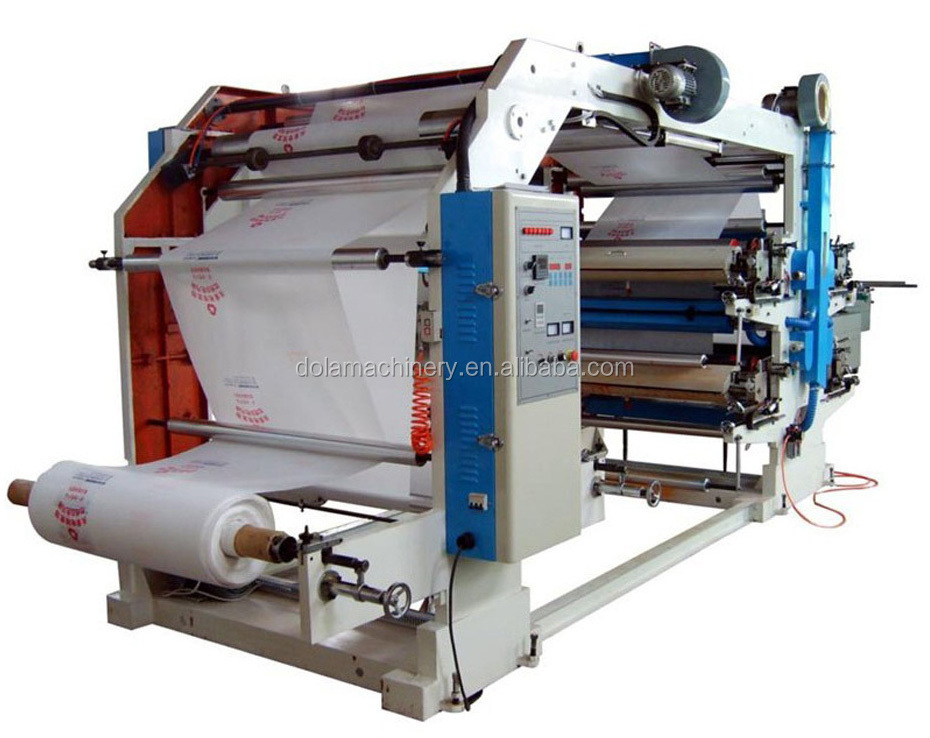

Name:: 4 Colour Flexo Printing Machine

Printing speed:: 5-60m/min

Printing color:: 1-4 color

Printing Length:: 190-914mm

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DOLA

Model Number:: YT-4600, YT-4800, YT-41000

Voltage:: 220V/380V

Gross Power:: 9.8kw

Dimensions(L*W*H):: 4500x1600x2400mm

Weight:: 3500kg

Certification:: ISO, CE

Name:: 4 Colour Flexo Printing Machine

Printing speed:: 5-60m/min

Printing color:: 1-4 color

Printing Length:: 190-914mm

Product Description

Use

Introduce sentitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Character

1. Easy operation, flexible starting accurate colour register.
2. The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4. The printing ink is spread by the knurled cylindder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 degree continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Optional Devices

EPC web guider + Auto tension controller

Digital Corona Treater

Air Shaft

Technical Parameters

Model	YT-4600	YT-4800	YT-41000	YT-41200
Max. Material Width	600mm	800mm	1000mm	1200mm
Max. Printing Width	560mm	760mm	960mm	1160mm
Printing Length	190-914mm
Printing Speed	5-60m/min
Plate Thickness (including two-sided glue paper)	2.38mm
Total Power	9.8kw	10.5kw	11.2kw	12kw
Machine Weight	3000kg	3500kg	4000kg	4500kg
Overall Dimension	4.5×1.6×2.4m	4.5×1.8×2.4m	4.5×2.0×2.4m	4.5×2.2×2.4m

Photos

Packing & Shipping

Factory Workshop

Certifications

Customers

Service&Contact

Service

1. Installation & Training Services
Training the buyers in seller's factory by free charge; or install / debug the machines in buyer's factory, the buyers will charge for the cost.
2. After Sales Service
One year Guarantee without man made.
