Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
12
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PMSK
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
4500x3500x4000MM
-
Power (kW):
-
15
-
Weight (KG):
-
8000
-
Product name:
-
5 Axis Cnc Router Engraving Machine
-
Machine model:
-
P9-1313/P9-1325/P9-1531
-
XYZ axis travel range:
-
2060x3680x950mm
-
AC axis travel range:
-
A axis:±185° C axis:±320°
-
Drive motor:
-
Servo Motor Driver
-
Spindle:
-
9.0KW atc Spindle
-
Travelling speed:
-
60m/min,50m/min,50m/min
-
Magazine:
-
8 pieces/disc
-
Table structure:
-
Aluminum profile T-slot table
-
Application:
-
3D processing of metal, stone, wood, etc
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
12
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PMSK
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
4500x3500x4000MM
-
Power (kW):
-
15
-
Weight (KG):
-
8000
-
Product name:
-
5 Axis Cnc Router Engraving Machine
-
Machine model:
-
P9-1313/P9-1325/P9-1531
-
XYZ axis travel range:
-
2060x3680x950mm
-
AC axis travel range:
-
A axis:±185° C axis:±320°
-
Drive motor:
-
Servo Motor Driver
-
Spindle:
-
9.0KW atc Spindle
-
Travelling speed:
-
60m/min,50m/min,50m/min
-
Magazine:
-
8 pieces/disc
-
Table structure:
-
Aluminum profile T-slot table
-
Application:
-
3D processing of metal, stone, wood, etc
Products Description

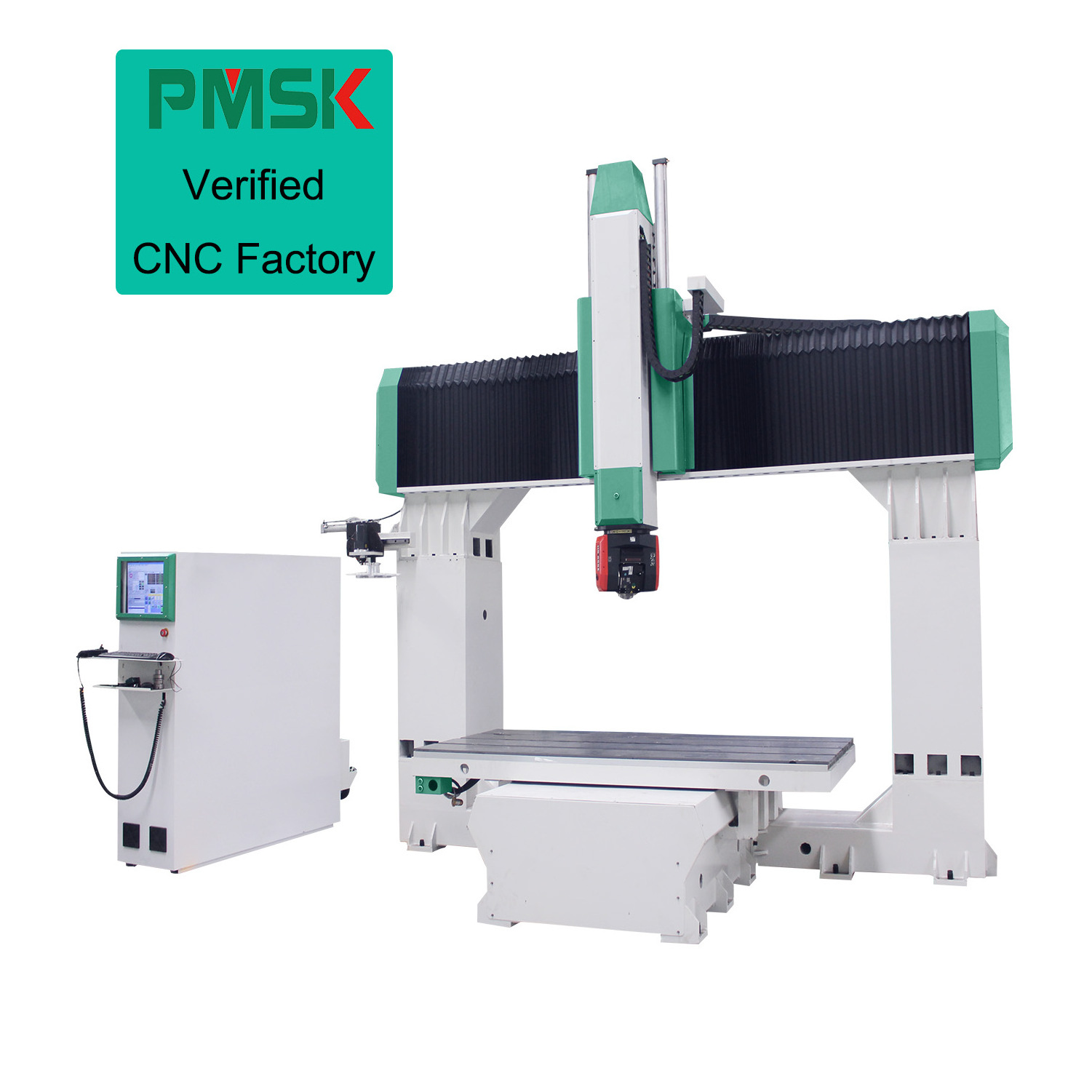

Factory Cnc Router 5 Axis Wood Router Cnc Woodworking Machine 5axis
Cnc Milling Carving Machine
Product Paramenters
|
Model
|
P9
|
|
|
|
|||
|
XYZ axis travel range
|
2060x3680x950mm
|
|
|
|
|||
|
AC axis travel range
|
A axis:±185° C axis:±320°
|
|
|
|
|||
|
Max working size
|
1560x3080x700mm or Customizable
|
|
|
|
|||
|
Travelling speed
|
60m/min
|
|
|
|
|||
|
Transmission
|
Y axis gear rack/XZ axis ball screw
|
|
|
|
|||
|
spindle parameter
|
10KW/24000rpm、12KW/24000rpm、12KW/24000rpm or Customizable
|
|
|
|
|||
|
Magazine
|
8 pieces/disc
|
|
|
|
|||
|
Table structure
|
Aluminum profile T-slot table
|
|
|
|
|||
|
Drivering system
|
servo motors
|
|
|
|
|||
Details Images
ASolvable processing:
1,There is one more rotation axis above the four axes, which is generally 360°rotation on the vertical surface.
2,The five axes can already be fully processed, which can realize one-time clamping, which can reduce clamping costs and reduce product scratches.
3,It is suitable for processing more Pores and planes of the workstation, parts with high machining accuracy requirements, especially parts with strict shape machining accuracy requirements.
4,With RTCP function, it is especially suitable for large-scale three-dimensional surface processing and modeling.
