Quick Details
-
Technology:
-
1080p
-
Resolution:
-
5mp
-
Product name:
-
Hot Sale 1080N 1080P 4MP 5 IN 1 CVI TVI AHD CVBS 4CH cctv DVR Recorder
-
Lens:
-
3.6mm
-
Keyword:
-
5mp cctv dvr
-
Feature:
-
P2P Cloud and night vision
-
Warranty:
-
1 Year
-
Color:
-
White
-
Video Compression:
-
H.264/MJPEG
-
Material:
-
Metal
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
LS-4004H
-
Technology:
-
1080p
-
Resolution:
-
5mp
-
Product name:
-
Hot Sale 1080N 1080P 4MP 5 IN 1 CVI TVI AHD CVBS 4CH cctv DVR Recorder
-
Lens:
-
3.6mm
-
Keyword:
-
5mp cctv dvr
-
Feature:
-
P2P Cloud and night vision
-
Warranty:
-
1 Year
-
Color:
-
White
-
Video Compression:
-
H.264/MJPEG
-
Material:
-
Metal
Hot Sale 5MP 5 IN 1 CVI TVI AHD CVBS 4CH cctv DVR

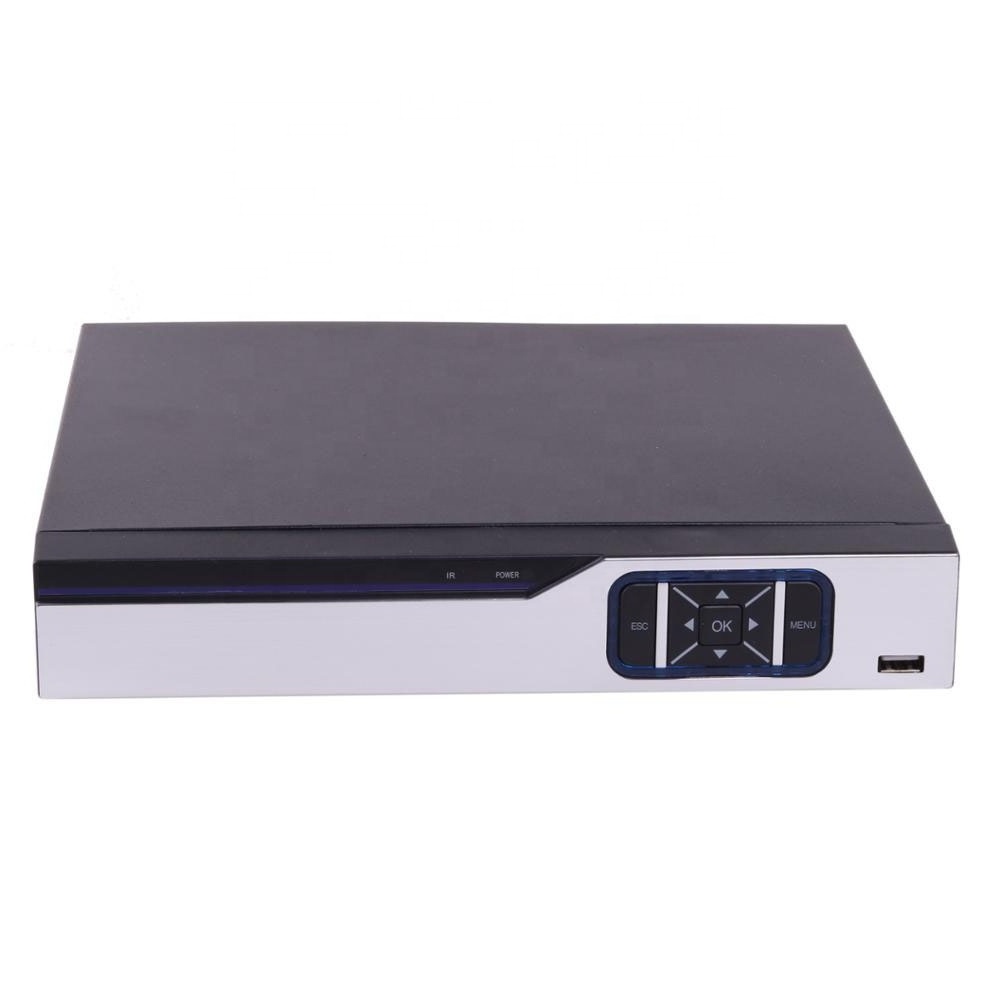

Product photos
Product Description
| Specification: | ||
| System | Main processor | Hi3531A |
| Interface | Preview | 1/4/8/9/16 |
| Video | Codec | H.264+/H.264 |
| Monitor quality | VGA(1080P at most);Hd(4K at most) | |
| Preview ability | 16*5M@15fps(AHD)/ 16*3M@18fps(AHD)/16*1080P(5 in 1) | |
| Encode ability | 16*4M@8fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @15fps (5 in 1) / 16*720P(5 in 1) | |
| Decode ability | 8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/16*1080P @15fps (5 in 1) / 16*720P(5 in 1) | |
| Multi-mode | analog:16*4M; 16*960H; 16*TVI; 16*CVI; | |
| input | hybrid: 8*4M(analog)+8*4M(network) | |
| network:8*3M ;4*5M | ||
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set | |
| (Limited local channel) | ||
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record & | Record mode | manual>alarm>motion detection>timing |
| playback | Local Playback | 8ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel | |
| Storage & | Video storage | HDD, network |
| backup | Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input | 16ch BNC |
| Loop Vout | N/A | |
| Audio I/O | 2(Can be extended to 6ch)/1 | |
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
| Network interface | RJ45 10M/100M self-adaption | |
| PTZ control | 1*RS485;Support kinds of PTZ protocols | |
| USB | 2* USB 2.0 ports | |
| HDD | 2*SATA ports (Max 8TB/per) | |
| Wireless | 3G, WIFI (extend via USB) | |
| General | Power supply | 12V/3A |
| Power Consumption | <15W (without HDD) |
