Quick Details
-
Warranty:
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yumetal
-
Model Number:
-
1200LBS
-
Size:
-
600lbs to 3000lbs
Quick Details
-
Power Source:
-
Hand
-
Application:
-
CRANES
-
Capacity:
-
1200LB
-
Warranty:
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yumetal
-
Model Number:
-
1200LBS
-
Size:
-
600lbs to 3000lbs

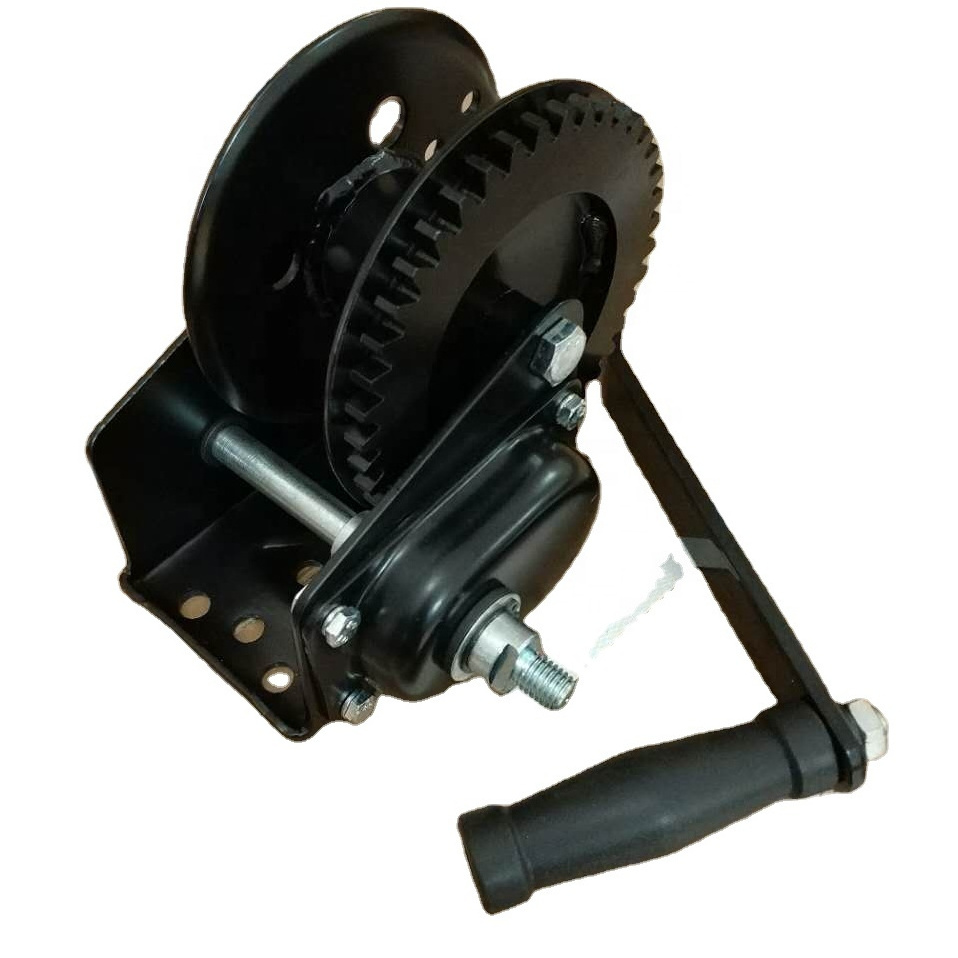

marine anchor winch 3000LBS Double Speed Manural Hand Winch With Brake Without Webbing & Cable
| Art No. | Rated Pull | Gbap Ratlo | Handle Length | Drum-Hub Diameter | Weight |
| lbs(kgs) | mm | mm | kg/pc | ||
| WH0301 | 600(270) | 3.1:1 | 165.00 | 16.00 | 1.83 |
| WH0302 | 800(360) | 3.1:1 | 175.00 | 16.00 | 2.08 |
| WH0303 | 1000(450) | 4.1:1 | 200.00 | 18.00 | 2.67 |
| WH0304 | 1200(540) | 4.1:1 | 225.00 | 18.00 | 2.75 |
| WH0305 | 1400(630) | 4.5:1 | 225.00 | 18.00 | 2.83 |
| WH0306 | 1600(720) | 5.1:1 | 225.00 | 20.00 | 3.25 |
| WH0307 | 1800(810) | 4.1:1&9.8:1 | 250.00 | 20.00 | 4.00 |
| WH0308 | 2000(900) | 4.1:1&9.8:1 | 250.00 | 20.00 | 4.25 |
| WH0309 | 2500(1100) | 5.1:1&12.2:1 | 275.00 | 42.00 | 4.50 |
| WH0310 | 3000(1350) | 5.1:1&12.2:1 | 290.00 | 42.00 | 5.00 |
Product Description
| Product Name: | 3000LBS Hand Winch |
| Size: | T06,T08,T10,T12,T14,T16,T18,T20,T25 |
| Material: | carbon steel or as required |
| Surface treatment: | galvanized or as requrired |
| Standard: | general standard |
| Logo: | Yumetal |
| MOQ: | we can provide you how many you want, but we hope the quantity can be more and more. (*^__^*) |
| Samples Time: | Existing samples are available anytime, customized samples need about 2 weeks. |
| OEM Accepted: | OEM is ok |
| Packing Details: | cartons or bags, then pallets or as required |
1,Size available: T06 ,T08, T10, T12, T14, T16, T18, T20, T25,T30
2,Rated pull:1600LBS
3,Gbap ratlo: 5.1 : 1
4,Handle length: 225mm
5,Drum-hub dia:20mm
6,Package: 4PCS/CTN
7,G/W: 18.5KG
N/W: 16.5KG
