Quick Details
-
Size:
-
12400*2480*1550mm
-
Place of Origin:
-
Shandong, China
-
Usage:
-
container chassis trailer
-
Product name:
-
Container Skeleton Semi Trailer
-
Axles:
-
13T 16P, 1-4 pcs
-
Function:
-
Transport 20ft 40ft Container
-
Suspension:
-
Mechanical Suspension / air suspension / single point suspension
-
Color:
-
customize
-
Landing Gear:
-
Standard 28Ton, JOST / FUWA etc.
-
Tire:
-
12R22.5 or 12R20
-
King pin:
-
2"(50mm) or 3.5"(90mm)
-
OE NO.:
-
YXY9405TJZE
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60T
-
Brand Name:
-
Yong Chao
-
Size:
-
12400*2480*1550mm
-
Place of Origin:
-
Shandong, China
-
Usage:
-
container chassis trailer
-
Product name:
-
Container Skeleton Semi Trailer
-
Axles:
-
13T 16P, 1-4 pcs
-
Function:
-
Transport 20ft 40ft Container
-
Suspension:
-
Mechanical Suspension / air suspension / single point suspension
-
Color:
-
customize
-
Landing Gear:
-
Standard 28Ton, JOST / FUWA etc.
-
Tire:
-
12R22.5 or 12R20
-
King pin:
-
2"(50mm) or 3.5"(90mm)
-
OE NO.:
-
YXY9405TJZE
Products Description
Gooseneck Low Bed Deck Mafi Container Loader Truck Trailer DimensionsUse roll-off trailer
Gooseneck Low Bed Deck Mafi Container Loader Truck Trailer DimensionsUse roll-off trailer
Gooseneck Low Bed Deck Mafi Container Loader Truck Trailer DimensionsUse roll-off trailer
Features and Advantages:
1. Different length available.
2. Type: straight, gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
4. Platform extendable.
5. Twist lock available.
6. Rear dump available.
7. Columns available.
2. Type: straight, gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
4. Platform extendable.
5. Twist lock available.
6. Rear dump available.
7. Columns available.
8. Rear platform available.
Product Paramenters
|
Skeleton Terminal Semi Truck Trailer Technique Dates
|
|
|
|
Dimension (mm)
|
12400mm*2480mm*1480mm or customized size
|
|
|
Tare Weight
|
6.5-7Ton
|
|
|
Payload
|
40T-60T
|
|
|
Main Beam
|
Q 345 Carbon Steel,
Beam height 500 mm, Upper plate 14 mm, Down plate 16 mm, Middle plate 6/8 mm
|
|
|
Platform
|
rear platform available, 3mm checkered Plate
|
|
|
Twist Locks
|
4 pcs or 8 pcs or 12 pcs container lock
|
|
|
Axles
|
13T16P 2/3/4 pcs, BPW or FUWA etc.
|
|
|
Leaf Spring
|
90*13-10 4/6/8 sets, Funiu or Taiyue etc.
|
|
|
Suspension system
|
Mechanical Suspension / air suspension / single point suspension
(Germany Type or America Type or Japan Type)
|
|
|
Tire
|
12R22.5-18, 12 pcs
|
|
|
Landing Gear
|
Standard 28Ton, JOST brand or FUWA etc.
|
|
|
Brake system
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber;
Two 40L air tanks, ABS Optional
|
|
|
Electrical system
|
1. Voltage:24V， LED lights
2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3.Receotacle: 7 wire |
|

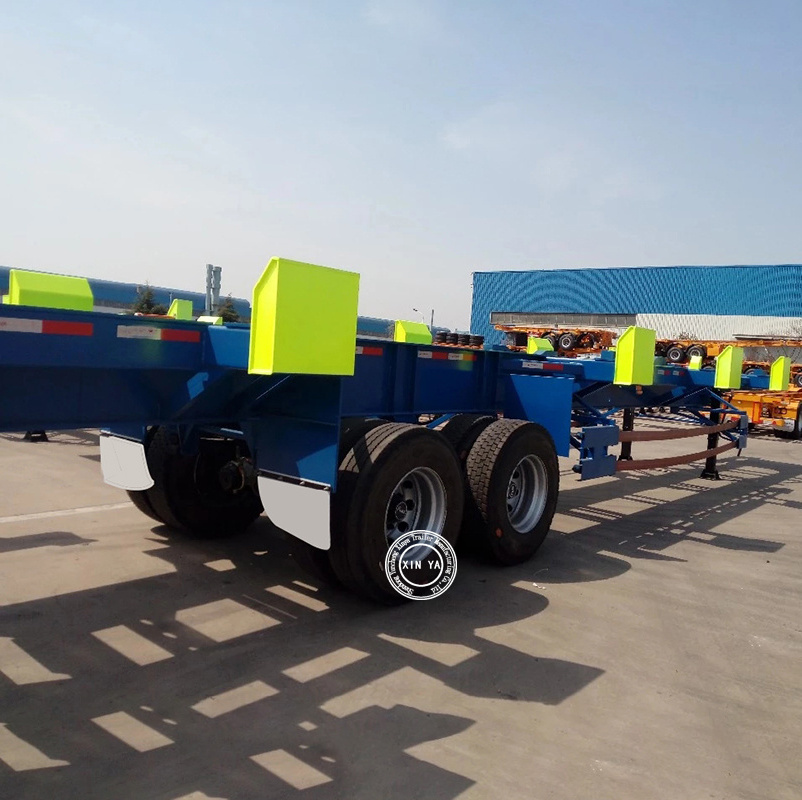

Details Images
Packing & Delivery
Flatbed Shiping
1,
Shipping by bulk vessel or RO-RO;
3, Trailers packing together and loading on the vessel deck directly;
Professional shipping plan, economical sea freight!!!
