Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Keyi
-
Weight (KG):
-
400 KG
-
Core Components:
-
Laser Source
-
Product name:
-
Large format CO2 laser marking machine
-
Minimum line width:
-
30μm
-
Minimum character:
-
0.15mm
-
Power stability:
-
(8h) <± 1% rms
-
Marking area:
-
300*300mm/ 500*500mm
-
Working area:
-
110*110mm /175*175mm/ 200*200mm/300*300mm
-
Min. spot size:
-
0.02mm
-
Beam Quality:
-
M2<1.2
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Nonmetal Materials
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Keyi
-
Weight (KG):
-
400 KG
-
Core Components:
-
Laser Source
-
Product name:
-
Large format CO2 laser marking machine
-
Minimum line width:
-
30μm
-
Minimum character:
-
0.15mm
-
Power stability:
-
(8h) <± 1% rms
-
Marking area:
-
300*300mm/ 500*500mm
-
Working area:
-
110*110mm /175*175mm/ 200*200mm/300*300mm
-
Min. spot size:
-
0.02mm
-
Beam Quality:
-
M2<1.2
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Nonmetal Materials
Product Overview

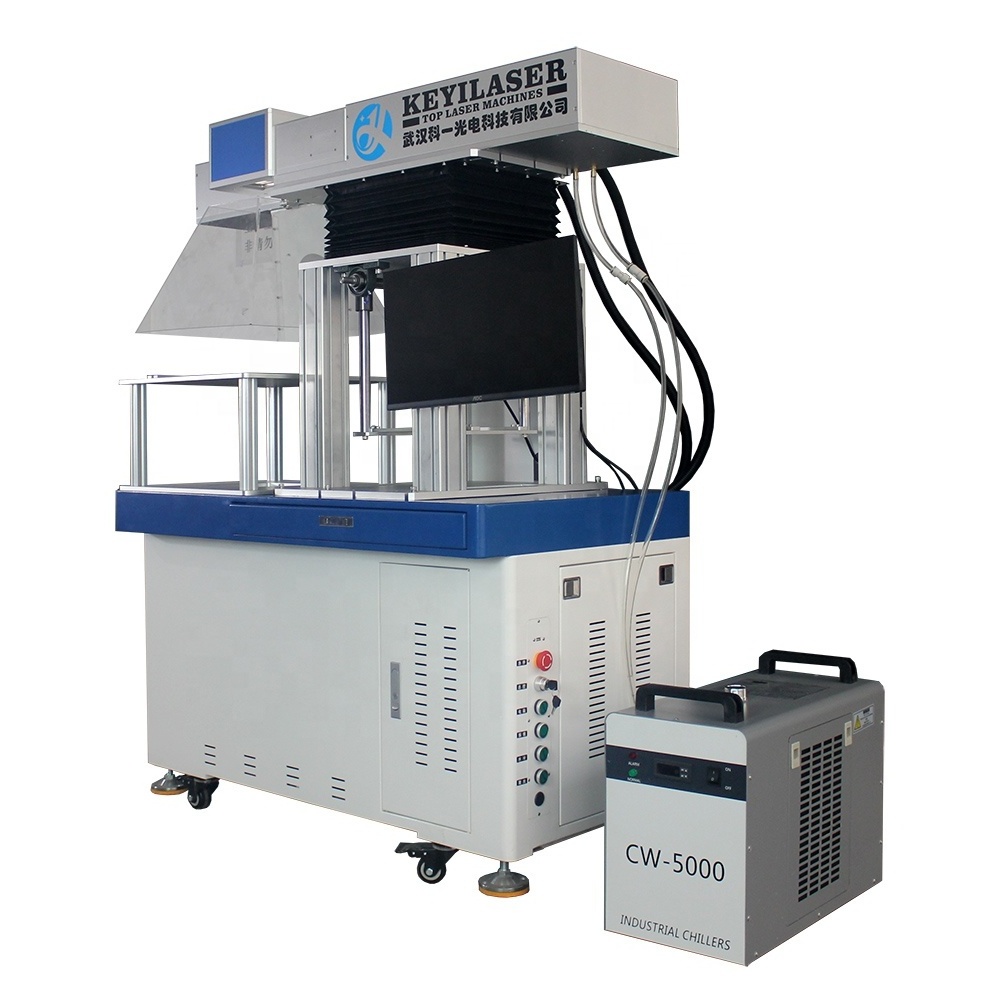

Factory Price Large Format Fiber Laser Marking Machine 3D Dynamic Co2 Laser Marking Machine For Deep Engraving
The Large Format Co2 Laser Marking Machine is a top-of-the-line device that offers unparalleled marking and engraving capabilities.
With its high-powered laser beam, it can engrave images, texts, logos, and barcodes on a variety of materials, ranging from metals to plastics and even organic materials like wood and leather. The machine is highly accurate, fast, and efficient, making it an ideal choice for small, medium, and large businesses looking to improve their productivity and efficiency.
Its user-friendly interface and intuitive software make it easy to operate, while its robust design ensures long-lasting performance. Whether you need to mark and engrave products for branding purposes or create custom designs for personalization, the Large Format Co2 Laser Marking Machine is the perfect tool for the job.
Product Paramenters
|
Laser Type
|
CO2 RF metal laser
|
|
Laser wavelength
|
10640nm
|
|
Spot Diameter
|
2.5±0.5mm
|
|
Spot divergence angle
|
＜7.5±0.5(mrad)
|
|
Beam Quality(M²)
|
＜1.2
|
|
Mode Quality
|
TEM00 95％ Purity,M²＜1.2
|
|
Repetition Frequency
|
0-25(KHz)
|
|
Laser Safey Level
|
ClassIV
|
|
Power Stability（8h)
|
＜±1﹪ms
|
|
Marking Size
|
110mm*110mm, 150mm*150mm, 200*200mm (others for optinal)
|
|
Marking Speed
|
0-13000mm/s
|
|
Marking depth / Roman Type , Character Height 1mm
|
0.01-2mm（ Depending on the material ）
|
|
Marking Content/ Character Types
|
Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time
number coding
|
|
Repeatability
|
±0.003mm
|
|
System Protection Rating
|
IP54
|
|
Cooling
|
Air Cooling
|
|
Power Supply
|
220V±5%，50Hz±5% Single-phase AC power suppl
|
|
Power Consumption
|
＜1KW
|
Machine Application
The Large Format Co2 Laser Marking Machine has endless possibilities for application scenarios. It can be used in various industries such as automotive, aerospace, jewelry, and packaging. The machine boasts high efficiency, accuracy, and speed, making it ideal for production lines and manufacturing processes.
Additionally, the machine provides permanent and durable markings, making it a popular choice for product identification and branding purposes. With its advanced technology, the Large Format Co2 Laser Marking Machine is sure to revolutionize the way we mark and label products, making it an invaluable addition to any manufacturing facility.
Please
send an inquiry to us
if you are interested in our machine, we will reply you at the first time.
