Quick Details
-
Model Number:
-
TB388
-
Max. Current:
-
16A
-
Frequency:
-
50Hz/60Hz
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SLYB
-
Model Number:
-
TB388
-
Max. Current:
-
16A
-
Frequency:
-
50Hz/60Hz

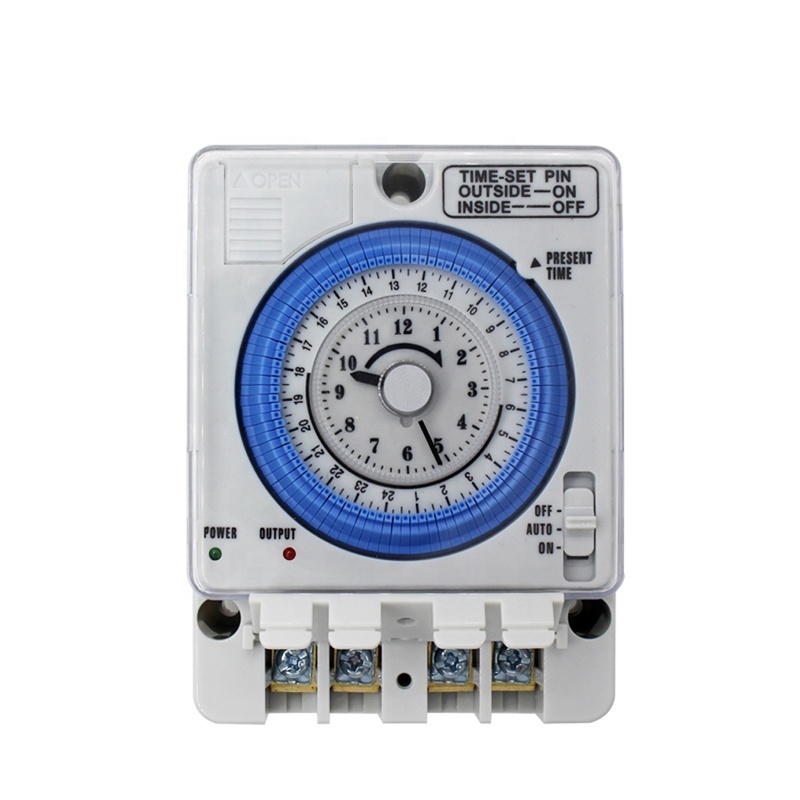

New design 230v low voltage switch timer TB388
|
Type |
230v timer switch |
||
|
Operation Power Voltage |
100-240VAC |
||
|
Allowable Operating Voltage |
85-264VAC |
||
|
Power Source Frequency |
50Hz/60Hz common use |
||
|
Driving Method |
Quarts Motor |
||
|
Power Cut Compensation |
100 hours |
||
|
Time Precision |
Within ± 15 seconds per moth ( at temperature 25 ℃) |
||
|
Program Cycle |
24hours |
||
|
Consumption Power |
110VAC 1W · 220VAC 2W |
||
|
OUTPUT |
Circuit Quantity |
1 circuit |
|
|
Circuit Configuration |
Same Circuit ( voltage-applied contact output ) |
||
|
Contact Configuration |
Single Pole. Single-through |
||
|
Manual ON/OFF |
With ON/AUTO/OFF Switch |
||
|
Contact Capacity |
Resistance |
15A |
|
|
Incandescent Lamp |
10A |
||
|
Induction ( cos Φ =0.7 ) |
12A |
||
|
Motor ( cos φ =0.7 ) |
110VAC 750W · 220VAC 1500W |
||
|
Operation time setting |
Method |
Setting Tip all built-in |
|
|
Minimum Unit |
15minutes |
||
|
Minimum Interval |
15minutes |
||
|
Number of operations |
96as standard |
||
|
Working Ambient Temperature |
-10 ℃~ +50 ℃ |
||
|
Working Ambient Humidity |
85%or less |
||
|
|
250g |
||
