- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhuxin
-
Model Number:
-
CY-400
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2100*3500*1900
-
Weight:
-
2000 KG
-
Product name:
-
paper bag making machine
-
Speed:
-
100-400pcs/min
-
Bag Width (Max):
-
70-260mm
-
Bag length:
-
160-420mm
-
weight:
-
3000kg
-
machine power:
-
8kw
-
Type:
-
General
-
width od roll:
-
260-720mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
snack food paaper bag, bread paper bag, dry fruit bag etc
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhuxin
-
Model Number:
-
CY-400
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2100*3500*1900
-
Weight:
-
2000 KG
-
Product name:
-
paper bag making machine
-
Speed:
-
100-400pcs/min
-
Bag Width (Max):
-
70-260mm
-
Bag length:
-
160-420mm
-
weight:
-
3000kg
-
machine power:
-
8kw
-
Type:
-
General
-
width od roll:
-
260-720mm

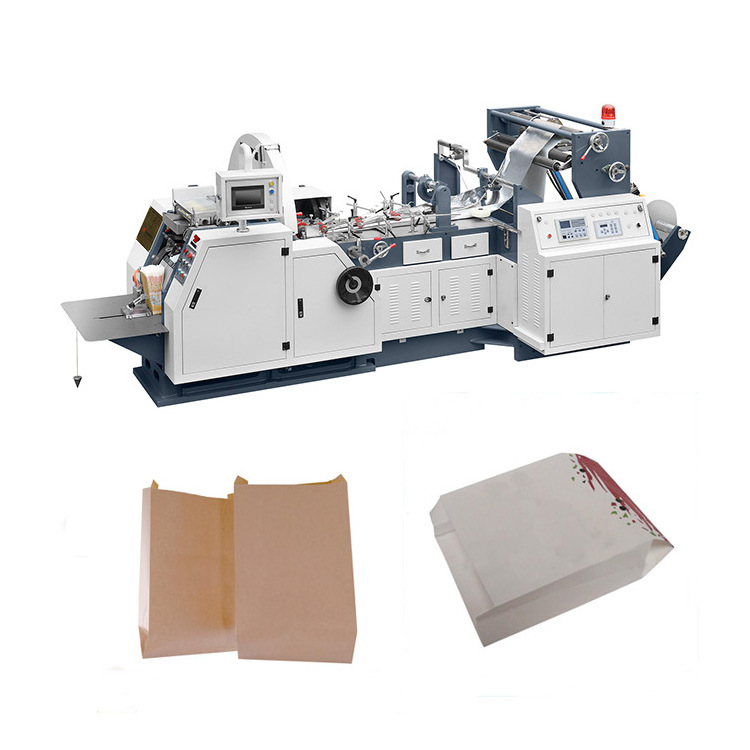

Flat bottom kraft paper bag making machine
| Model | CY-400 | CY-650 | CY-850 |
| paper weight | 40-80GSM | 40-80GSM | 40-80GSM |
| bag width | 160-420mm | 220-650mm | 220-850mm |
| bag length | 70-260mm | 80-300mm | 80-350mm |
| The width of paper roll | 260-720mm | 260-840mm | 260-960mm |
| machine speed | 60-400pcs/min | 60-400pcs/min | 60-400pcs/min |
| machine power | 8kw | 8kw | 8kw |
| machine weight | 3000kg | 4200kg | 5200kg |
| machine dimension | 2.1*4.5*1.9m | 2.1*5*2m | 2.1*5.3*2m |
1.It is suitable for paper between 40-80gsm
2.It can control bag length through human-machine interface.
3.The PLC system can calculate parameters correctly.
4.It is equipped with an accurate photocell system.
Product Description:
It use paper roll in blank or printed material. Can do various raw material.
Perforating, side gluing, photocell tracking, computer control length, tube forming, tube cutting off, bottom folding, bottom gluing and final product collection can be compelted within one time. Machine operate easily, have high efficiency, running steady.
Its an ideal machine for making different knife of paper bag, snack food paper bag, bread paper bag, dry frut bag and environment-friendly paper bag.
