- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Dimension(L*W*H):
-
340*290*130mm
-
Weight:
-
5
-
Product name:
-
electromagnetic induction sealing machine
-
Function:
-
Food Container Sealing
-
Suitable for:
-
Plastic Glass Pet Bottles
-
Sealing type:
-
Induction Aluminum Foil Sealer
-
Usage:
-
Handheld Induction Bottle Cap Heat Sealer
-
Sealing diameter:
-
15-130mm (different models)
-
Name:
-
Induction cap sealer
-
Application fields:
-
Food Product
-
Sealing speed:
-
3.9 s/piece
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Dimension(L*W*H):
-
340*290*130mm
-
Weight:
-
5
-
Product name:
-
electromagnetic induction sealing machine
-
Function:
-
Food Container Sealing
-
Suitable for:
-
Plastic Glass Pet Bottles
-
Sealing type:
-
Induction Aluminum Foil Sealer
-
Usage:
-
Handheld Induction Bottle Cap Heat Sealer
-
Sealing diameter:
-
15-130mm (different models)
-
Name:
-
Induction cap sealer
-
Application fields:
-
Food Product
-
Sealing speed:
-
3.9 s/piece
Product Description

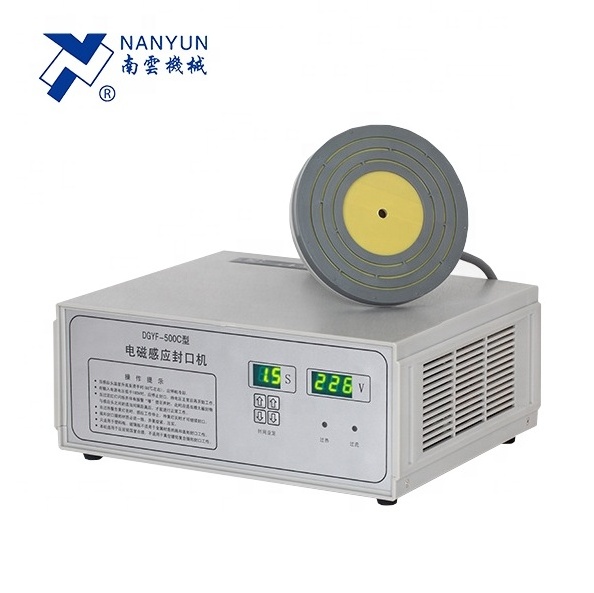

DGYF-500 hand held aluminum foil Induction sealer
Overview
This machine adopts the principle of electromagnetic field induction heating, which uses high-frequency current to generate a magnetic field through the inductance coil. When the magnetic line of force passes through the sealing aluminum foil material, a large number of small eddy currents are instantly generated, which causes the aluminum foil to heat up at high speed and melt the molten glue compounded on the aluminum foil. Paste on the seal of the sealing object to achieve the purpose of rapid sealing.
It is suitable for the sealing operation of non-metallic bottles such as plastic and glass in the chemical, food, beverage, cosmetic and other industries.
*
Aim at wet-proof , leakage-proof, mildew-proof and extending preservation time.
* For sealing diameter from 15mm to 150mm with different models.
* The induction port adopts pure copper wire winding to generate heat quickly and uniformly.
* Suitable for aluminum foil sealing of various glass bottles, plastic bottles, ceramic bottles and polyester bottles.
* For sealing diameter from 15mm to 150mm with different models.
* The induction port adopts pure copper wire winding to generate heat quickly and uniformly.
* Suitable for aluminum foil sealing of various glass bottles, plastic bottles, ceramic bottles and polyester bottles.
Why Choose Induction Sealing?
When properly applied, induction lined caps provide a hermetic seal. Using an induction sealing system is ideal for extending product shelf life, preserving freshness and enhancing your product's value.
It is a great idea for business. We want to help you make your business more prosperous. To this end, we have developed this new product, which is faster, better and safer. Widely used for the food, cosmetics, oil and other industry plastic bottles, glass bottles and other non-metallic bottle of aluminum foil.
Features
1. The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc.but not metal.
2. Small size, light weight, easy operation, it is suitable for low-volume production and operation in labs.
3. Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
4. Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
5. Modular component design minimizes maintenance requirements.
2. Small size, light weight, easy operation, it is suitable for low-volume production and operation in labs.
3. Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
4. Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
5. Modular component design minimizes maintenance requirements.
Parameters
|
Model
|
DGYF-500A
|
DGYF-500B
|
DGYF-500C
|
DGYF-500D
|
|||
|
Power
|
500W
|
|
|
|
|||
|
No-load Current
|
≦0.1A
|
|
|
|
|||
|
Max. Operating Current
|
<8A
|
|
|
|
|||
|
Sealing Diameter
|
Ø20-100mm
|
Ø15-35mm
|
Ø60-130mm
|
Ø20-60mm
|
|||
|
Sealing Speed
|
10-30 bottles/min
|
|
|
|
|||
|
Sealing Material
|
Special induction film, aluminum foil composite film
|
|
|
|
|||
|
Dimension
|
340*290*130mm
|
|
|
|
|||
|
Net Weight
|
5KG
|
|
|
|
|||
Similar Products
Details Images
New sensor switch: The keys are sensitive, the efficiency is higher, and the maintenance is convenient. Long press the switch to seal only once, not continuously. Protect the machine from damage due to overheating.
Automatic power regulation:
Intelligent operation panel, the power is adaptive according to the diameter of the bottle mouth, no need to adjust, and the operation is simpler and easier.
Overheating protection:
The machine will prevent burnout by self-sleep when it is overheated. Overheating sleep protection can extend the service life.
High density pure copper coil:
High-density pure copper coils, evenly arranged without plastic interlayer, make the sealing more efficient and firmer.
Independent power switch:
With an independent power switch, it is convenient for work and maintenance, and the thick wire ensures stable power input.
Fast ventilation and cooling device:
The machine is made of ABS material, with heat dissipation design on both sides guaranteed service life.
