Quick Details
-
Model Number:
-
CEMS-8000L(S)
-
Measuring component:
-
SO2,NOX,O2
-
Detecting Gas:
-
SO2,NOX,O2
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
NJKCZDH
-
Model Number:
-
CEMS-8000L(S)
-
Measuring component:
-
SO2,NOX,O2
-
Detecting Gas:
-
SO2,NOX,O2

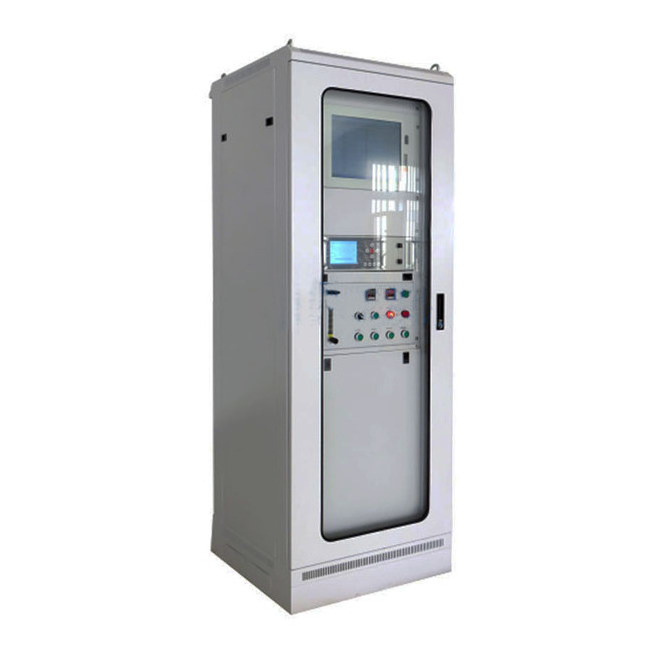

CEMS-8000L type flue gas emission continuous monitoring system
Introduction:
CEMS-8000L continuous emission monitoring system adopts the world's advanced online analysis technology combined with China's environmental monitoring industry specifications, including smoke monitoring subsystem, gaseous pollutant monitoring subsystem, flue gas parameter monitoring subsystem, system control and data acquisition. The processing subsystem consists of four basic parts; it can continuously monitor the concentration of particulate matter, SO2 concentration, NOX concentration, O2 content, flue gas temperature, pressure, flow rate, humidity, and also increase CO, CO2, HCL, HF, NH3, carbon. The monitoring of parameters such as hydrogen compounds, and the generation of graphs, curves, environmental reports, etc. through the data acquisition and processing system, can be uploaded to the environmental protection departments at all levels.
Features:
1. All indicators are measured under high temperature or dehydration conditions (dilution method and condensation method) to avoid condensed water absorption of SO2 resulting in low measurement
2. Standard 19" cabinet, simple system structure, high reliability, alarm function, built-in mounting bracket, easy to operate and maintain
3. Manual and automatic calibration function for automatic full calibration
4. The core algorithm is independently developed, and the platform components are dust-proof, low-temperature resistant, and easy to maintain.
5. Using the patented dilution probe or high temperature probe to effectively prevent the flow path from being blocked;
application:
Applicable to environmental testing and process control of tail gas emissions from coal-fired power plants, oil-fired power plants, waste-to-energy plants, cement plants, glass plants, lime plants, ceramic plants, sintering, coke ovens, desulfurization processes, and denitration processes.
Technical Parameters:
|
Gas pollutant analyzer |
Measuring component |
SO2 |
NOX |
O2 |
|
|
Measuring principle |
UVorNDIR |
UVorNDIR |
Electrochemistry |
||
|
Range |
0-50ppm-150ppm Optional |
0-50ppm-150ppm Optional |
0-5%/0-25% |
||
|
CO CO2 NH3 HCL HF Optional |
|||||
|
Zero drift |
≤ 2% |
||||
|
Range drift |
≤ 2% |
||||
|
Response time |
≤ 7s |
||||
|
display |
With backlight LCD |
||||
|
Sample gas flow |
0.2± 1.5L/min |
||||
|
Sampling probe |
Electric heating, with temperature alarm; with purging function and calibration function; benchmark length 1500, other optional; flange DN65, PN6.0 |
||||
|
Sampling tube |
Electric heating, two PTFEΦ8Φ6 |
||||
|
calibration |
Automatic or manual optional |
||||
|
standard |
Zero gas |
N2 |
|||
|
gas |
Measure gas |
Standard gas corresponding to the component to be tested |
|||
|
particulates particulates |
Measuring principle |
Extractive |
|||
|
Measuring optical path |
Scattering method |
||||
|
Measuring range |
0-15-200mg/m3 optional |
||||
|
Smoke parameter |
temperature |
0-300 °C optional |
|||
|
pressure |
-2.5-+2.5kPa |
||||
|
Flow rate |
0-40m/s optional |
||||
|
humidity |
0-40VoL% |
||||
