All our products have passed the CE, CCC, ROHS etc. certifications.
-
Our push buttons use 95% silver contacts,with good contact performance.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA19D-10EY/S
-
IP level:
-
IP67
-
Product name:
-
High current button switch
-
Lamp color:
-
White\Orange\Red\Blue\Green
-
LED voltage:
-
3V/6V/12V/24V/36V/110V/220V/others
-
Emitting Type:
-
Ring Power symbol
-
Mounting hole:
-
19mm
-
Contact configuration:
-
1NO
-
Enclosure Material:
-
Stainless steel
-
Head shape:
-
Flat
-
Protection class:
-
IP67
-
Application:
-
General-Purpose
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
10A 15A 20A
-
Max. Voltage:
-
250V AC/DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA19D-10EY/S
-
IP level:
-
IP67
-
Product name:
-
High current button switch
-
Lamp color:
-
White\Orange\Red\Blue\Green
-
LED voltage:
-
3V/6V/12V/24V/36V/110V/220V/others
-
Emitting Type:
-
Ring Power symbol
-
Mounting hole:
-
19mm
-
Contact configuration:
-
1NO
-
Enclosure Material:
-
Stainless steel
-
Head shape:
-
Flat
-
Protection class:
-
IP67
-
Application:
-
General-Purpose
YUESHUN PUSH BUTTON SWITCH
-Professional manufacturer of custom
high quality
metal push buttons.
Quick Description
High Current Metal Push Button Switch
Mounting Size : 19mm;
Switch Rating : 10A / 15A / 20A , 250VAC/DC
IP Class : IP67
Function : Normal Open
Material ：Stainless Steel / A
luminium oxide
Operating Type : Momentary / Latching
|
PRODUCT FEATURES
|
|
|
|
Install Diameter
|
19mm
|
|
|
Operation Type
|
Momentary or Latching
|
|
|
Switch Combination
|
1NO
|
|
|
Head Shape
|
Flat Round Head
|
|
|
Terminal Type
|
4 PIN TERNINAL
|
|
|
Panel Thickness
|
1-10mm
|
|
|
Operating Distance
|
About 2.5mm
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
|
|
|
Button Material
|
304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
|
|
|
Base Material
|
PBT
|
|
|
Contact Material
|
Silver Alloy
|
|
|
LED SPECIFICATIONS
|
|
|
|
LED Type
|
Annular LED
|
|
|
LED Color
|
Red / Green / Yellow / Blue/ White / Orange / Purple / Bi-color / Tri-color
|
|
|
LED Voltage
|
3V / 6V / 12V / 24V / 36V / 110V / 220V
|
|
|
LED Life
|
More Than 40,000 hours
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Max Switch Rating
|
10A 15A 20A / 250V AC DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Mechanical Life
|
More than 1000,000 cycles
|
|
|
Electrical Life
|
More than 100,000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP 67
|
|
|
Operation Temperature
|
20℃～+55℃
|
|
|
Operating Pressure
|
About 3-5N
|
|
|
Torque
|
5-14Nm
|
|
Wire Connection Reference
Why Choose Us
Waterproof ,D
ustproof ,V
andal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push
buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance,
not easy to fade, excellent performance, IP67 protection level
are great for all kinds of first level equipments.
Easy To Install
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use

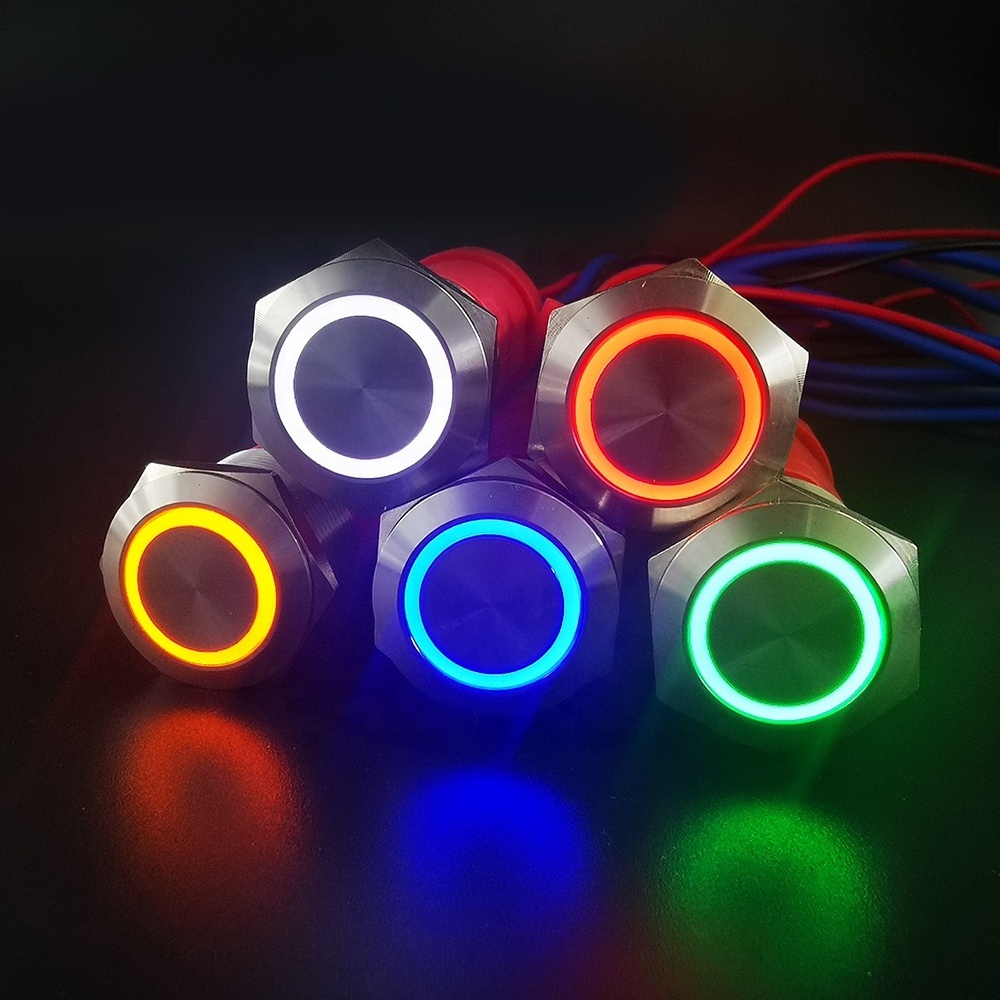

ILLUNINATED
High bright solid color LED light, beautiful not dazzling.
Built-in buck resistor. Customized LED light sign.
7 colors optional, can be customized Bi-colors, Tri-colors.
