Quick Details
-
Product name:
-
4x2 HDMI switcher multiviewer
-
Function:
-
Matrrix/multiviewer/swicth
-
Resolution:
-
4Kx2K@60Hz
-
Certifications:
-
CE FCC ROHS
-
Input:
-
4 HDMI Input
-
Output:
-
2 HDMI Output
-
Version:
-
HDMI 2.0b
-
OEM:
-
Yes
-
Control:
-
Remote, panel keys and Rs232
-
Seamless Switching:
-
Yes
Quick Details
-
Brand Name:
-
KEQINX
-
Model Number:
-
CA42M-WV
-
Place of Origin:
-
Shenzhen
-
Product name:
-
4x2 HDMI switcher multiviewer
-
Function:
-
Matrrix/multiviewer/swicth
-
Resolution:
-
4Kx2K@60Hz
-
Certifications:
-
CE FCC ROHS
-
Input:
-
4 HDMI Input
-
Output:
-
2 HDMI Output
-
Version:
-
HDMI 2.0b
-
OEM:
-
Yes
-
Control:
-
Remote, panel keys and Rs232
-
Seamless Switching:
-
Yes
Product Description
Product Name :
New 4K@60hz multiviewer HDMI quad screen multiviewer 4x2 HDMI switch HDMI matrix 4x2 seamless switching
Introduction :
This 4x2 Multiviewer Seamless UHD Video Matrix Switcher was developed
for the purpose of supporting higher output resolution (4K@60) for multiple
sources on two screens. It can accept 4 HDMI input digital sources and
combine four video signals onto two HDMI UHD or HD monitors independently.
The user can manage each input, and create combinations of the four inputs
on two displays, as well as adjust the position of any input.
This product supports 8 display modes, within the mode range, users can freely
switch 4-channel HD input signals. It can realize single screen display and
multiview display on a single screen.
This product supports full range of input video resolutions up to 4K@60 (RB)
and audio RCA /Optical de-embedding supported for external audio
distribution systems.
This Matrix Switcher can be controlled via front panel buttons, IR remote,
RS-232 commands.
Features :
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
18Gbps uncompressed Bandwidth, input and output resolution up to
4K2K@60 4:4:4
HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD,
DTS HD-master pass-through
Seamless switching between input channels
Combined multiple images independent layouts to display on two
UHD TVs
Up to 8 display modes
Audio de-embedding via analog and optical fiber audio ports
Control via front panel buttons, IR remote, RS-232 commands
Each output port supports Scaler function
Support independent audio selection
Advanced EDID management
Compact design for easy and flexible installation
Specification :
Front Panel :

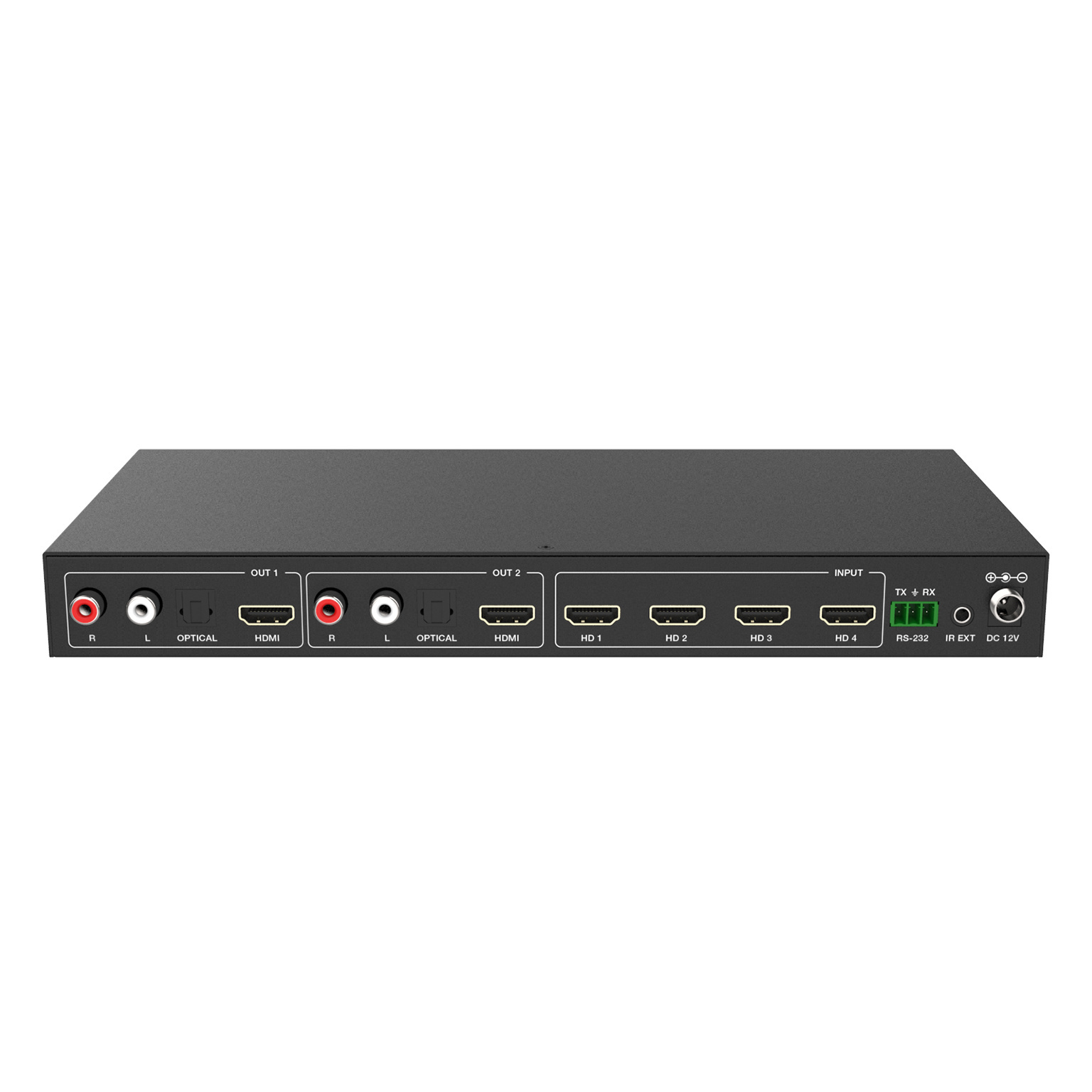

Back Panel :
IR Remote :
Multi-viewer:
Use Diagram :
