Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*1150*1800mm
-
Weight:
-
3500kg
-
Power:
-
5.5KW/7.5KW
-
Certification:
-
CE ISO
-
Max. Swing Diameter:
-
660mm
-
Max. swing over Cross side:
-
420mm
-
Max. swing over gap:
-
870mm
-
Effective length of gap:
-
230mm
-
Bed width:
-
405mm
-
Spindle hole:
-
105mm
-
Spindle nose:
-
D8
-
Cross side travel:
-
360mm
-
Travel of tailstock sleeve:
-
150mm
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
KAKU
-
Model Number:
-
C6266C
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*1150*1800mm
-
Weight:
-
3500kg
-
Power:
-
5.5KW/7.5KW
-
Certification:
-
CE ISO
-
Max. Swing Diameter:
-
660mm
-
Max. swing over Cross side:
-
420mm
-
Max. swing over gap:
-
870mm
-
Effective length of gap:
-
230mm
-
Bed width:
-
405mm
-
Spindle hole:
-
105mm
-
Spindle nose:
-
D8
-
Cross side travel:
-
360mm
-
Travel of tailstock sleeve:
-
150mm
Feature:

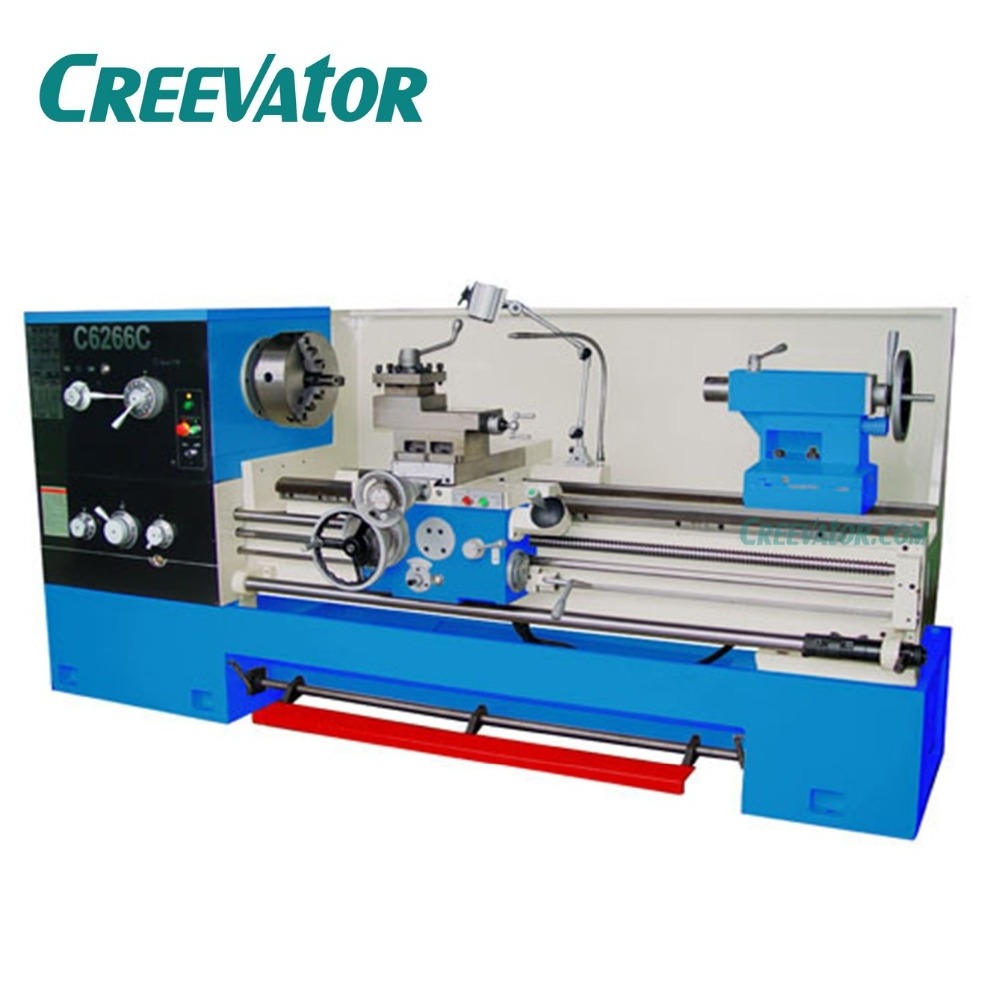

1, Lathe C6266C Spindle Hole 105mm Centre Length 2000mm
2, The surtace of the bedways is supersonic frequency.
3, The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
4, There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
5, An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length.
STANDARD ACCESSORIES:
1.3-jaw chunck
2. Driving plate
3. Center& center sleeve
4. Wrenches
5. Oil gun
6. Operation manual
OPTIONAL ACCESSORIES:
2. Follower rest
3.4-jaw chuck
4. Face plate
5. Live center
6. Quick change toolpost
7. Taper copy ruller
8. Thread dial
Our company is located in the largest industrial city – Chongqing, China.
We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.
We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.
Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product.
Machine preparation
All Machines go through a pre-delivery inspection carefully (inspect every spare parts, painting, package, and performance trial, and so on even tiny flaw won’t tolerate) by our experienced qualified service engineers. Installation & commissioning packages can be also offered (additional cost should be paid by client)
Spare Parts
Spare parts is quite important for machine tools. KAKU machinery supply each machine is supplied with a full instruction manual and parts list.
Warranty
All of our machines are made from cast iron and are quality checked both at the factory and before dispatch.
Guarantee : 1 year warranty period
a, Within one year, we will offer free spare parts to change when the machine can not work in case of the natural use, not man-made destroy. But you need to pay for the shipping cost.
b, After one year, we always have spare parts for you, not free.
Service & support
If something wrong happened with your machine, our many experienced engineers are always here to help you.
Our company spirit: Integrity, Professional, Efficient and High Quality!
We insist on doing everything seriously, and continuously improve and enhance our team's capabilities and services.
If you are interested in our company's product, welcome to contact us and place an order. Thank you!
