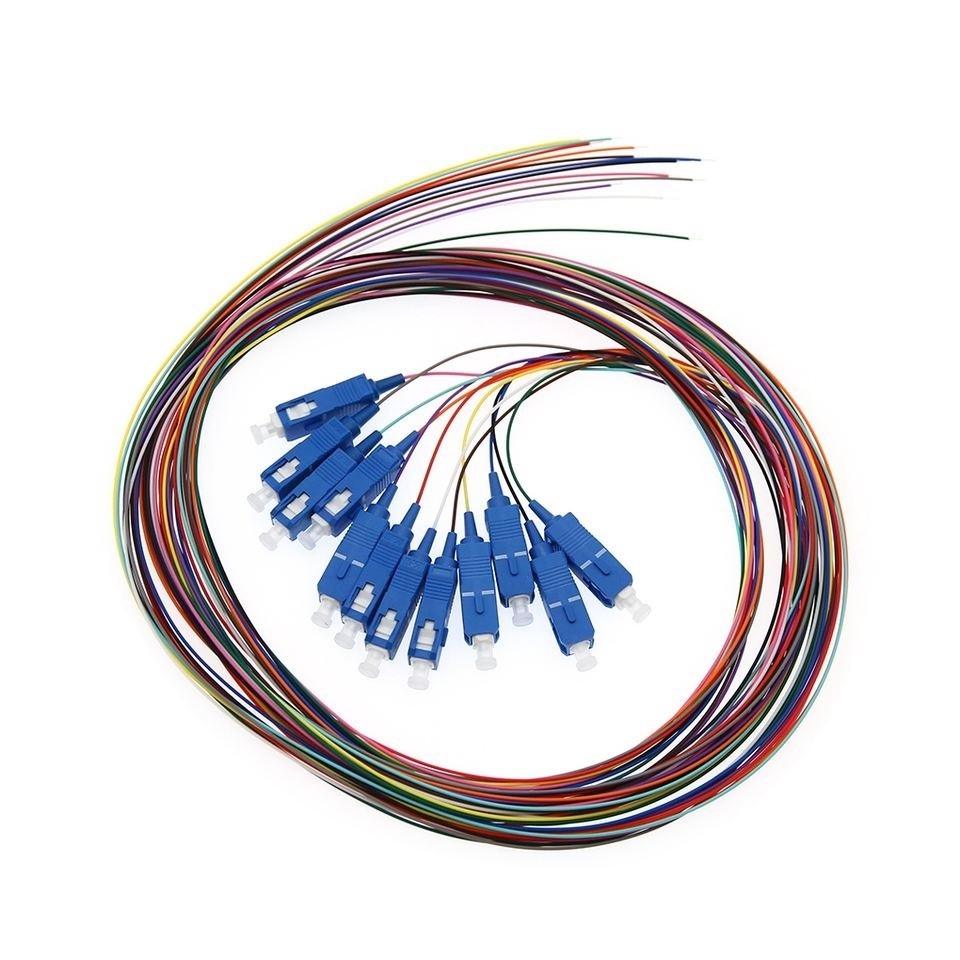

Bundle pigtail, also known as pigtail bundle, has only one end with a connector, while the other end is a broken end of an optical fiber, which is connected with other optical fiber [1] cores through welding. It often appears in the optical fiber terminal box to connect optical cables and terminal equipment.
The pigtails are divided into multi-mode pigtails and single-mode pigtails. The multimode pigtail is orange, with a wavelength of 850nm and a transmission distance of 500m. It is used for short distance interconnection. Single mode pigtail is yellow, with two wavelengths, 1310nm and 1550nm, and transmission distances of 10km and 40km respectively. It is composed of 12 tail fibers, and the colors are: blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, light blue.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
customized
-
Use:
-
ftth
-
Warranty Time:
-
3
-
Product name:
-
Bundle pigtail
Quick Details
-
Type:
-
Single mode bundle pigtail
-
Model Number:
-
Bundle pigtail
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
customized
-
Use:
-
ftth
-
Warranty Time:
-
3
-
Product name:
-
Bundle pigtail
Product Description
Product introduction
|
Product name
|
Bundle pigtail
|
Interchangeability
|
≤0.2dB
|
|
|
|
Return loss
|
≥60dB
|
Plugging times
|
>1000 times
|
|
|
|
insertion loss
|
≤0.2dB
|
tensile strength
|
0~15Kg
|
|
|
|
working temperature
|
-40℃～+80℃
|
|
|
|
|
|
Repeatability
|
≤0.1dB
|
|
|
|
|
Details Images
Product Usage
Product usage scenarios
CATV, LAN/access network, telecom network/Gigabit data network test, medical equipment, other industrial and military applications
-
Product characteristics
◆ Comply with ANSI, Bellcore, TIA/EIA, IEC and other international standards and domestic telecom industry standards
◆ Realize the active connection of optical fiber transmission
◆ Small insertion loss and large return loss
◆ Good interchangeability and repeatability
