Computerized Automatic Paint tinting dispenser equipment paint mixing and tinting dispensing Machine JY-10A

Computerized Automatic Paint tinting dispenser equipment paint mixing and tinting dispensing Machine JY-10A

FOB Reference Price: Get Latest Price

≥1 Sets

US $3200

≥5 Sets

US $3160

≥28 Sets

US $3060

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 135 KG

Place of Origin:: Guangdong, China

Voltage:: 110V/60Hz, 220V/50Hz

Dimension(L*W*H):: 78*74*134

Power (kW):: 150 kW

Quick Details

Barrel Volume (L):: 2.3L*12pcs; 2.3L*16pcs

Max. Loading Volume (L):: 2.3 L

Max. Loading Capacity:: 36.8

Weight (KG):: 135 KG

Place of Origin:: Guangdong, China

Voltage:: 110V/60Hz, 220V/50Hz

Dimension(L*W*H):: 78*74*134

Power (kW):: 150 kW

Product Overview

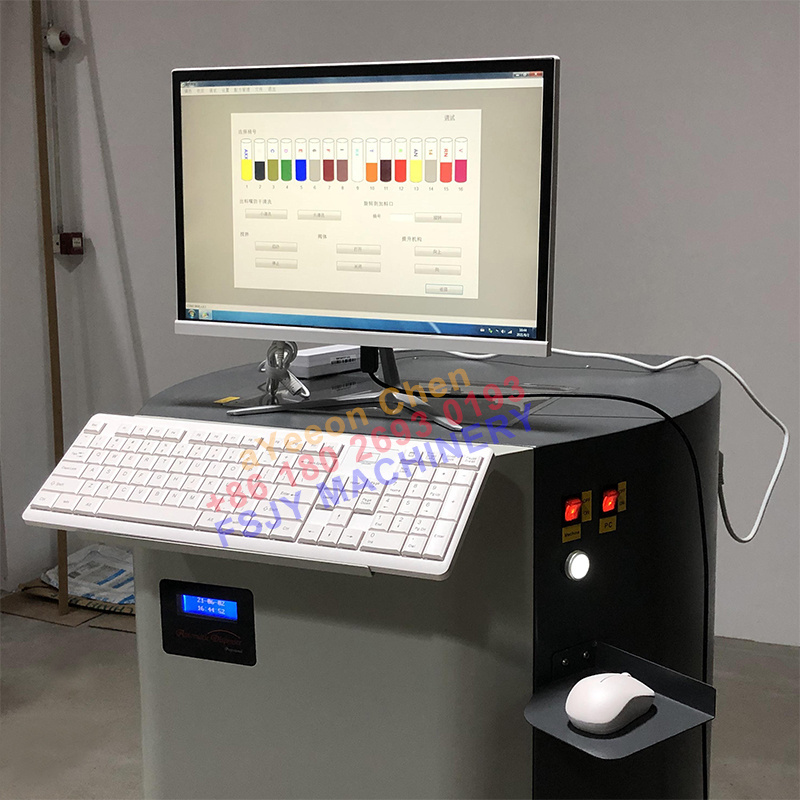

Automatic computerized Paint Tinting Dispenser Machine JY-10A

This JY - 10A is one of the most economical automatic dispenser on the market. It was designed to meet high standards for accuracy, repeatability. It’s an ideal automatic dispensing solution for stores, serve as a complete color management system.

FEATURES AT A GLANCE

FEATURES

Reliability & Durable

--- Iron rotating table and floor

--- Ceramic valve, accurate, corrosion

Resistant and good sealing.

---Durable and corrosion-resistant PPmaterial canisters and pump cylinders.

--- Piston pump ensure better precision dispensing

Left elevation

Right elevation

Back elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Colorant base compatibility	Water-based
2	Valve seal ring type	Silicone
3	Dispensing technology	Piston pump
4	Dispensing flow	Volumetric sequential dispensing
5	Pump Capacity	50 ML
6	Canister configurations	12pcs/16pcs
7	Canister inner diameter	90mm
8	Canister capacity	2.3L
9	Canister material	PP(Polypropylene)
10	Circuit flow rate	0.25 L/min
11	Minimum dispensed quantity	1/384 fl.oz. (0.077ml)
12	Machine Size	720 (L) X 760(W) X 1210(H) mm
13	Packing Size	740 (L) X 780(W) X 1340(H) mm
14	Machine Weight (with 16 canisters)	125Kgs
15	Gross Weight (with 16 canisters)	140Kgs
