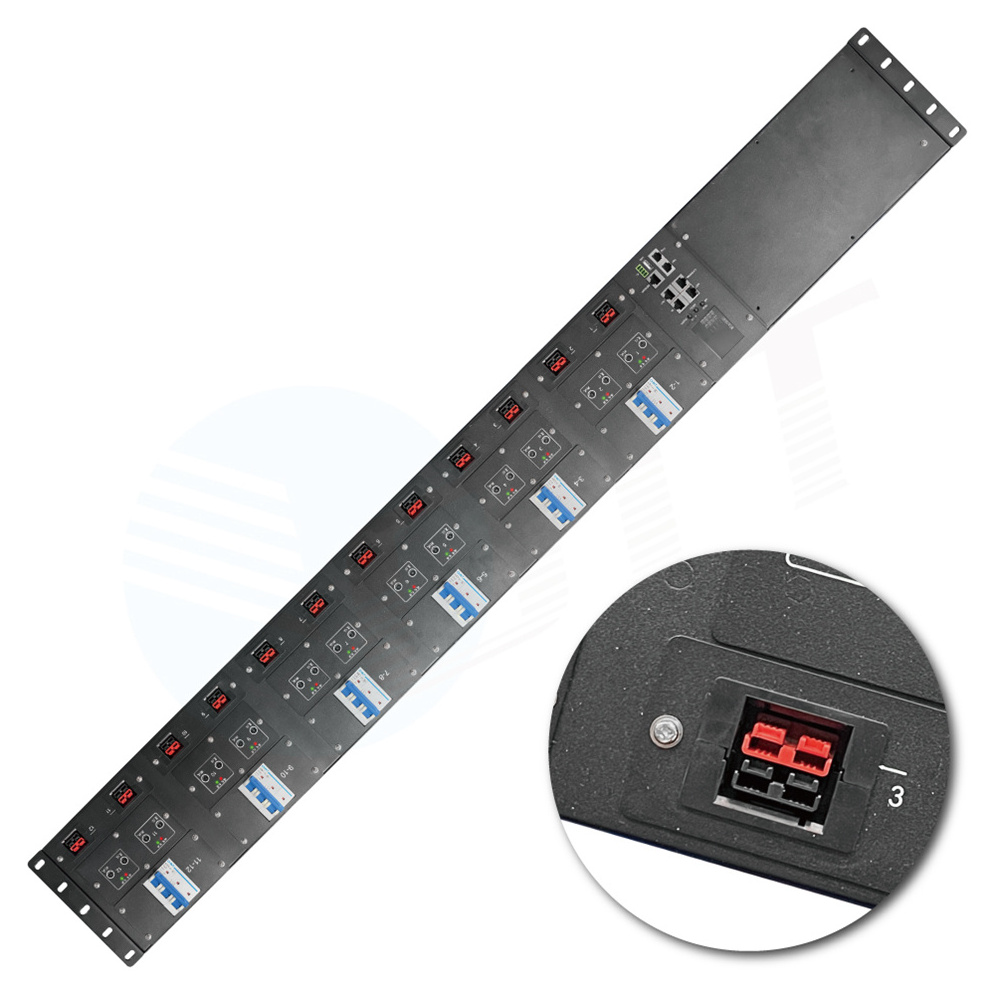

High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU
High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU

High Power C19 Clever Intelligent PDU 3-Phase Immersion Cooling Box with 200A Current Remote Control Switch On/Off PDU

FOB Reference Price: Get Latest Price
≥5 Pieces
US $745
≥20 Pieces
US $710
≥200 Pieces
US $670
≥1000 Pieces
US $620
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Orient
Model Number:
OIT-IPDU-SA2012-200A
Product Name:
Smart PDU
Material:
Sheet Metal
Rated Voltage:
480VAC
Max output current:
200A
Certificate:
ETL CE ROHS SAA
color:
Black
Size:
1900*190*115mm
Grounding:
Standard Grounding
Warranty:
3 Years
Color:
black

Quick Details

Voltage:
480VAC
Current:
200A
Place of Origin:
Guangdong, China
Brand Name:
Orient
Model Number:
OIT-IPDU-SA2012-200A
Product Name:
Smart PDU
Material:
Sheet Metal
Rated Voltage:
480VAC
Max output current:
200A
Certificate:
ETL CE ROHS SAA
color:
Black
Size:
1900*190*115mm
Grounding:
Standard Grounding
Warranty:
3 Years
Color:
black
Products Description
Function introduction
A.Remote network management,
a. Cascade management (SNMP V1.V2.V3)
b. Wifi connecting
c. Data graphical display
d. User management
e. The log saved
f. Multiple alarm mode
g. Access management,by telnet,ssh or modbus-rtu
h. Multiple output options

B.Monitoring function
a. Monitoring input voltage
b. Monitoring total load current
c. Monitoring total power (KW)
d. Monitoring energy consumption (KWH)
e. Motoring total power factor
f. Monitoring each outlet power
g. Calculate each unit energy consumption

C. Control function
a.On / off control for each outlet
b.On / off time setting for each outlet
c.Boot time delay setting
d.Set current limit for each outlet
e.Overload protection (automatic power-off)
Input characteristics
Product Model
OIT-RPDU-SA2012-200A
Input Voltage
380V 3Phase(LLLG)to 380V 3Phase

415V 3Phase(LLLG)to 415V 3Phase
433V 3Phase(LLLG)to 433V 3Phase
480V 3Phase(LLLG)to 480V 3Phase
Input Current
200A
Max power
120KW
Input connector
200Ax4wires(or juction box ,Industrial connector)
Frequency
50/60Hz
Output Voltage
380-480VAC
Max output power for each outlet
Max 10000W per Outlet
Maximum power per socket
Max 10000Wx12
Soket Standard
S2-30 (or Customized)
Breaker
12pcs Hydraulic magnetic breaker with UL or CE
Product size
L*W*H=1900*190*115mm
Net weight
22KG
Certification
ETL Ca/US , CE , RoHS
Test items
hi-pot test
PASS
Grounding
PASS
IR
PASS
What makes our PDU(Power Distribution Unit) to be unique compared with others?
1.We have been specialized in this line for over 14 years.
2.We are the manufacturer.
3.All of our goods need to be tested before shipping .
4.We only supply safe and high quality sockets.
5.We support OEM&ODM
6.We have R&D department in Shenzhen,have own core technology-smart PDU
7.We support OEMs ,Any special requirement,welcome to contact us.
Certifications
Installation Instructions
About US
Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to South America(17.00%),Eastern Europe(17.00%),Southeast Asia(15.00%),Mid East(10.00%),Central America(10.00%),North America(10.00%),Eastern Asia(8.00%),Oceania(5.00%),Africa(3.00%),Northern Europe(2.00%),Western Europe(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PDU,server chassis,sheet metal processing

4. why should you buy from us not from other suppliers?
Orient provides professional support consisting of IT consultants and a service team. Our main engineers have more than 10 years of experience in factory work, on products excellence and have maintained a rigorous work attitude. Products meet multiple wor

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
