Quick Details
-
Model type:
-
ATSC Modulator
-
Standard:
-
ATSC A/53
-
Bandwidth:
-
6M
-
Constellation:
-
8VSB
-
Input:
-
256 IP input, 2 100/1000M Ethernet Port (SFP)
-
Application:
-
Digital CATV headend
-
Output:
-
F typed output
-
RF Range:
-
50~960MHz, 1kHz stepping
-
Warrantly:
-
one year
-
Certificate:
-
CE,CB,FCC
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUNZHOU
-
Model Number:
-
OPT 5508A
-
Model type:
-
ATSC Modulator
-
Standard:
-
ATSC A/53
-
Bandwidth:
-
6M
-
Constellation:
-
8VSB
-
Input:
-
256 IP input, 2 100/1000M Ethernet Port (SFP)
-
Application:
-
Digital CATV headend
-
Output:
-
F typed output
-
RF Range:
-
50~960MHz, 1kHz stepping
-
Warrantly:
-
one year
-
Certificate:
-
CE,CB,FCC
IPTV QAM Modulator with TS IP/multicast gigabit in,8*ATSC RF out Modulator

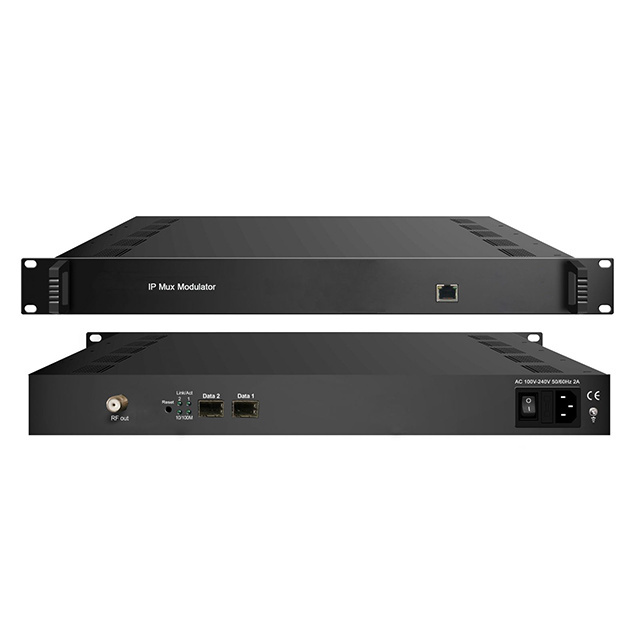

OPT 5508A IP to 8 ATSC modulator is newly designed product supporting IP input.
It has 8 multiplexing channels and 8 ATSC modulating channels, and supports maximum 256 IP input through the GE port.
OPT 5508A has a powerful output capacity with 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface.
The system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC digital broadcasting network setup and the testing for ATSC set top box design.
Features
- 2 GE input, SFP interface
- Supports up to 256 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
- Max 840Mbps for each input
- Supports accurate PCR adjusting
- Supports PID remapping and PSI/SI editing
- Supports up to 180 PIDs remapping per channel
- Support 8 multiplexed TS over UDP/RTP/RTSP output
- 8 ATSC non-adjacent carriers output, compliant to ATSC A/53 standard
- Supports RS (208,188) encoding
- Support Web-based Network management
Technical parameters:
|
Input |
Input |
256 IP input, 2 100/1000M Ethernet Port (SFP) |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
256 |
|
Output Channel |
8 |
|
|
Max PIDs |
180 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Channel |
8 |
|
Modulation Standard |
ATSC A/53 |
|
|
Constellation |
8VSB |
|
|
Bandwidth |
6MHz |
|
|
FEC |
RS(208 188)+Trellis |
|
|
RF Output |
Interface |
F typed output port for 8 non-adjacent carriers |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20~+10dbm (for all carriers), 0.5db stepping |
|
|
MER |
≥ 40dB |
|
|
ACL |
-55 dBc |
|
|
TS output |
8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
|
|
System |
Web-based Network management |
|
