Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WZUMER
-
Model Number:
-
SP21H
-

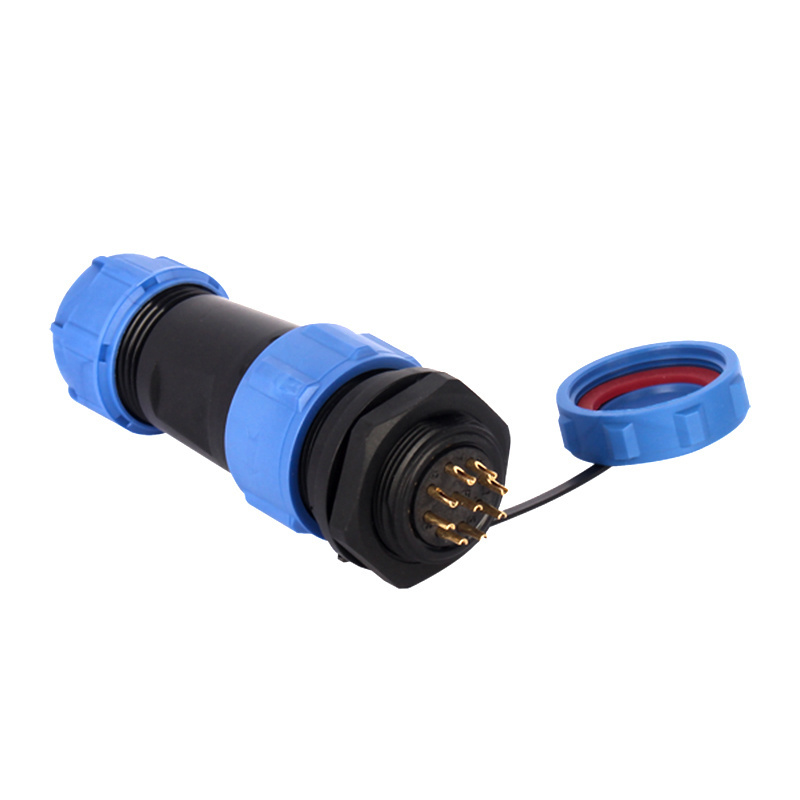

Product name:
-
Aviation connector
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
LED screen ,display ,lighting,Automotive
-
Gender:
-
Male and Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WZUMER
-
Model Number:
-
SP21H
-
Product name:
-
Aviation connector
Details Images
Products Description
|
SD21
|
2
|
3
|
4
|
5
|
5B
|
5C
|
7
|
9
|
12
|
|||||||
|
Rated current(A)
|
30A
|
30A
|
30A
|
30A
|
5A 30A
|
15A
|
15A
|
5A
|
5A
|
|||||||
|
Contact diameter
|
Φ3x2
|
Φ3x3
|
Φ3x4
|
Φ3x5
|
Φ1x3 Φ3x2
|
Φ2x5
|
Φ2x7
|
Φ1x9
|
Φ1x12
|
|||||||
|
Working voltage(AC.V)
|
500V
|
500V
|
500V
|
500V
|
500V
|
500V
|
500V
|
500V
|
400V
|
|||||||
|
Testvoltage(ac.v)1 min
|
1500V
|
1500V
|
1500V
|
1500V
|
1500V
|
1500V
|
1500V
|
1500V
|
1200V
|
|||||||
|
Contact resistance MΩ
|
1
|
1
|
1
|
1
|
5, 1
|
2.5
|
2.5
|
2.5
|
2.5
|
|||||||
|
Wire size mm
2
/AWG
|
≤4.17/11
|
≤4.17/11
|
≤4.17/11
|
≤4.17/11
|
≤0.785/18
≤4.17/11
|
≤2/14
|
≤2/14
|
≤0.785/18
|
≤0.785/18
|
|||||||
|
Connection mode
|
welding/screw crimping
|
|
|
|
|
welding
|
|
|
|
|||||||
