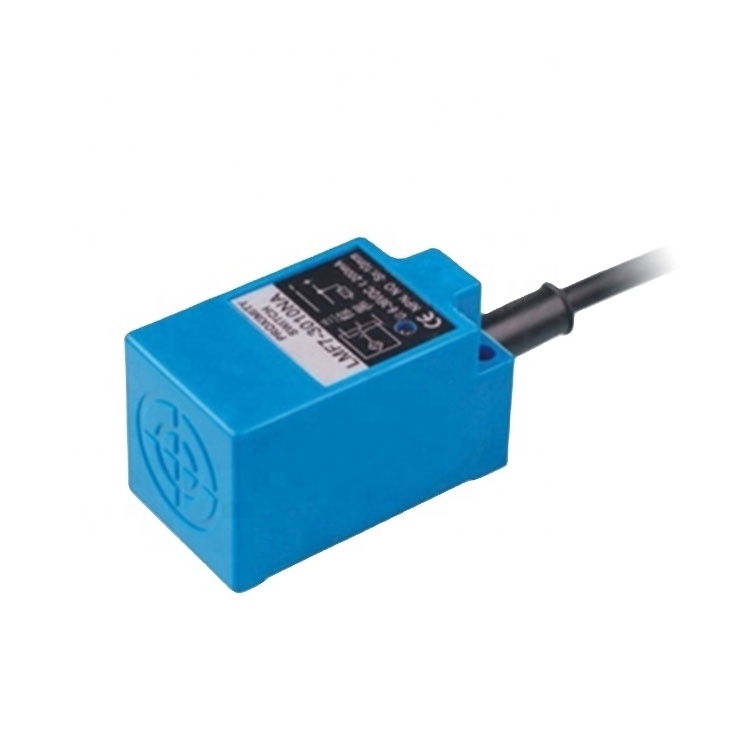

LMF7 220V Magnetic NO NC Output Inductive Infrared Proximity Sensor Switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $3.4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: EASY

Description:: Magnetic Proximity Sensor

Model Number:: LMF7

Place of Origin:: Zhejiang, China

Brand Name:: WINSTON/OEM

Theory:: Inductance Sensor

Output:: Analog SENSOR

Max Temperature::: -25℃ - +75℃

diameter::: 18mm

Shell Material::: Stainless Sheel

Slot pitch::: 5mm

protection grade::: IP67

Rated voltage::: 6-36V DC

OEM:: YES

ODM:: YES

Application:: Detection

Quick Details

Use:: inductance proximity sensor switch

Series:: LMF7

Features:: Magnetic Proximity Sensor

Mounting Type:: EASY

Description:: Magnetic Proximity Sensor

Model Number:: LMF7

Place of Origin:: Zhejiang, China

Brand Name:: WINSTON/OEM

Theory:: Inductance Sensor

Output:: Analog SENSOR

Max Temperature::: -25℃ - +75℃

diameter::: 18mm

Shell Material::: Stainless Sheel

Slot pitch::: 5mm

protection grade::: IP67

Rated voltage::: 6-36V DC

OEM:: YES

ODM:: YES

Application:: Detection

LMF7 220V Magnetic NO NC Output Inductive Infrared Proximity Sensor Switch

Main Products

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40

Product Description

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Technique parameter

DETECTION DISTANCE				10MM
Flush	DC 10-30V	NPN	NO	LMF7-3010NA
			NC	LMF7-3010NB
			NO+NC
		PNP	NO	LMF7-3010PA
			NC	LMF7-3010PB
			NO+NC
		two wire system	NO	LMF7-3010LA
			NC	LMF7-3010LB
	AC 90-250V	SCR Control-lable silicon	NO	LMF7-2010A
			NC	LMF7-2010B
			NO+NC
		Relay output
	DETECTION DISTANCE 15MM
Non-Flush	DC 10-30V	NPN	NO	LMF7-3015NA
			NC	LMF7-3015NB
			NO+NC	LMF7-3015NC
		PNP	NO	LMF7-3015PA
			NC	LMF7-3015PB
			NO+NC	LMF7-3015PC
		two wire system	NO	LMF7-3015LA
			NC	LMF7-3015LB
	AC 90-250V	SCR Control-lable silicon	NO	LMF7-2015A
			NC	LMF7-2015B
			NO+NC	LMF7-2015C
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				35351(A3 iron)
Repeated precision				0.05
DC/AC				200HZ/15HZ
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad				TL-N10M
