Quick Details
-
Model Number:
-
20231109001 Water Pipe
-
Specification:
-
OEM
-
Length:
-
OEM
-
Thickness:
-
OEM
-
Standard:
-
GB/T10002.1-2006
-
Delievery time:
-
15 working days
-
Color:
-
Transparent or customized
-
Application:
-
Water Supply
-
Surface:
-
smooth, no spot
-
Size:
-
Custom Size Accepted
-
Usage:
-
Delivery Water
-
Certification:
-
CE, TUV.
-
Item:
-
Different Size High Quality
-
Product name:
-
2 Inch 3 Inch Farm Garden Fish Tank Water Supply Pump Pvc Water Pipe
Quick Details
-
Processing Service:
-
Cutting, Extrusion
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Tide Piping
-
Model Number:
-
20231109001 Water Pipe
-
Specification:
-
OEM
-
Length:
-
OEM
-
Thickness:
-
OEM
-
Standard:
-
GB/T10002.1-2006
-
Delievery time:
-
15 working days
-
Color:
-
Transparent or customized
-
Application:
-
Water Supply
-
Surface:
-
smooth, no spot
-
Size:
-
Custom Size Accepted
-
Usage:
-
Delivery Water
-
Certification:
-
CE, TUV.
-
Item:
-
Different Size High Quality
-
Product name:
-
2 Inch 3 Inch Farm Garden Fish Tank Water Supply Pump Pvc Water Pipe

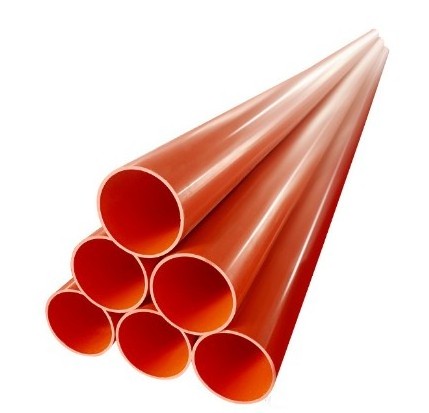

2 Inch 3 Inch Farm Garden Fish Tank Water Supply Pump Pvc Water Pipe
Product Description
| Product Name | 2 Inch 3 Inch Farm Garden Fish Tank Water Supply Pump Pvc Water Pipe | ||||||||||||||
| Standard: | GB//T10002.1--2006 | ||||||||||||||
| INCH | Wroking Pressure | 0.63MPa (PN6.3) | 0.8MPa (PN8) | 1.0MPa(PN10) | 1.25MPa (PN12.5) | 1.6MPa (PN16) | 2.0MPa (PN20) | 2.5MPa (PN25) | |||||||
| OD (MM) | WT (mm) | ID (MM) | WT (MM) | ID (MM) | WT (MM) | ID (MM) | WT (MM) | ID (MM) | WT (MM) | ID (MM) | WT (MM) | ID (MM) | WT (MM) | ID (MM) | |
| 1/2" | 20 | 2.0 | 16.00 | 2.5 | 15.00 | ||||||||||
| 3/4" | 25 | 2.0 | 21.00 | 2.3 | 20.40 | 2.5 | 20.00 | ||||||||
| 1" | 32 | 2.0 | 28.00 | 2.4 | 27.20 | 2.9 | 26.20 | 3.6 | 24.80 | ||||||
| 1-1/4" | 40 | 2.0 | 36.00 | 2.4 | 35.20 | 3.0 | 34.00 | 3.7 | 32.60 | 4.5 | 31.00 | ||||
| 1-1/2" | 50 | 2.0 | 46.00 | 2.4 | 45.20 | 3.0 | 44.00 | 3.7 | 42.60 | 4.6 | 40.80 | 5.6 | 38.80 | ||
| 2" | 63 | 2.0 | 59.00 | 2.5 | 58.00 | 3.0 | 57.00 | 3.8 | 55.40 | 4.7 | 53.60 | 5.8 | 51.40 | 7.1 | 48.80 |
| 2-1/2" | 75 | 2.3 | 70.40 | 2.9 | 69.20 | 3.6 | 67.80 | 4.5 | 66.00 | 5.6 | 63.80 | 6.9 | 61.20 | 8.4 | 58.20 |
| 3" | 90 | 2.8 | 84.40 | 3.5 | 83.00 | 4.3 | 81.40 | 5.4 | 79.20 | 6.7 | 76.60 | 8.2 | 73.60 | 10.1 | 69.80 |
| 4" | 110 | 2.7 | 104.60 | 3.4 | 103.20 | 4.2 | 101.60 | 5.3 | 99.40 | 6.6 | 96.80 | 8.1 | 93.80 | 10.0 | 90.00 |
| 5" | 125 | 3.1 | 118.80 | 3.9 | 117.20 | 4.8 | 115.40 | 6.0 | 113.00 | 7.4 | 110.20 | 9.2 | 106.60 | 11.4 | 102.20 |
| 5-1/2" | 140 | 3.5 | 133.00 | 4.3 | 131.40 | 5.4 | 129.20 | 6.7 | 126.60 | 8.3 | 123.40 | 10.3 | 119.40 | 12.7 | 114.60 |
| 6" | 160 | 4.0 | 152.00 | 4.9 | 150.20 | 6.2 | 147.60 | 7.7 | 144.60 | 9.5 | 141.00 | 11.8 | 136.40 | 14.6 | 130.80 |
| 7" | 180 | 4.4 | 171.20 | 5.5 | 169.00 | 6.9 | 166.20 | 8.6 | 162.80 | 10.7 | 158.60 | 13.3 | 153.40 | 16.4 | 147.20 |
| 8" | 200 | 4.9 | 190.20 | 6.2 | 187.60 | 7.7 | 184.60 | 9.6 | 180.80 | 11.9 | 176.20 | 14.7 | 170.60 | 18.2 | 163.60 |
| 9" | 225 | 5.5 | 214.00 | 6.9 | 211.20 | 8.6 | 207.80 | 10.8 | 203.40 | 13.4 | 198.20 | 16.6 | 191.80 | ||
| 10" | 250 | 6.2 | 237.60 | 7.7 | 234.60 | 9.6 | 230.80 | 11.9 | 226.20 | 14.8 | 220.40 | 18.4 | 213.20 | ||
| 12" | 280 | 6.9 | 266.20 | 8.6 | 262.80 | 10.7 | 258.60 | 13.4 | 253.20 | 16.6 | 246.80 | 20.6 | 238.80 | ||
| 13" | 315 | 7.7 | 299.60 | 9.7 | 295.60 | 12.1 | 290.80 | 15.0 | 285.00 | 18.7 | 277.60 | 23.2 | 268.60 | ||
| 14" | 355 | 8.7 | 337.60 | 10.9 | 333.20 | 13.6 | 327.80 | 16.9 | 321.20 | 21.1 | 312.80 | 26.1 | 302.80 | ||
| 16" | 400 | 9.8 | 380.40 | 12.3 | 375.40 | 15.3 | 369.40 | 19.1 | 361.80 | 23.7 | 352.60 | 29.4 | 341.20 | ||
| 18" | 450 | 11.0 | 428.00 | 13.8 | 422.40 | 17.2 | 415.60 | 21.5 | 407.00 | 26.7 | 396.60 | 33.1 | 383.80 | ||
| 20" | 500 | 12.3 | 475.40 | 15.3 | 469.40 | 19.1 | 461.80 | 23.9 | 452.20 | 29.7 | 440.60 | 36.8 | 426.40 | ||
| 22" | 560 | 13.7 | 532.60 | 17.2 | 525.60 | 21.4 | 517.20 | 26.7 | 506.60 | ||||||
| 24" | 630 | 15.4 | 599.20 | 19.3 | 591.40 | 24.1 | 581.80 | 30.0 | 570.00 | ||||||
| 28" | 710 | 17.4 | 675.20 | 21.8 | 666.40 | 27.2 | 655.60 | ||||||||
| 32" | 800 | 19.6 | 760.80 | 24.5 | 751.00 | 30.6 | 738.80 | ||||||||
